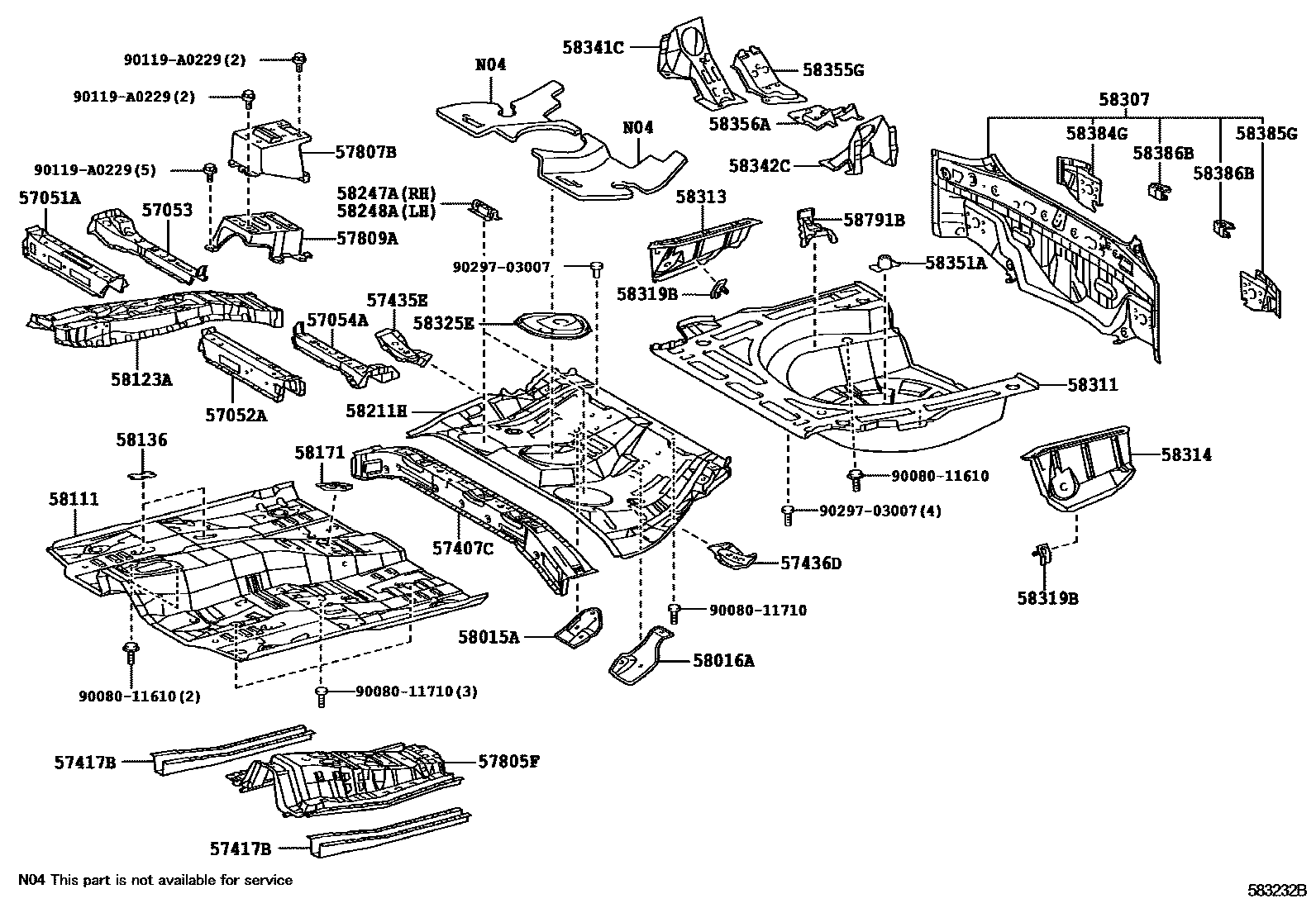

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57051A | Front floor right cross member sub-assembly | 57051-02020 |
| 57052A | Front floor left cross member sub-assembly | 57052-02020 |
| 57053 | Front floor right cross member reinforcement sub-assembly | 57053-02020 |
| 57054A | Front floor left cross member reinforcement sub-assembly | 57054-02020 |
| 57407C | Center floor No. 1 beam sub-assembly | 57407-02120 |
| 57417B | Front underfloor reinforcement | 57417-02090 · 57417-12120 |
| 57435E | Center floor right longitudinal beam | 57435-02030 |
| 57436D | Center floor left longitudinal beam | 57436-02030 |
| 57805F | No. 1 seat belt anchor reinforcement sub-assembly | 57805-02040 |
| 57807B | No. 2 seat belt anchor reinforcement sub-assembly | 57807-02020 |
| 57809A | No. 3 seat belt anchor reinforcement sub-assembly | 57809-02010 |
| 58015A | Right No. 3 seat belt anchor reinforcement sub-assembly | 58015-02070 |
| 58016A | Left No. 3 seat belt anchor reinforcement sub-assembly | 58016-02070 |
| 58111 | front floor pan | 58111-02920 |
| 58123A | shift lever bracket | 58013-02110 |
| 58136 | Front floor hole cover | 58136-06050 · 58136-33010 |
| 58171 | Parking brake base reinforcement | 58176-02020 |
| 58211H | central floor base | 58211-02270 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-02060 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-02060 |
| 58307 | Body lower back panel sub-assembly | 58307-02190 · 58307-02290 |
| 58311 | rear floor pan | 58311-02904 |
| 58313 | Rear floor right panel | 58313-02040 |
| 58314 | rear floor left panel | 58314-02040 |
| 58319B | Rear floor side panel bracket | 58319-02010 |
| 58325E | Rear floor access hole cover | 58325-02110 |
| 58341C | No. 1 right rear shock absorber mounting bracket | 58341-02030 |
| 58342C | No. 1 left rear shock absorber mounting bracket | 58342-02030 |
| 58351A | Spare tire rack bracket | 58351-33010 |
| 58355G | Floor right panel reinforcement | 58355-02010 |
| 58356A | Floor left panel reinforcement | 58356-02010 |
| 58384G | Body lower back panel upper right corner panel | 58384-02100 |
| 58385G | Body lower back panel upper left corner panel | 58385-02090 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-02030 |
| 58791B | jack bracket | 58791-02010 |
