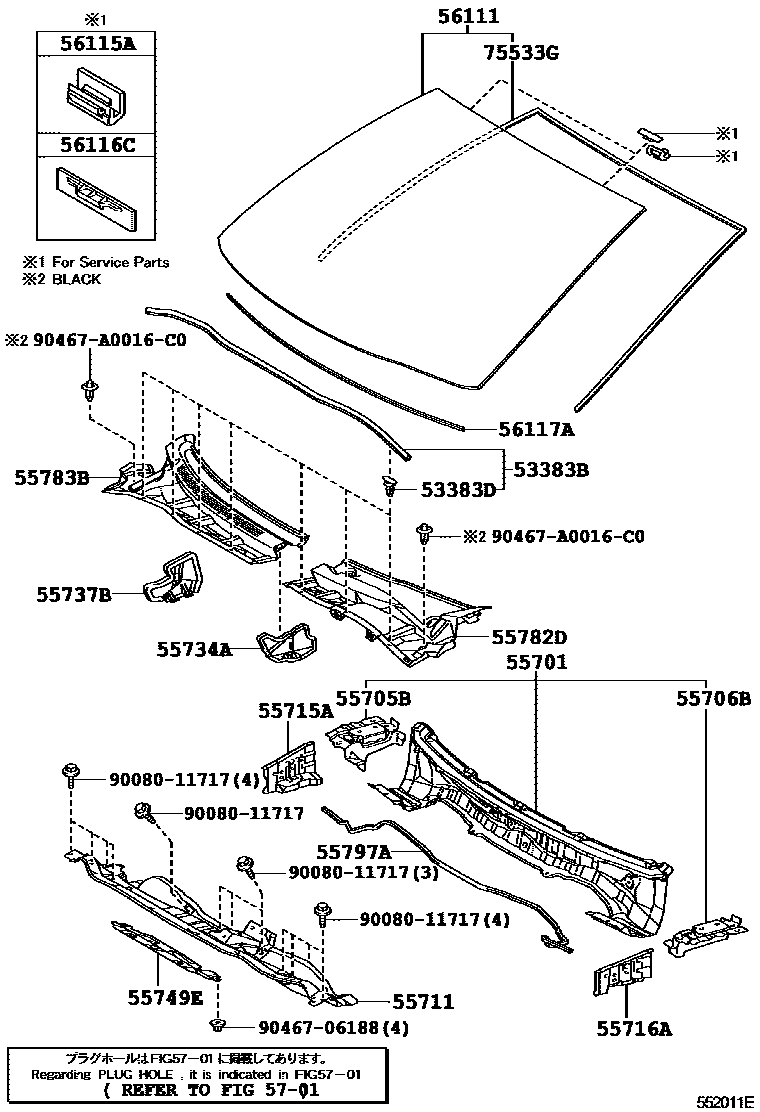

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02140 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 67867-12150 · 67868-02020 |
| 55701 | Front apron sub-assembly | 55700-02410 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-02080 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-02080 |
| 55711 | Front outer panel | 55701-02260 |
| 55715A | From cowl upper cover to fender right stay | 55715-02020 |
| 55716A | From cowl upper cover to fender left stay | 55716-02020 |
| 55734A | Right waterproof cover | 55734-02080 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-02060 |
| 55749E | Front wall upper cover No. 2 heat insulation panel | 55749-02050 |
| 55782D | Ventilation grille on left front apron | 55709-02300 |
| 55783B | Ventilation grille on center cowl No. 1 | 55708-02410 · 55708-02420 |
| 55797A | Front wall pumping device seal | 55797-02040 |
| 56111 | windshield | 56101-02470 · 56101-02640 · 56101-02730 · 56101-02740 · 56101-02810 · 56101-02820 |
| 56115A | Windshield block No. 1 | 56115-30120 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 90998-91004 |
| 75533G | Windshield outer protective strip | 75531-02150 |
