Toyota COROLLA 仪表板和手套箱 — Figure 5501

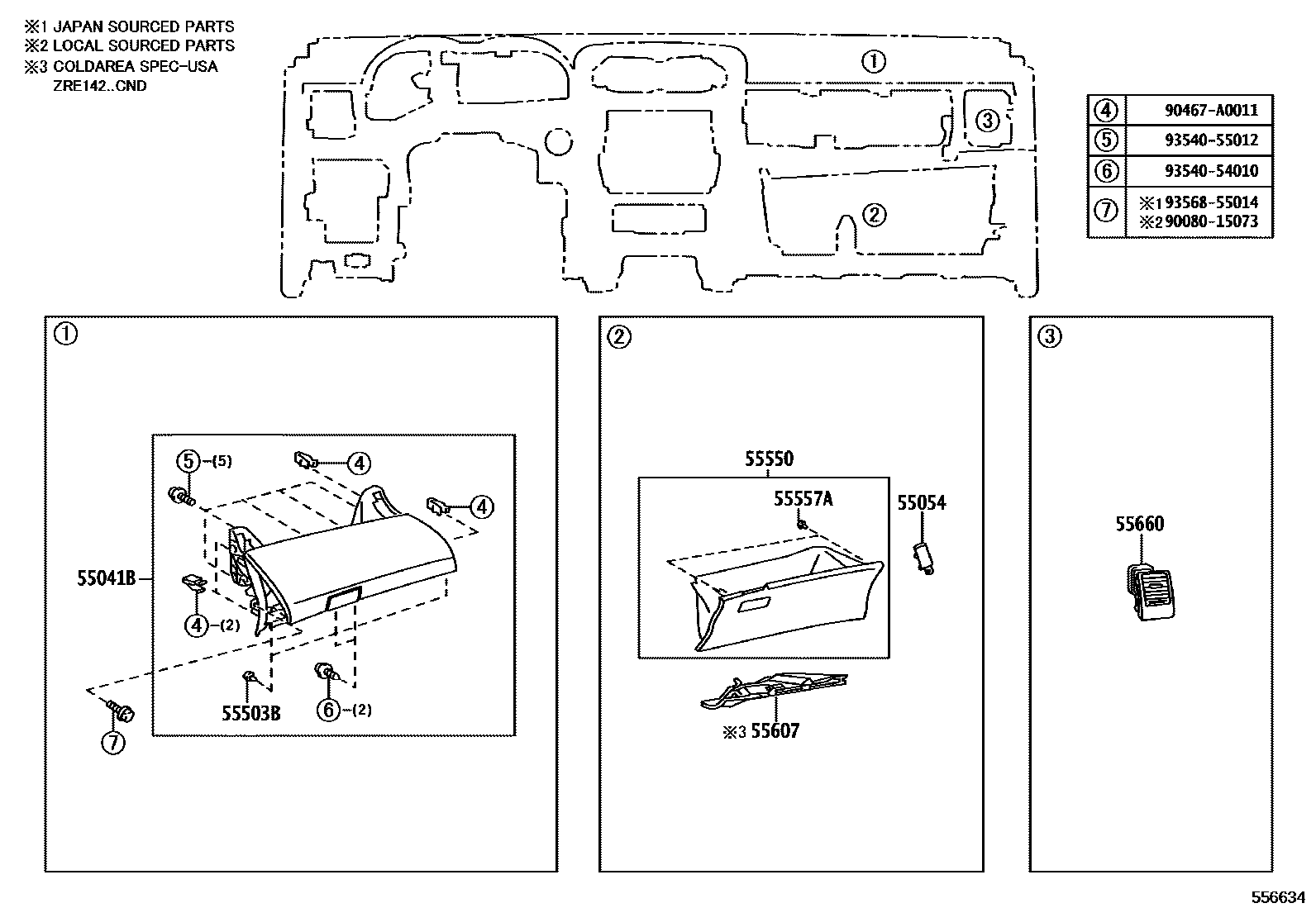

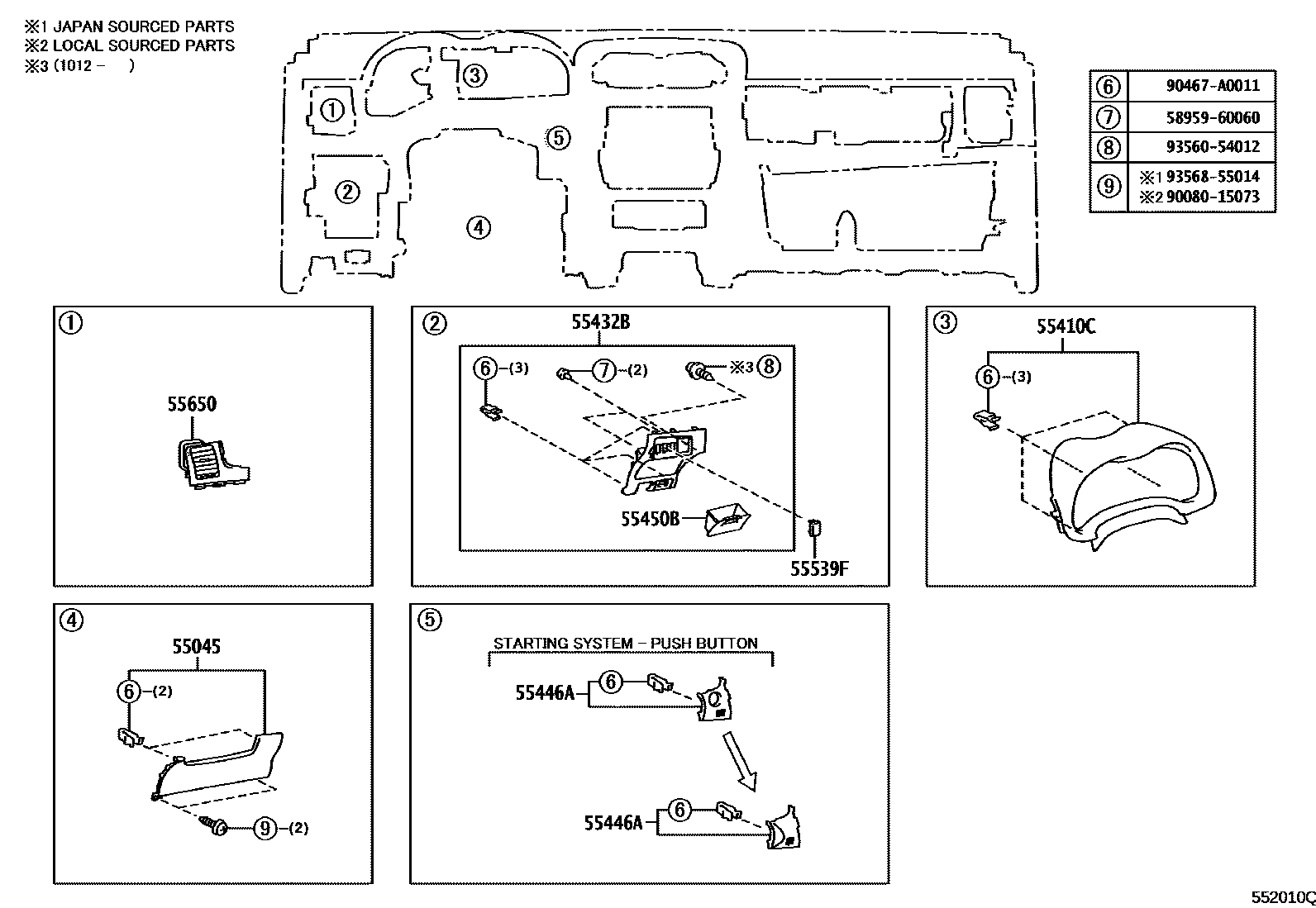

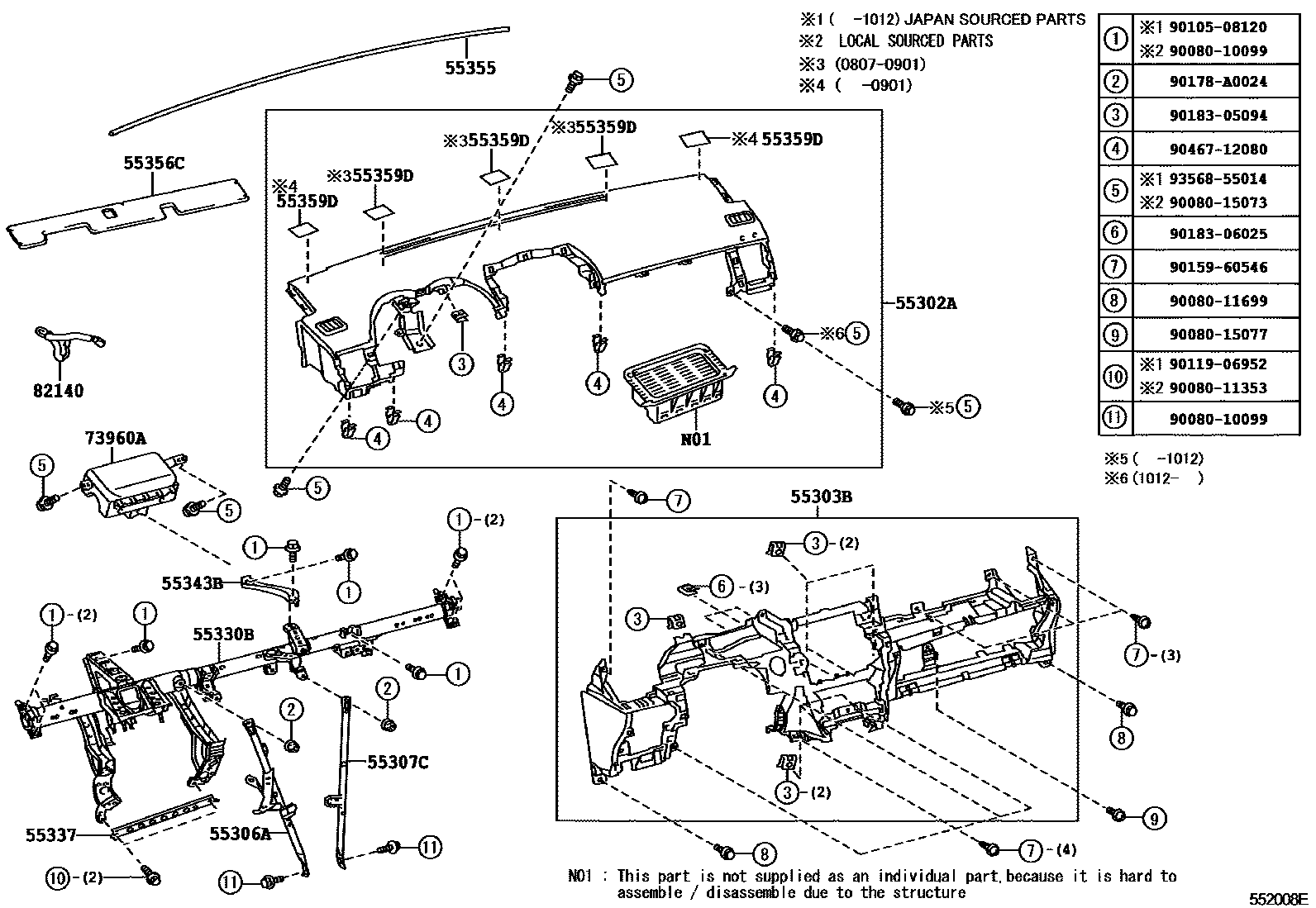

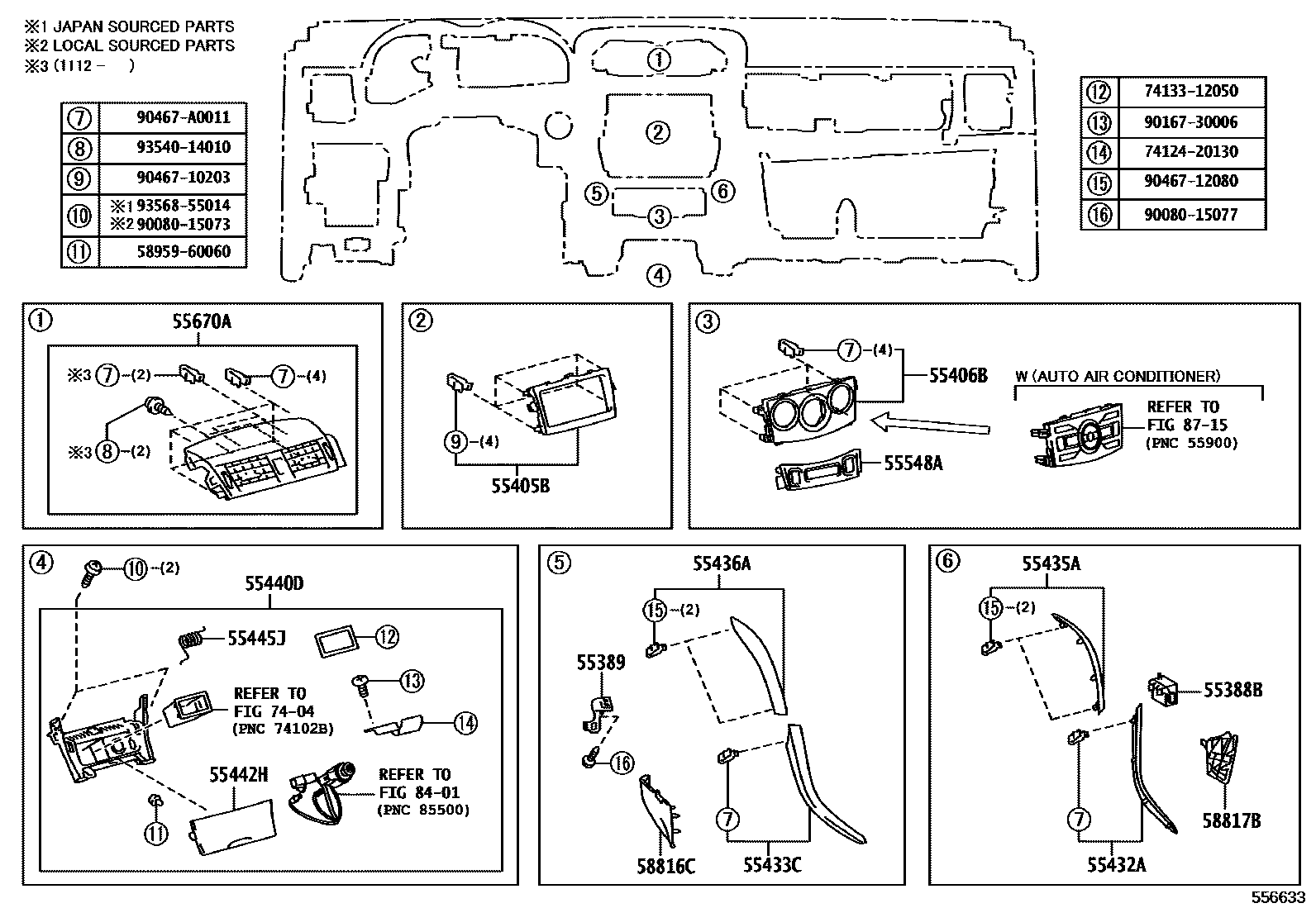

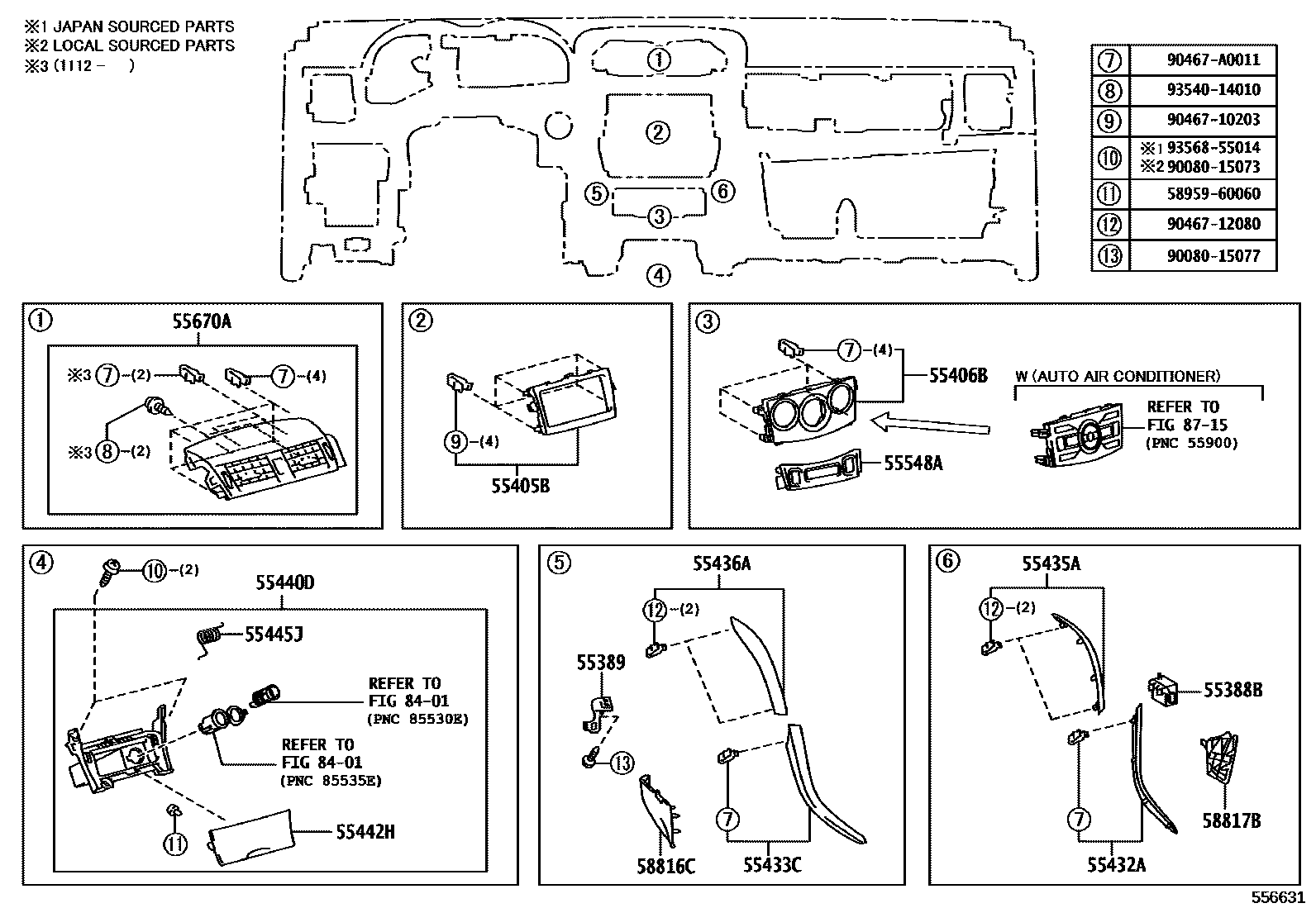

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 7 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-02030 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-02310 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-02180 |
| 55330B | Instrument panel reinforcement assembly | 55330-02510 |
| 55337 | Dashboard sub-reinforcement | 55337-02010 |
| 55343B | Center bracket (dashboard to cowl) | 55343-02130 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-02140 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-02120 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-02130 · 55359-12110 |
| 55388B | Mounting bracket on the right side of the console | 55388-02040 |
| 55389 | Console left side mounting bracket | 55389-02040 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-12B10 · 55405-12B20 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-02250 · 55406-02260 |
| 55432A | Dashboard lower right decorative panel | 55432-02220 |
| 55433C | Instrument panel lower left decorative panel | 55433-02140 |
| 55435A | Dashboard right end decorative panel | 55435-02220 |
| 55436A | Instrument panel left end decorative panel | 55436-02180 |
| 55440D | Dashboard storage box assembly | 55440-02110 · 55440-02120 · 55440-02130 · 55440-02350 · 55440-02360 · 55440-12100 · 55440-12140 · 55440-12190 · 55440-12300 · 55440-12350 |
| 55442H | Dashboard storage box cover | 55442-02170 · 55442-02180 · 55442-02190 · 55442-02460 · 55442-02470 · 55442-12140 · 55442-12150 · 55442-12210 · 55442-12410 · 55442-12470 |
| 55445J | Dashboard storage box spring | 55445-02140 · 55445-12130 |
| 55446A | No. 1 switch hole seat | 55446-02170 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55548A | Dashboard hole cover | 55548-02150 · 55548-02160 · 55548-02170 · 55548-02380 · 55548-02390 |
| 55557A | Glove box cover limit pad | 55557-53030 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-02130 |
| 55670A | Instrument panel central air register assembly | 55670-02190 · 55670-02191 · 55670-02200 · 55670-02201 · 55670-02210 · 55670-02211 · 55670-02340 · 55670-02350 · 55670-02360 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-02120 · 73960-02140 |
| 82140 | Instrument panel wiring harness assembly | 82140-02290 |
