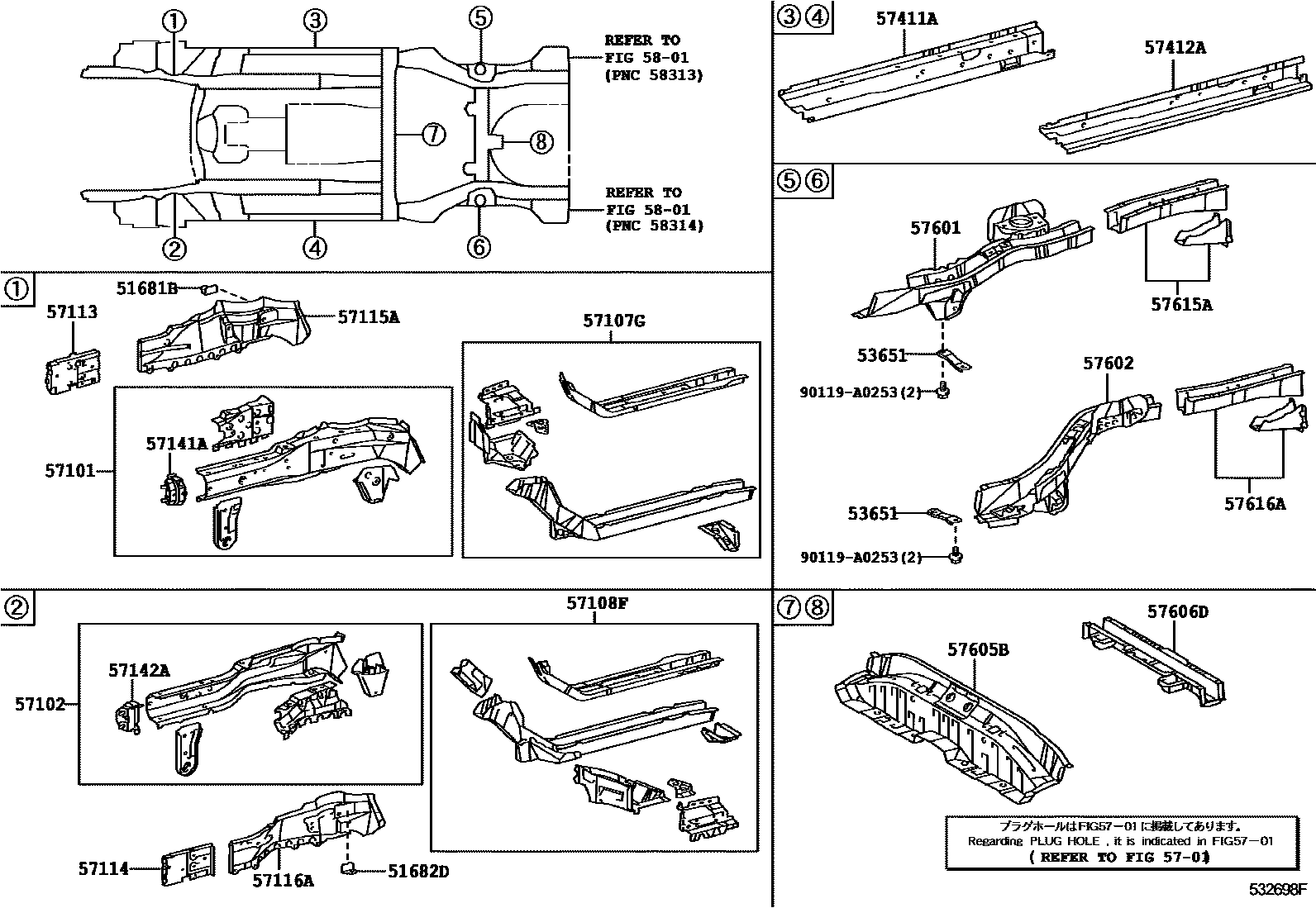

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681B | Right front wheel brake flexible hose support plate | 51681-02020 |
| 51682D | Left front wheel brake flexible hose support plate | 51682-02020 |
| 53651 | Rear floor longitudinal beam bracket | 53651-02020 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-02916 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-02921 · 57102-02922 |
| 57107G | Right front suspension cross member rear mounting bracket sub-assembly | 57107-02902 |
| 57108F | Left front suspension cross member rear mounting bracket sub-assembly | 57108-02902 |
| 57113 | Right front longitudinal beam extension | 57113-02100 · 57113-02101 |
| 57114 | Left front longitudinal beam extension | 57114-02100 · 57114-02101 |
| 57115A | Right front longitudinal beam outer panel | 57115-02030 |
| 57116A | Left front longitudinal beam outer panel | 57116-02030 · 57116-02031 |
| 57141A | Front bumper arm right bracket | 57013-02070 |
| 57142A | Front bumper arm left bracket | 57014-02070 |
| 57411A | Floor right inner longitudinal beam | 57401-02140 |
| 57412A | Floor left inner longitudinal beam | 57402-02140 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57611-02904 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57612-02904 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-02080 |
| 57606D | Rear shock absorber mounting beam sub-assembly | 57606-02160 · 57606-02270 |
| 57615A | Rear floor right rear longitudinal member | 57615-02918 · 57615-02920 |
| 57616A | Rear floor left rear longitudinal member | 57616-02907 |
