Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

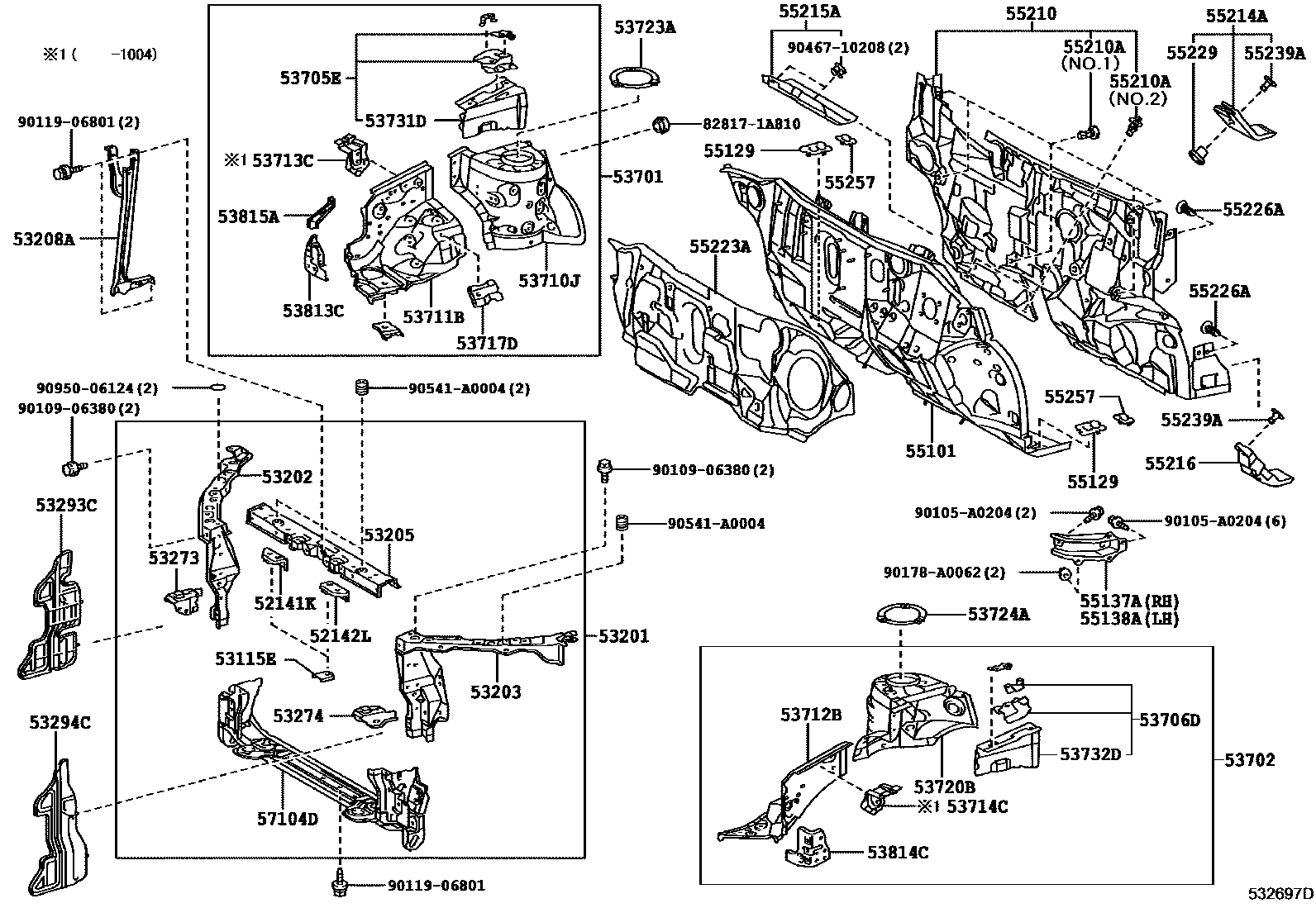

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141K | Front energy absorber right mounting bracket | 52141-02110 |
| 52142L | Front energy absorber left mounting bracket | 52142-02100 |
| 53115E | Radiator grille bracket | 61715-48011 |
| 53201 | Radiator bracket sub-assembly | 53201-02250 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02100 |
| 53203 | Radiator left bracket sub-assembly | 53203-02110 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02150 · 53205-02151 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02110 · 53208-02111 |
| 53273 | Front bumper arm right mounting bracket | 53273-02140 |
| 53274 | Front bumper arm left mounting bracket | 53274-02120 |
| 53293C | Radiator right baffle | 53293-02060 · 53293-02120 |
| 53294C | Radiator left baffle | 53294-02060 · 53294-02120 |
| 53701 | Right front fender fender sub-assembly | 53701-02190 · 53701-02191 |
| 53702 | Left front fender fender sub-assembly | 53702-02150 · 53702-02151 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02030 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02030 |
| 53710J | Right front fender fender assembly | 53710-02903 |
| 53711B | Right front fender front fender | 53711-02090 |
| 53712B | Left front fender front fender | 53712-02100 |
| 53713C | Right front fender fender front extension | 53713-02060 |
| 53714C | Left front fender fender front extension | 53714-02050 |
| 53717D | Right fender fender corner panel | 53717-02020 |
| 53720B | Left front fender fender assembly | 53720-02903 |
| 53723A | Front spring bracket right side reinforcement | 53723-02080 · 53723-02081 |
| 53724A | Front spring bracket left reinforcement | 53723-02080 · 53723-02081 |
| 53731D | Right front fender to cowl side upper beam | 53731-02060 |
| 53732D | Left front fender to cowl side upper beam | 53732-02050 |
| 53813C | Right front fender extension | 53813-02070 |
| 53814C | Left front fender extension | 53814-02070 |
| 53815A | Right front side panel reinforcement | 53815-02010 |
| 55101 | Front apron sub-assembly | 55101-02890 · 55101-02A00 |
| 55129 | Front panel hole cover | 55129-02060 · 55139-02050 |
| 55137A | Right side bracket (front wall to frame) | 55137-02060 |
| 55138A | Left side bracket (front wall to frame) | 55138-02050 |
| 55210 | Front wall insulation pad assembly | 55210-02290 · 55210-02291 |
| 55210A | clip | 90467-11122 · 90467-11127 |
| 55214A | No. 2 insulation pad for front wall panel | 55214-02060 · 55214-02100 |
| 55215A | No. 3 insulation pad for front wall panel | 55215-02060 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-02010 |
| 55223A | Front wall outer heat insulation pad | 55223-02210 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-48010 |
| 55239A | No. 3 insulation pad for front wall panel | 55239-48020 |
| 55257 | cowl opening cover | 55257-02010 |
| 57104D | Front cross member sub-assembly | 57104-02140 · 57104-02142 · 57104-02143 |
