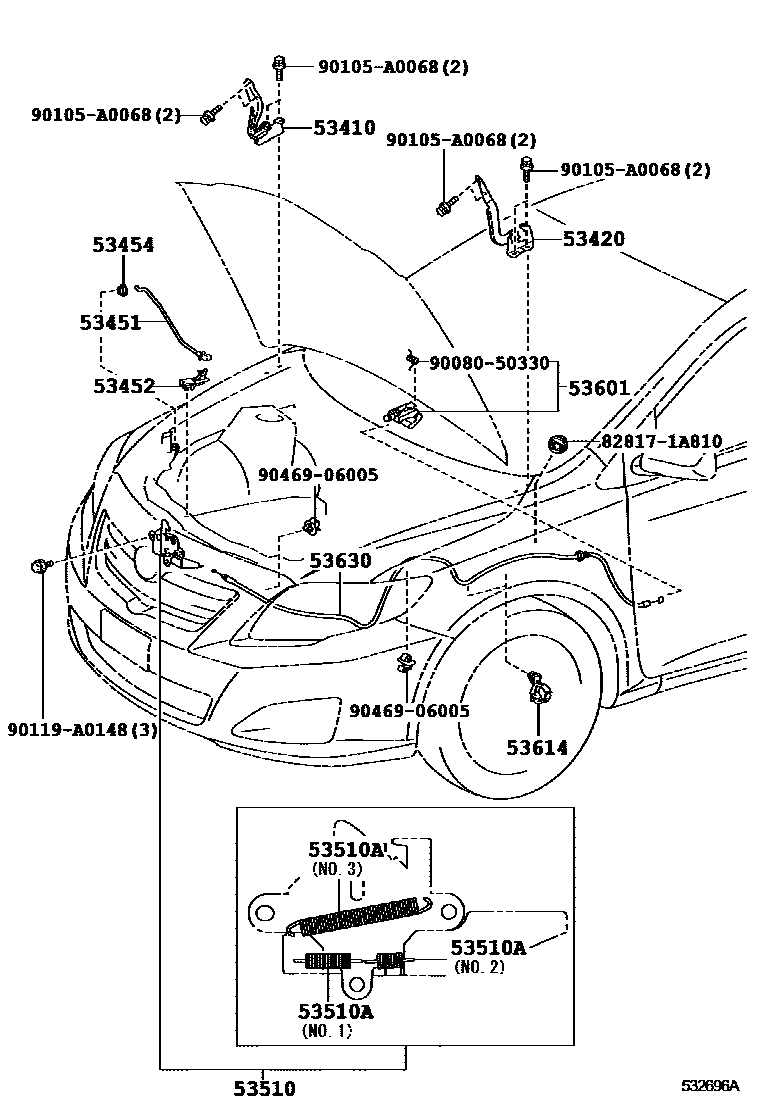

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-02170 |
| 53420 | Engine cover left hinge assembly | 53420-02170 |
| 53451 | Engine cover support rod | 53440-12100 · 53440-12170 |
| 53452 | Engine cover stay rod fixing | 53452-02090 |
| 53454 | Engine cover support rod clip | 53454-12040 |
| 53510 | Engine cover lock assembly | 53510-02330 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-12063 · 90506-18067 |
| 53614 | Engine hood lock control cable clip | 53614-12040 · 82711-1E350 |
| 53630 | Engine hood lock control cable assembly | 53630-02200 |
