Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 3 images and 6 PNC and OE references.

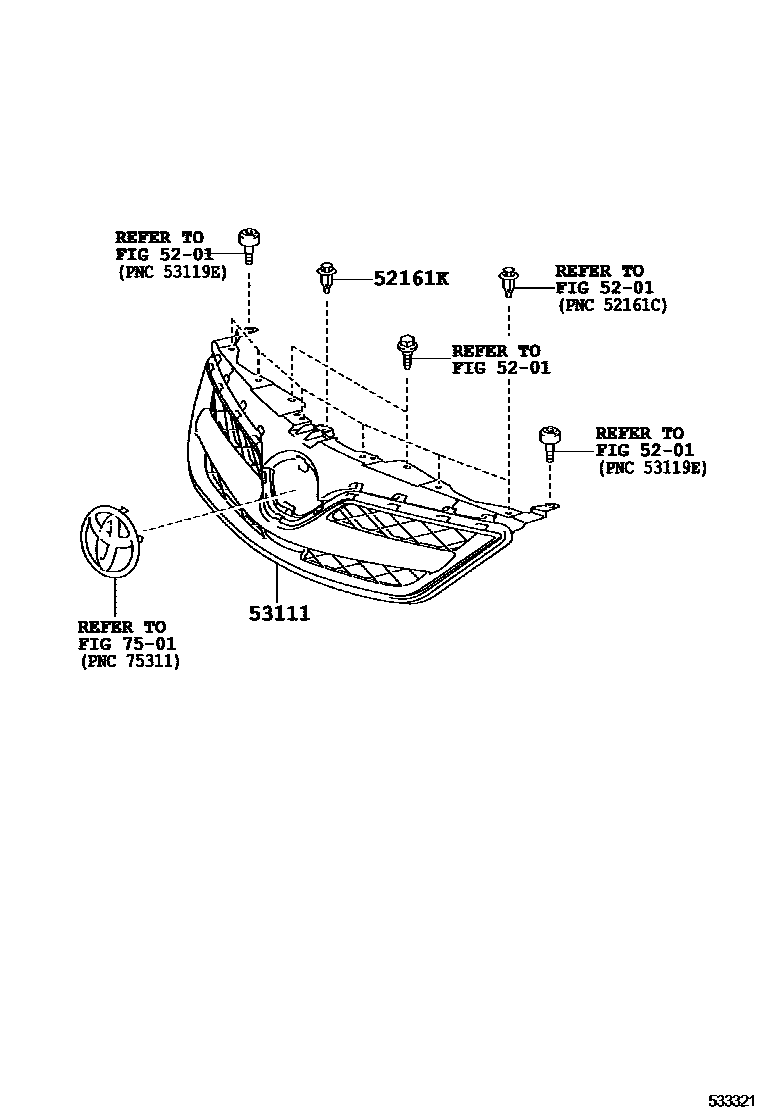

Toyota COROLLA radiator grille EPC diagram — 533321
radiator grille — 533321 (201012 – 999999)

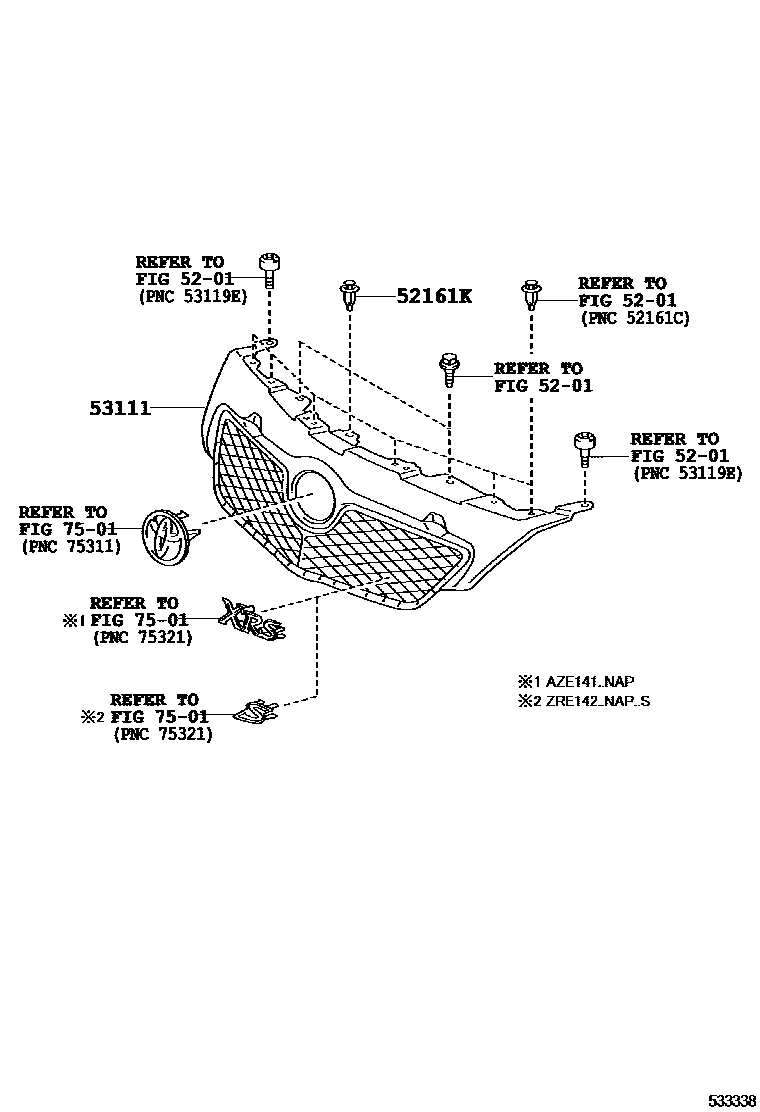

Toyota COROLLA radiator grille EPC diagram — 533338
radiator grille — 533338 (200801 – 201012)

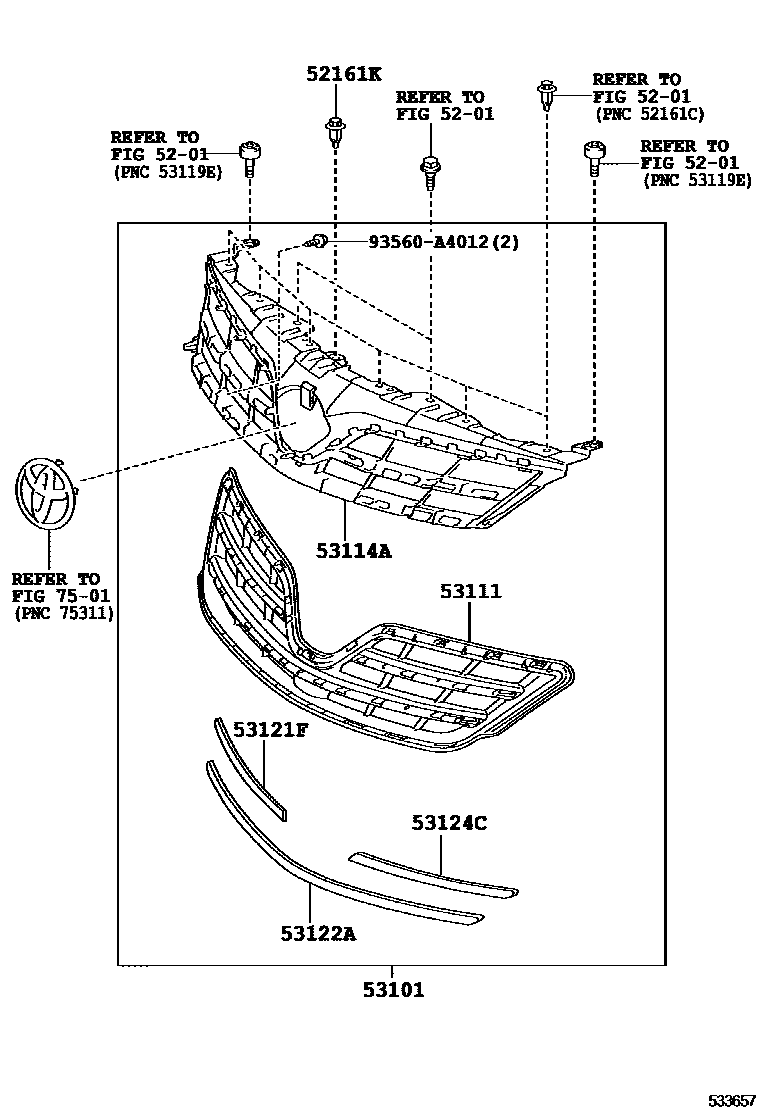

Toyota COROLLA radiator grille EPC diagram — 533657
radiator grille — 533657 (201208 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-02020
53111radiator grille53111-02450
53114Ainner radiator grille53114-02300
53121FRadiator grille upper right protective strip53121-02210
53122ARadiator grille lower protective strip53122-02140
53124CRadiator grille upper left protective strip53124-02200
