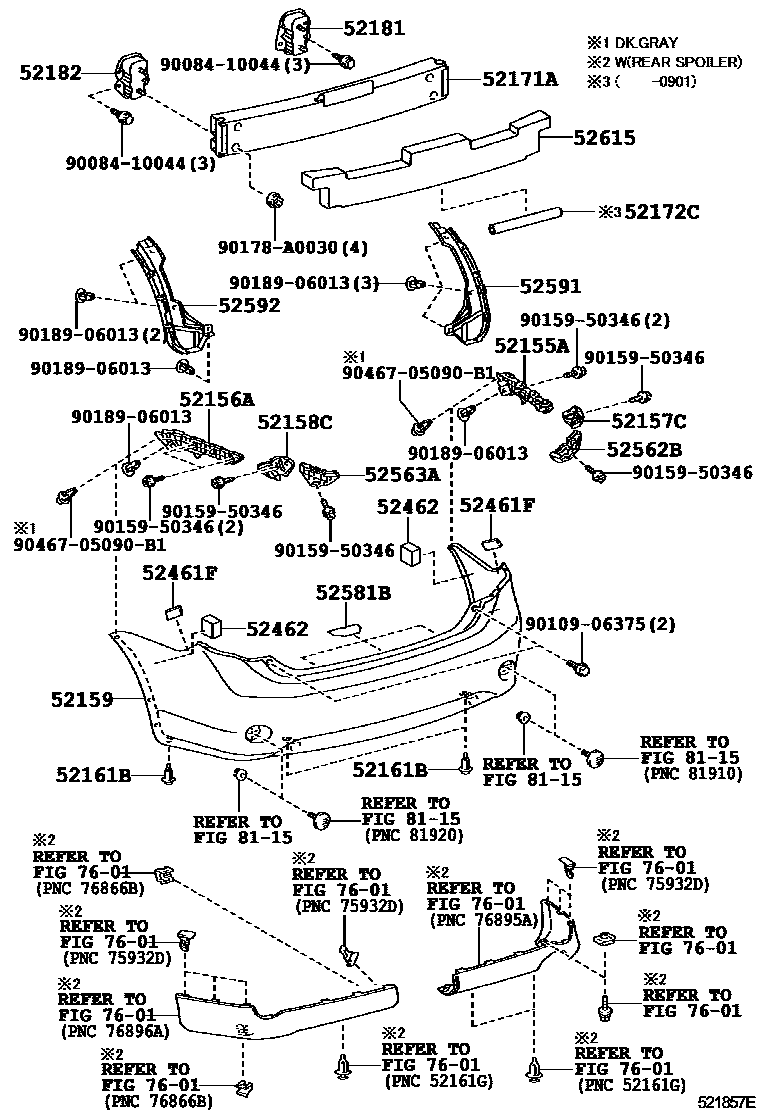

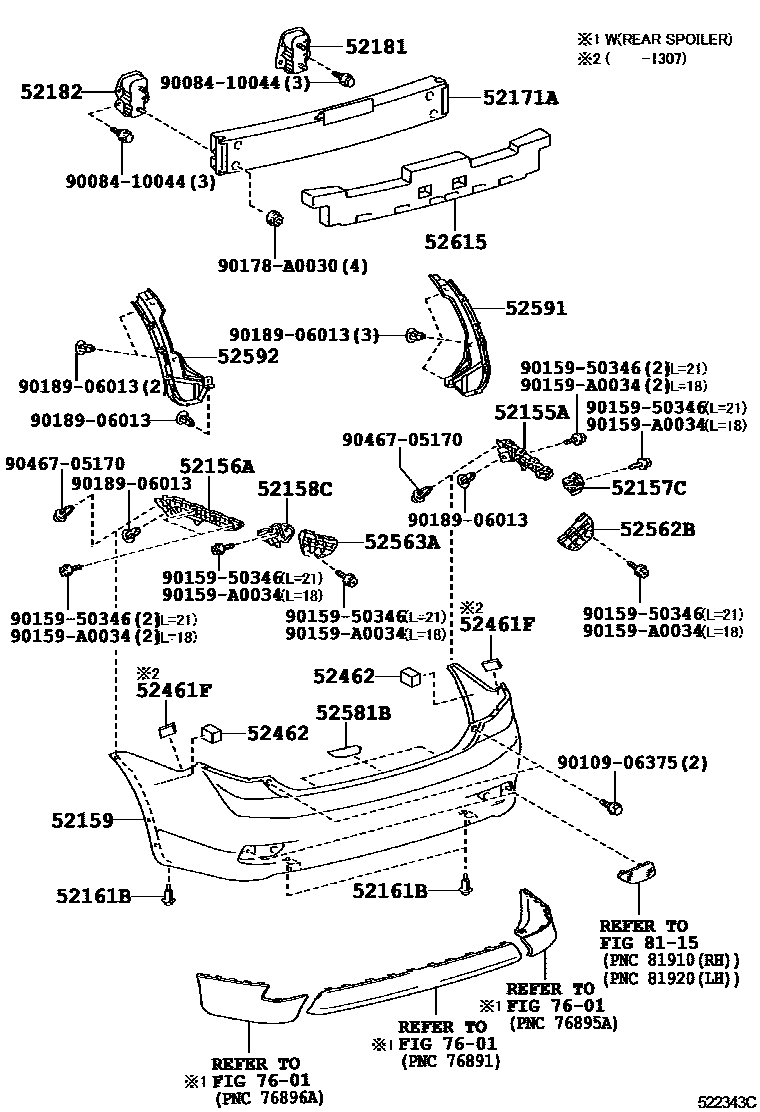

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-02110 |
| 52156A | Rear bumper left bracket | 52156-02100 |
| 52157C | Rear bumper No. 2 right side bracket | 52157-02020 |
| 52158C | Rear bumper No. 2 left side bracket | 52158-02010 |
| 52159 | rear bumper cover | 52159-02963 · 52159-02964 · 52159-02977 · 52159-02978 |
| 52161B | Rear bumper insert | 52161-02020 |
| 52171A | Rear bumper reinforcement No. 1 | 52023-02130 |
| 52172C | Rear bumper center reinforcement | 52172-AA010 |
| 52181 | Rear bumper right arm | 52181-02070 |
| 52182 | Rear bumper left arm | 52182-02040 |
| 52461F | rear bumper lining | 52461-02040 |
| 52462 | Rear bumper right side lining | 52462-02070 · 52462-02100 |
| 52562B | Rear bumper upper right fixing bracket | 52562-02050 · 52562-02080 |
| 52563A | Rear bumper upper left fixing bracket | 52563-02060 · 52563-02090 |
| 52581B | rear bumper protector | 52581-02020 |
| 52591 | Rear bumper right seal | 52591-02180 |
| 52592 | Rear bumper left seal | 52592-02170 |
| 52615 | Rear bumper energy absorber | 52615-02091 · 52615-02150 |
