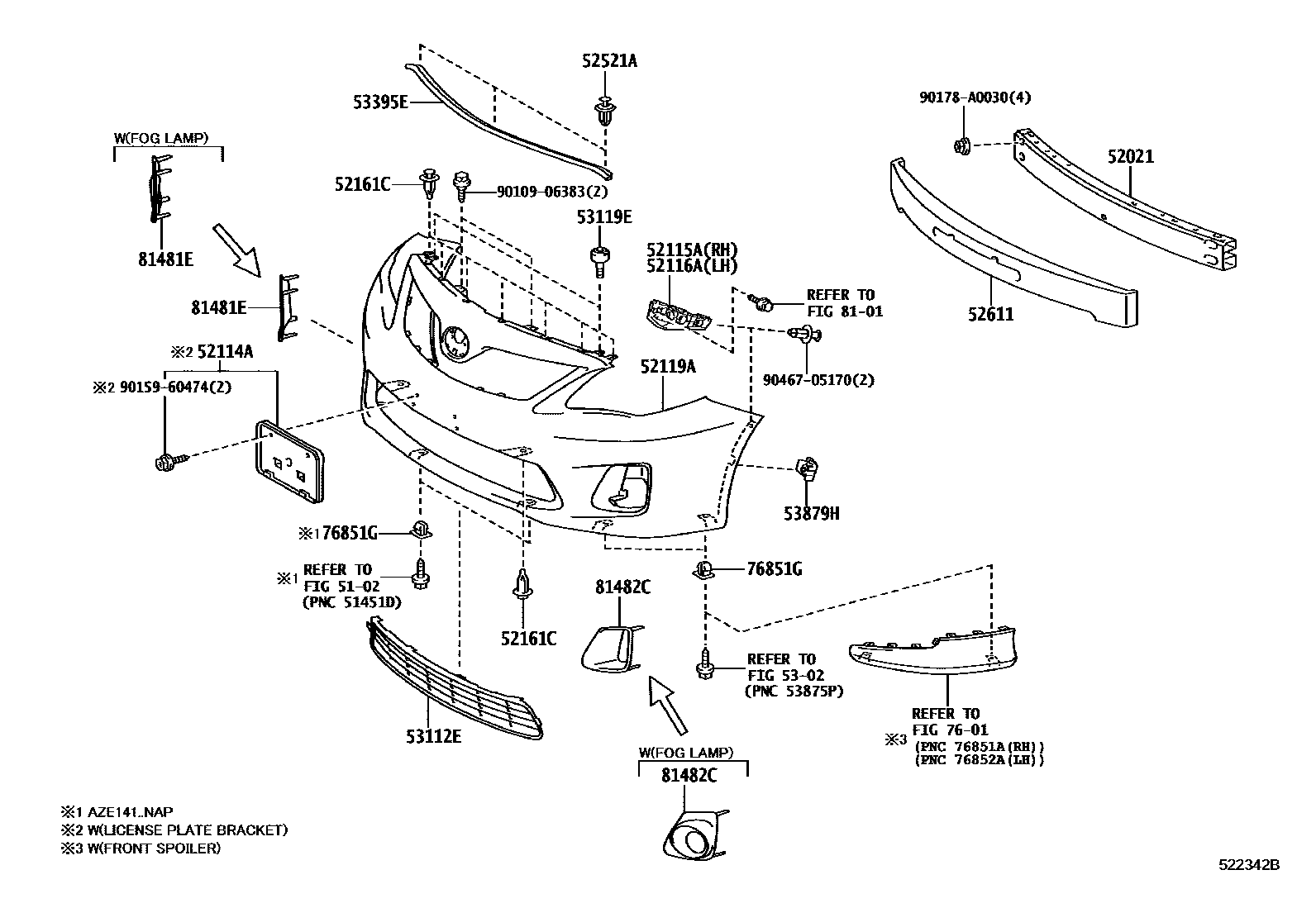

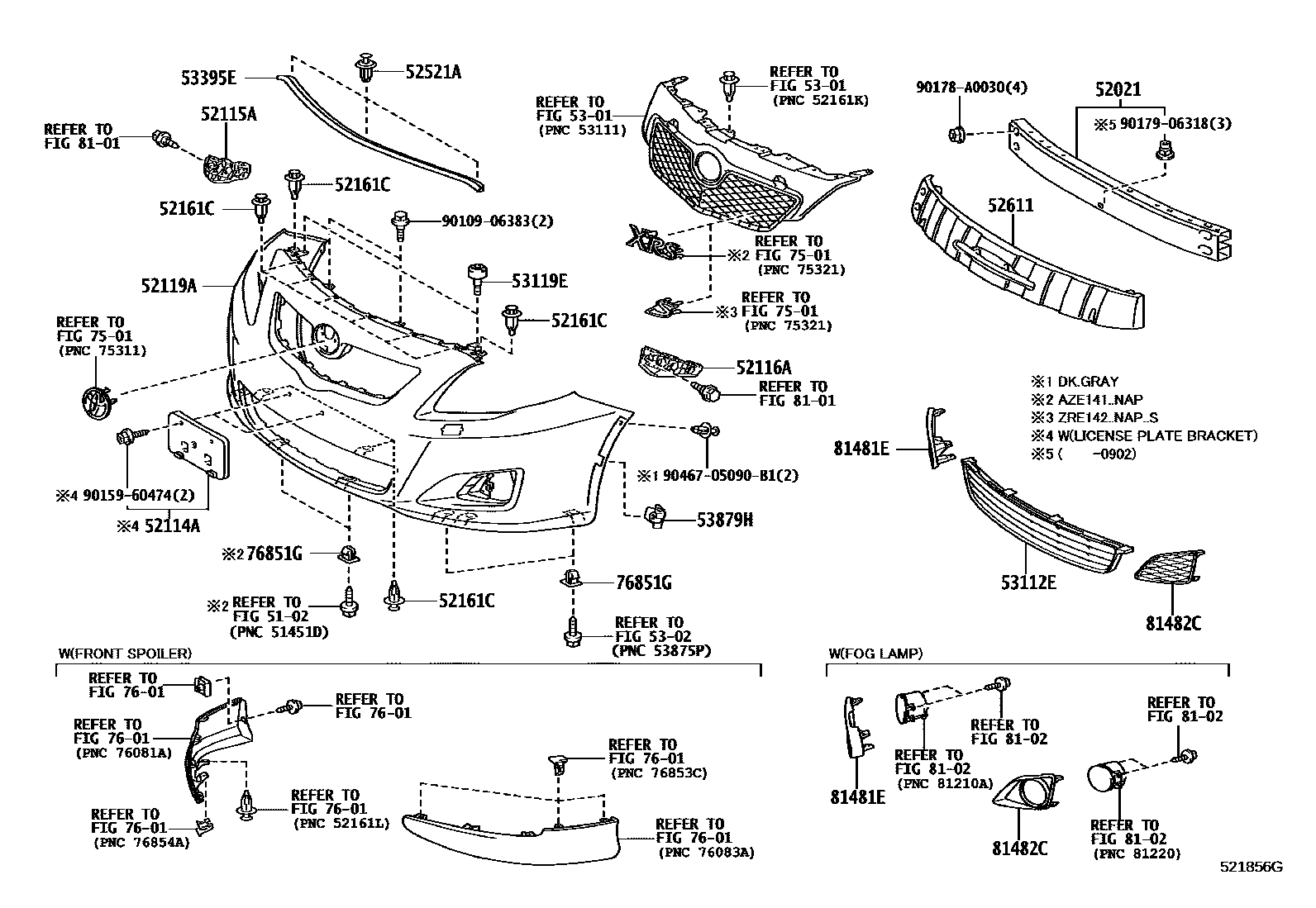

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02150 · 52021-02151 |
| 52114A | Front bumper extension mounting bracket | 52114-02040 · 52114-02060 |
| 52115A | Front bumper right side bracket | 52115-02130 · 52115-02170 |
| 52116A | Front bumper left bracket | 52116-02130 · 52116-02170 |
| 52119A | front bumper cover | 52119-02989 · 52119-02990 · 52119-03901 · 52119-03902 |
| 52161C | front bumper insert | 52161-02020 |
| 52611 | front bumper energy absorber | 52611-02170 · 52611-02250 |
| 53112E | No. 1 radiator lower grille | 53112-02120 · 53112-02280 |
| 53119E | Radiator grille protector | 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-02040 |
| 53879H | Front fender lining fixing parts | 53879-02070 · 53879-58010 |
| 76851G | RONDELLE, VIS, NO.1 | 90189-06193 |
| 81481E | Right fog light cover | 81481-02090 · 81481-02100 · 81481-02200 · 81481-02210 |
| 81482C | Left fog light cover | 81482-02080 · 81482-02090 · 81482-02190 · 81482-02200 |
