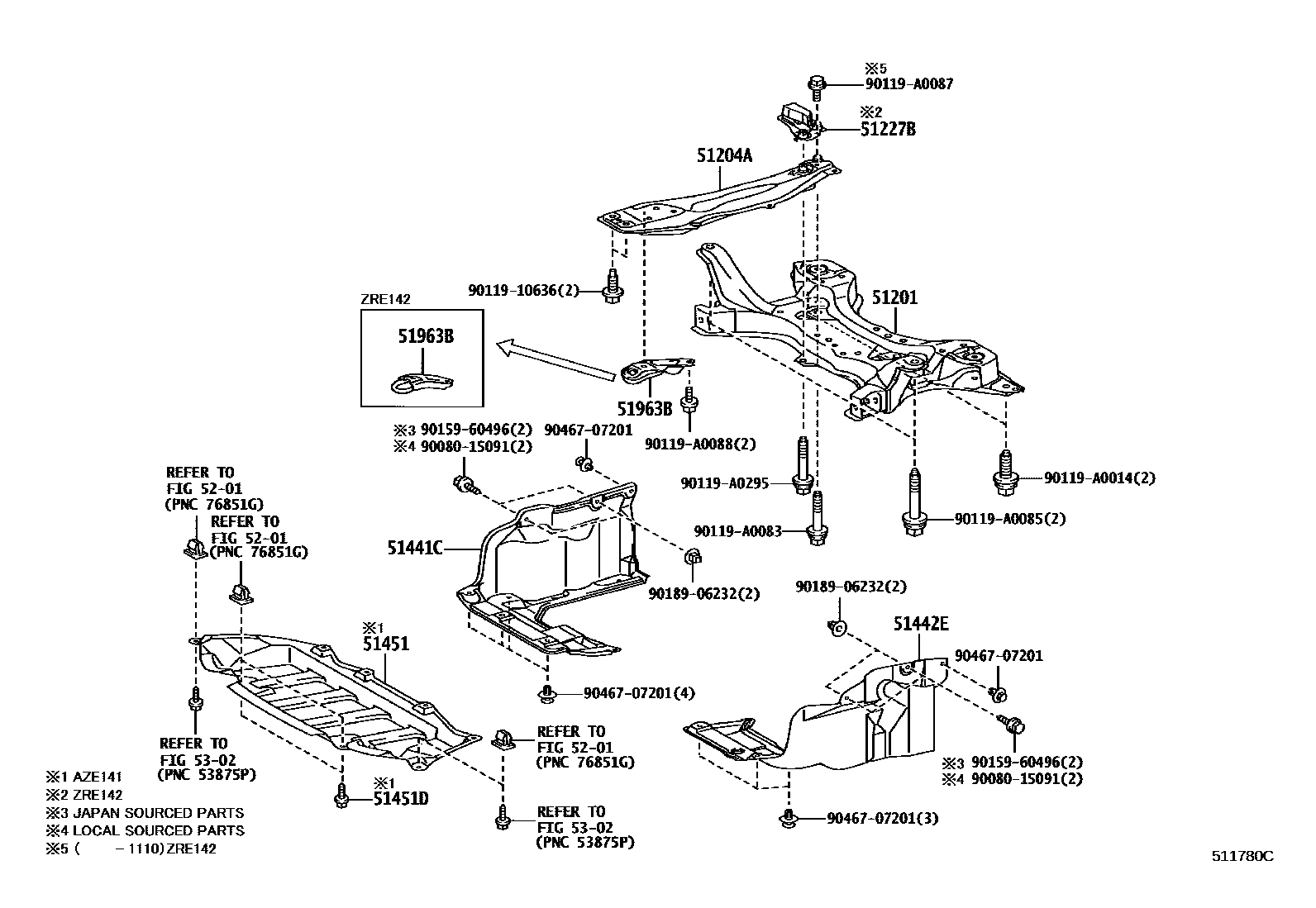

Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102
Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-02150 · 51201-02151 |
| 51204A | Engine center mount beam sub-assembly | 51204-02070 · 51204-02071 · 51204-02080 |
| 51227B | Front suspension beam dynamic damper | 51227-02060 |
| 51441C | Engine right bottom cover | 51441-02260 |
| 51442E | No. 2 engine bottom cover | 51442-02320 · 51442-02330 |
| 51451 | Engine No. 4 right side bottom cover | 51451-02040 |
| 51451D | VIS, NO.1 | 90159-60488 |
| 51963B | Right front transport hook | 51960-02100 · 51963-02170 |
