Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

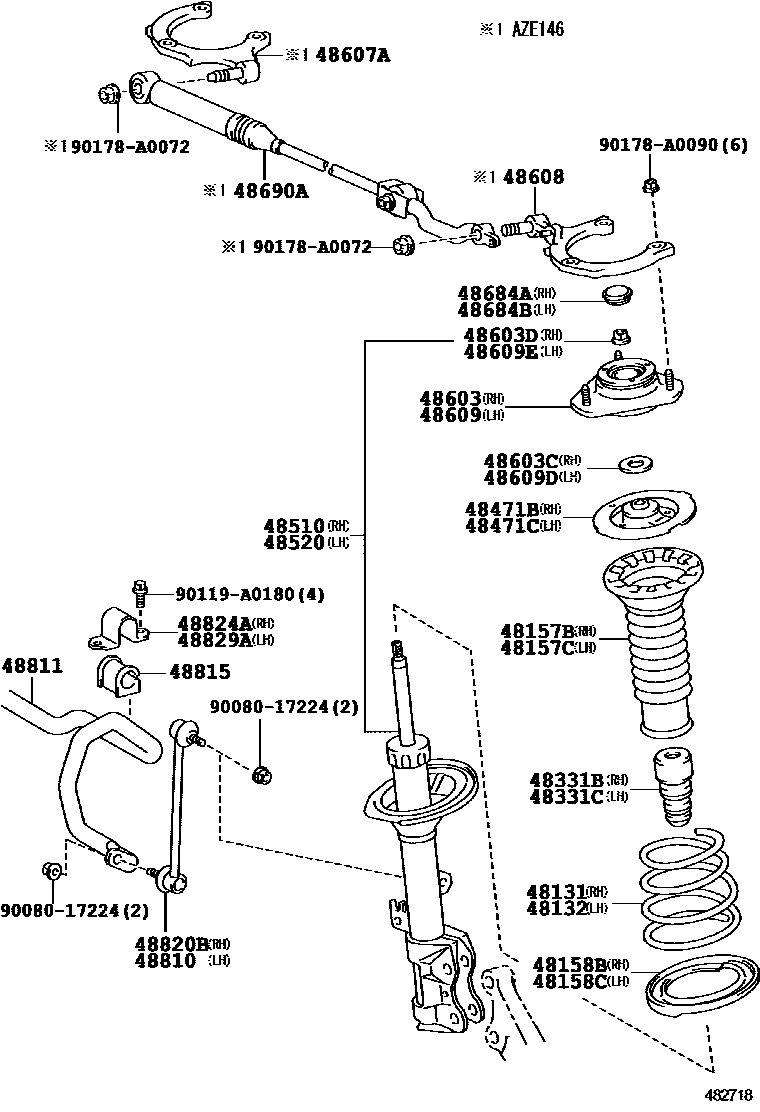

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02D00 · 48131-02D10 · 48131-02E10 · 48131-02E30 · 48131-02E50 · 48131-02E70 · 48131-02F00 · 48131-02F10 · 48131-02F20 · 48131-02K00 · 48131-02K20 |
| 48132 | Left front coil spring | 48131-02D00 · 48131-02D10 · 48131-02E10 · 48131-02E30 · 48131-02E50 · 48131-02E70 · 48131-02F00 · 48131-02F10 · 48131-02F20 · 48131-02K00 · 48131-02K20 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02060 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02060 |
| 48331B | Right front spring buffer block | 48331-AB010 |
| 48331C | Left front spring buffer block | 48331-AB010 |
| 48471B | Front coil spring upper right seat | 48044-02120 |
| 48471C | Front coil spring upper left seat | 48044-02120 |
| 48510 | Right front shock absorber assembly | 48510-09A71 · 48510-09T70 · 48510-09T90 · 48510-09U00 · 48510-8Z010 · 48510-8Z161 |
| 48520 | Left front shock absorber assembly | 48520-09A71 · 48520-09M00 · 48520-09M20 · 48520-09M30 · 48520-09T60 · 48520-8Z049 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02190 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48603D | Nut (for front mount to right front shock absorber) | 90080-17217 |
| 48607A | Right support rod bracket sub-assembly | 48607-12060 |
| 48608 | Left support rod bracket sub-assembly | 48608-12060 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02190 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48609E | Nut (for front mount to left front shock absorber) | 90080-17217 |
| 48684A | Right front suspension support dust cover | 48684-02020 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-02020 · 48684-52010 |
| 48690A | Suspension support cover damper assembly | 48690-12080 |
| 48810 | Left front stabilizer bar link assembly | 48820-02030 |
| 48811 | front stabilizer bar | 48811-AB011 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02100 |
| 48820B | Right front stabilizer bar link assembly | 48820-02030 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-06020 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-06020 |
