Toyota COROLLA 制动配管和卡箍 — Figure 4708

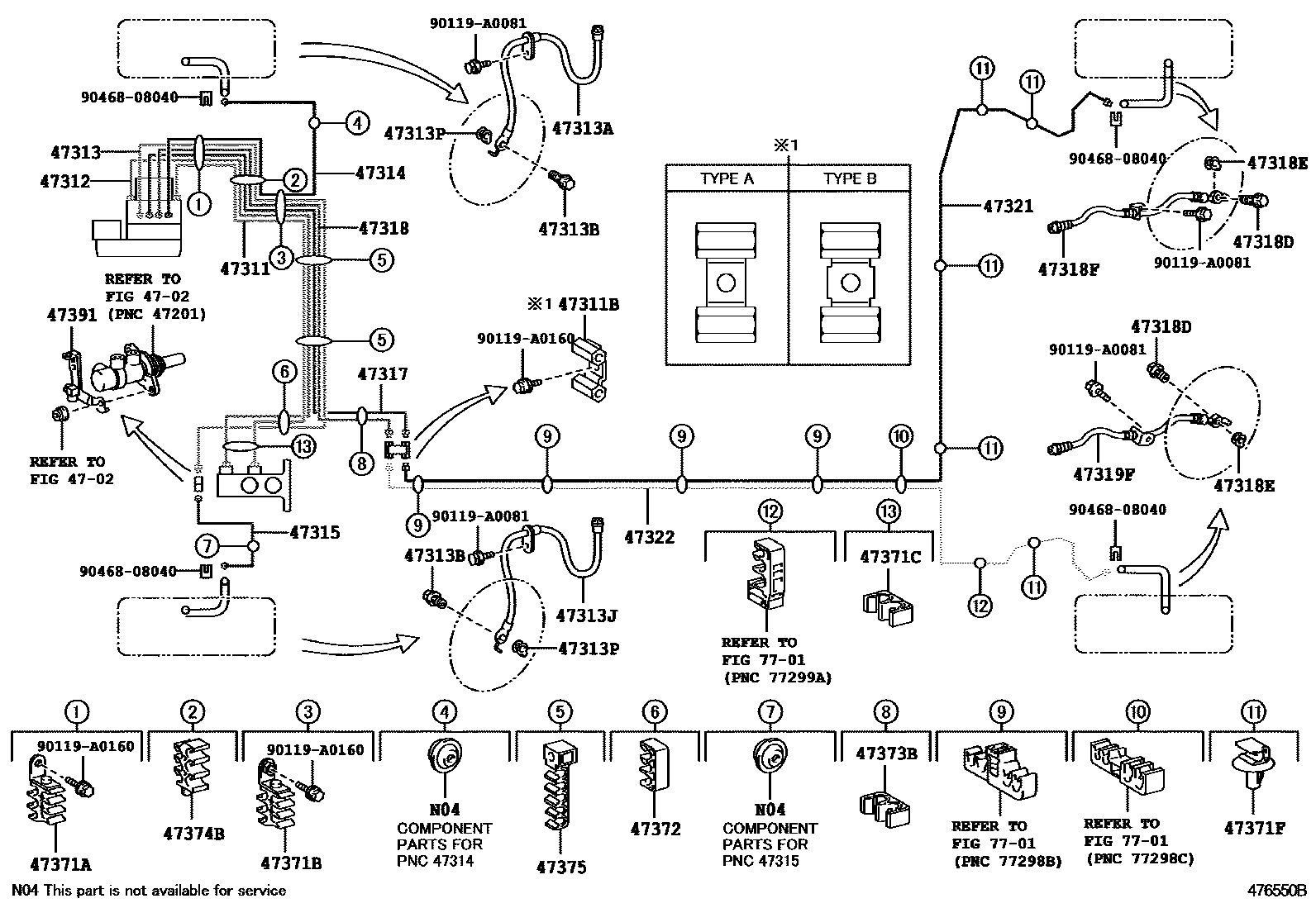

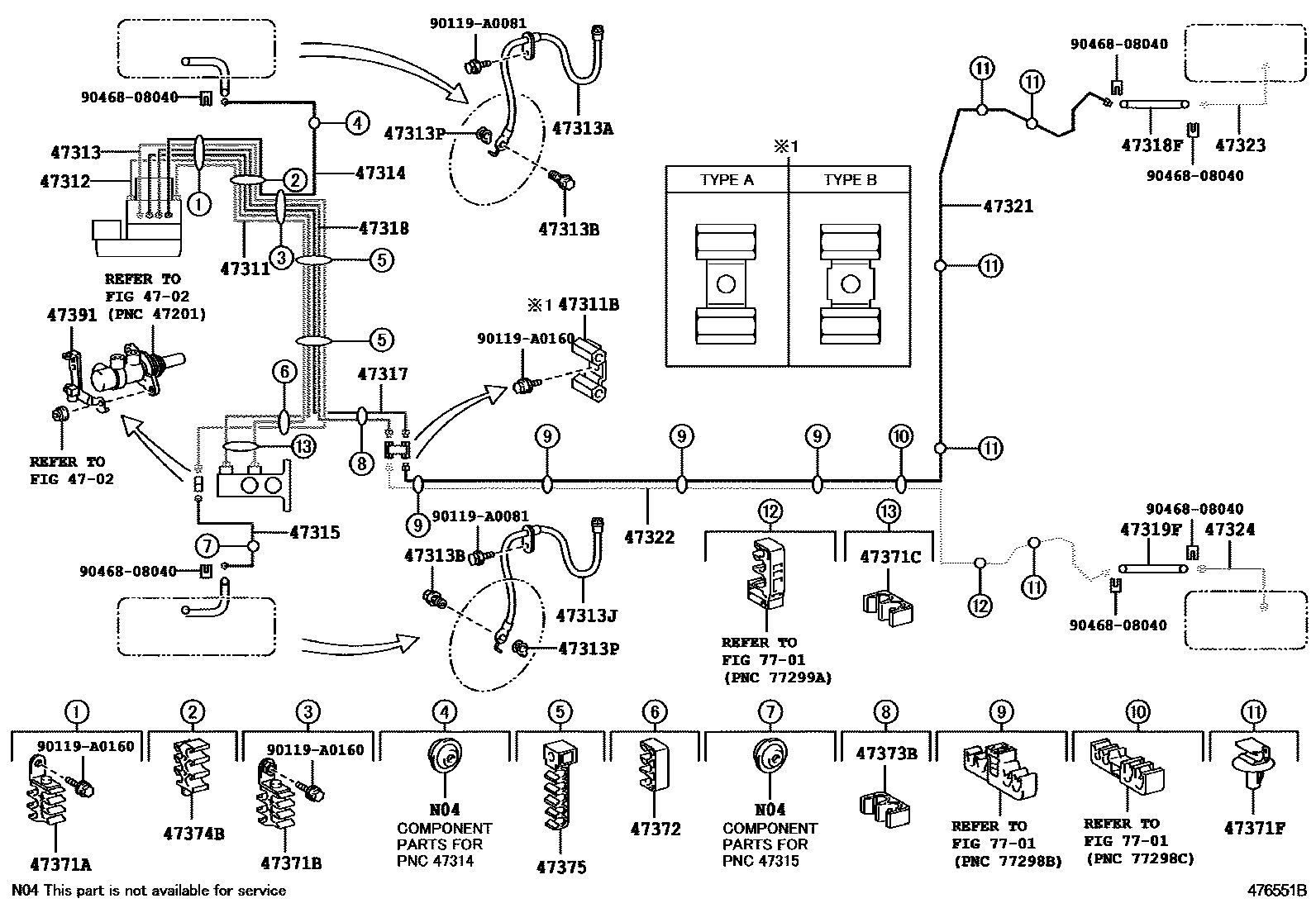

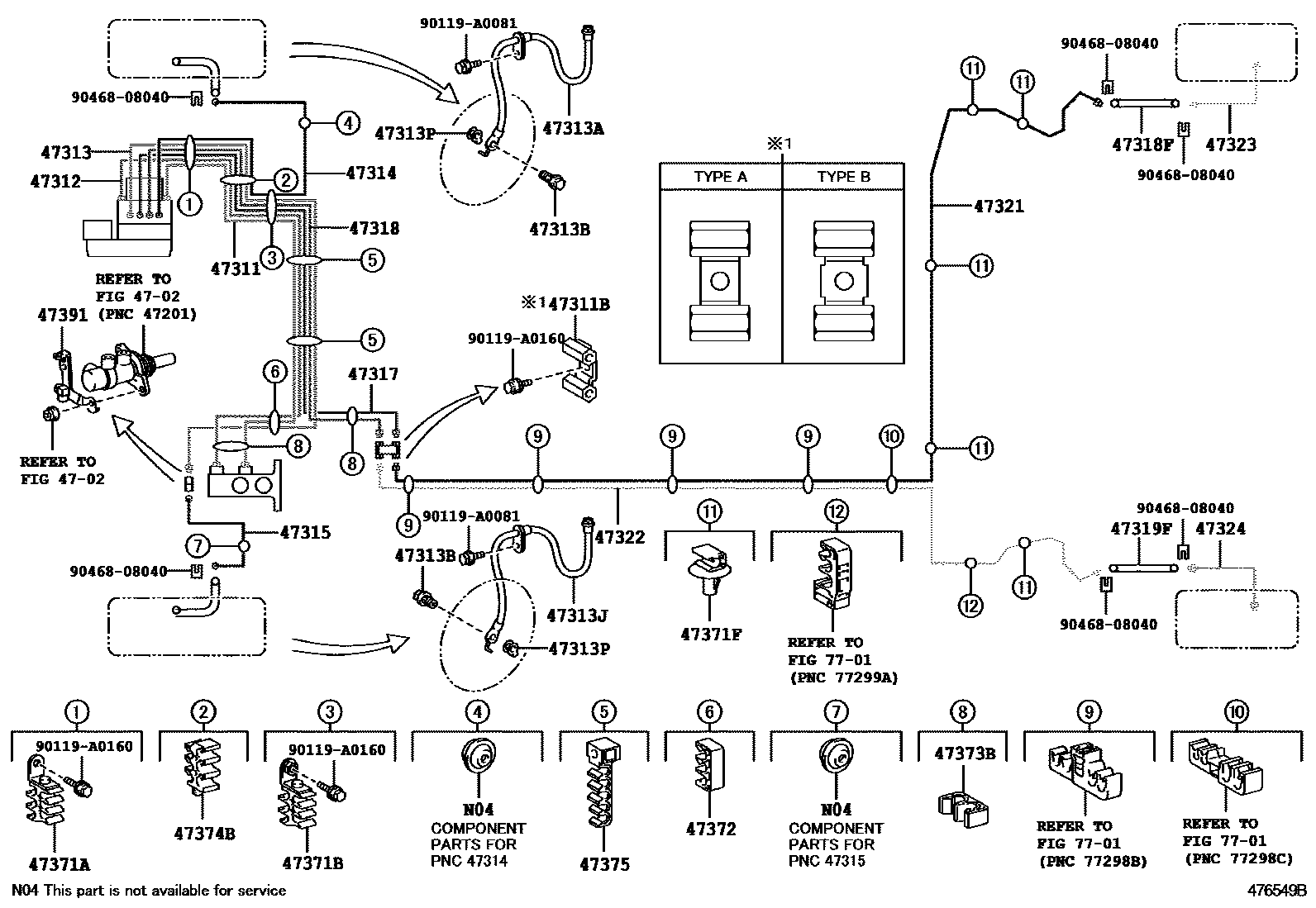

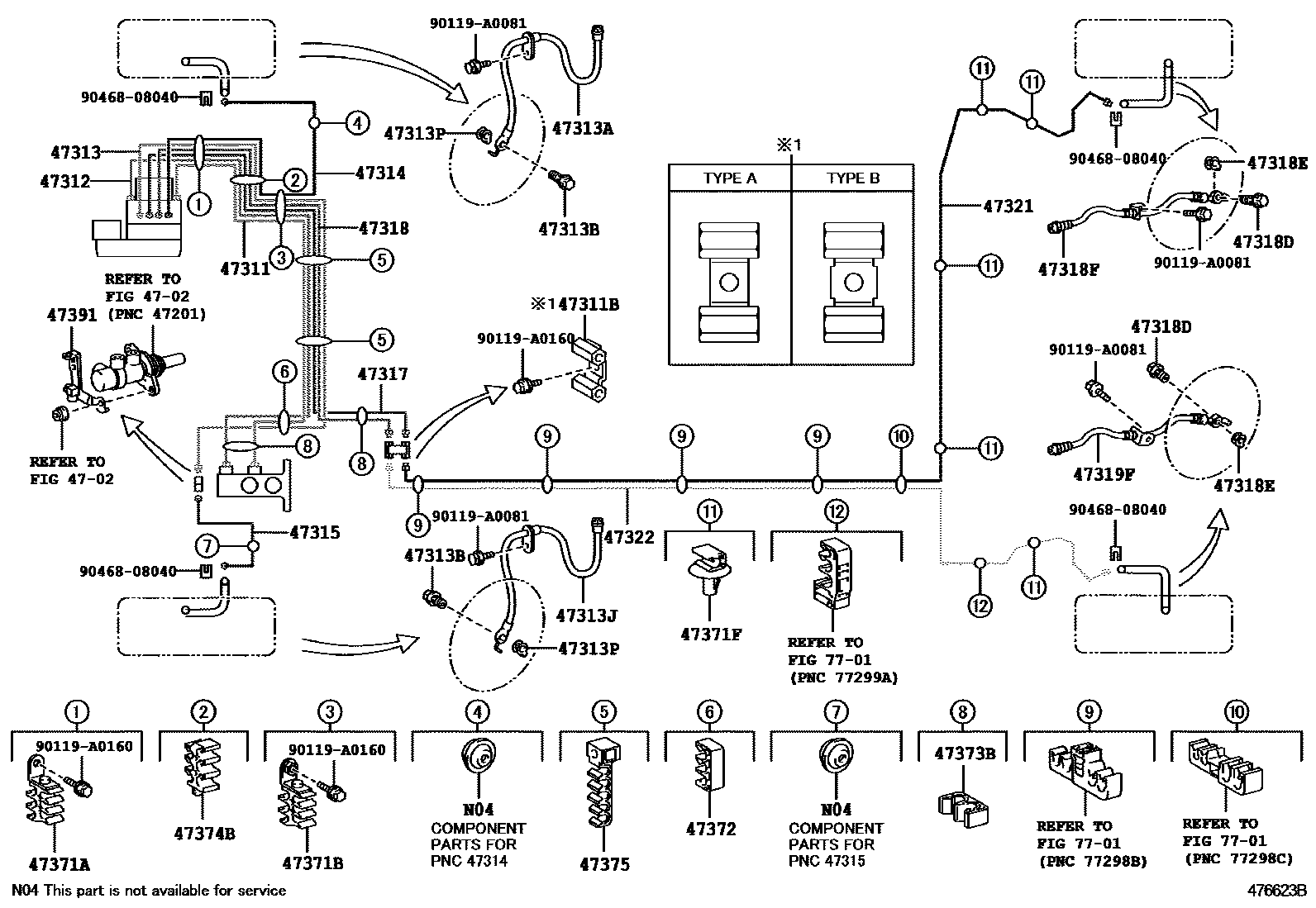

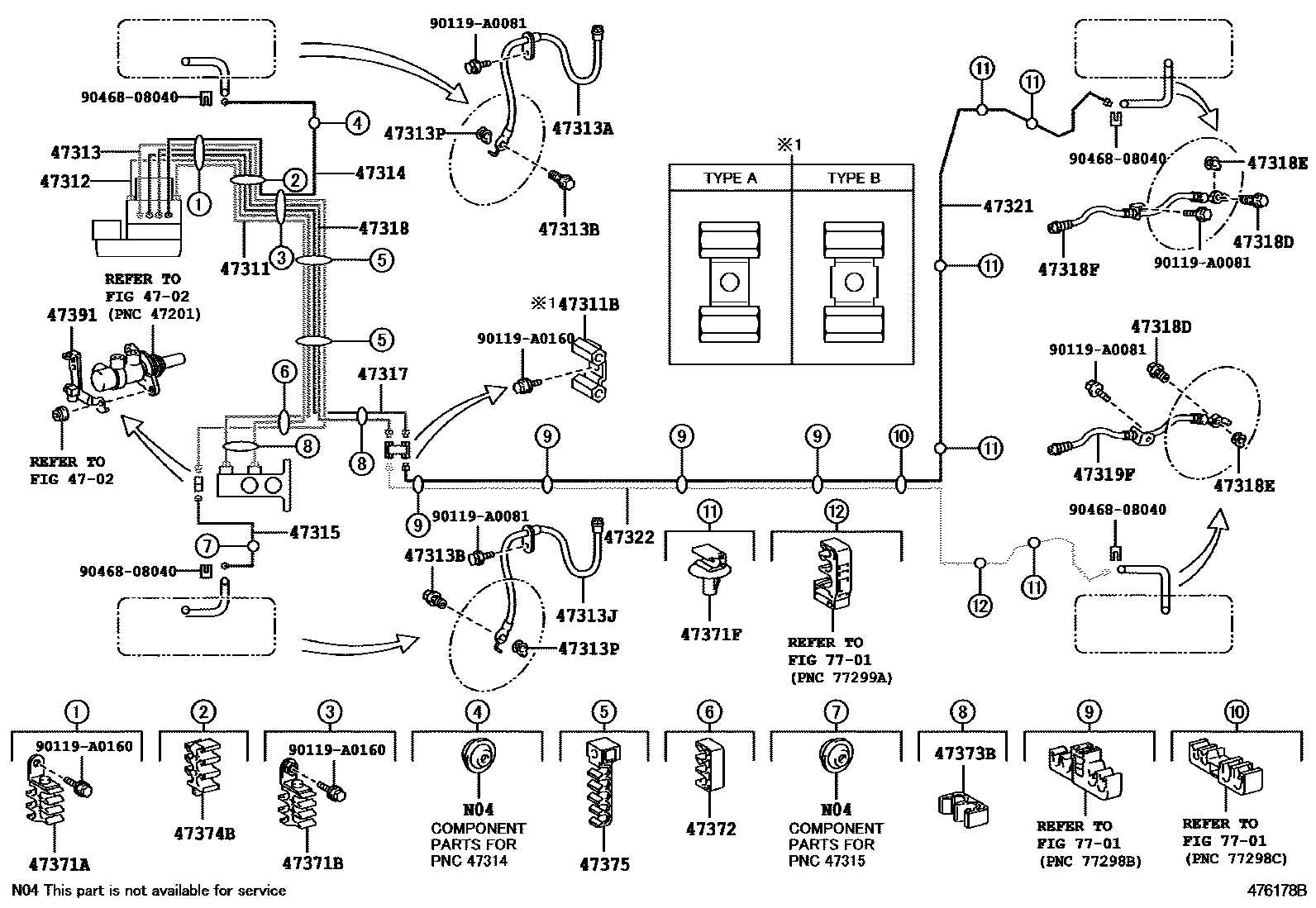

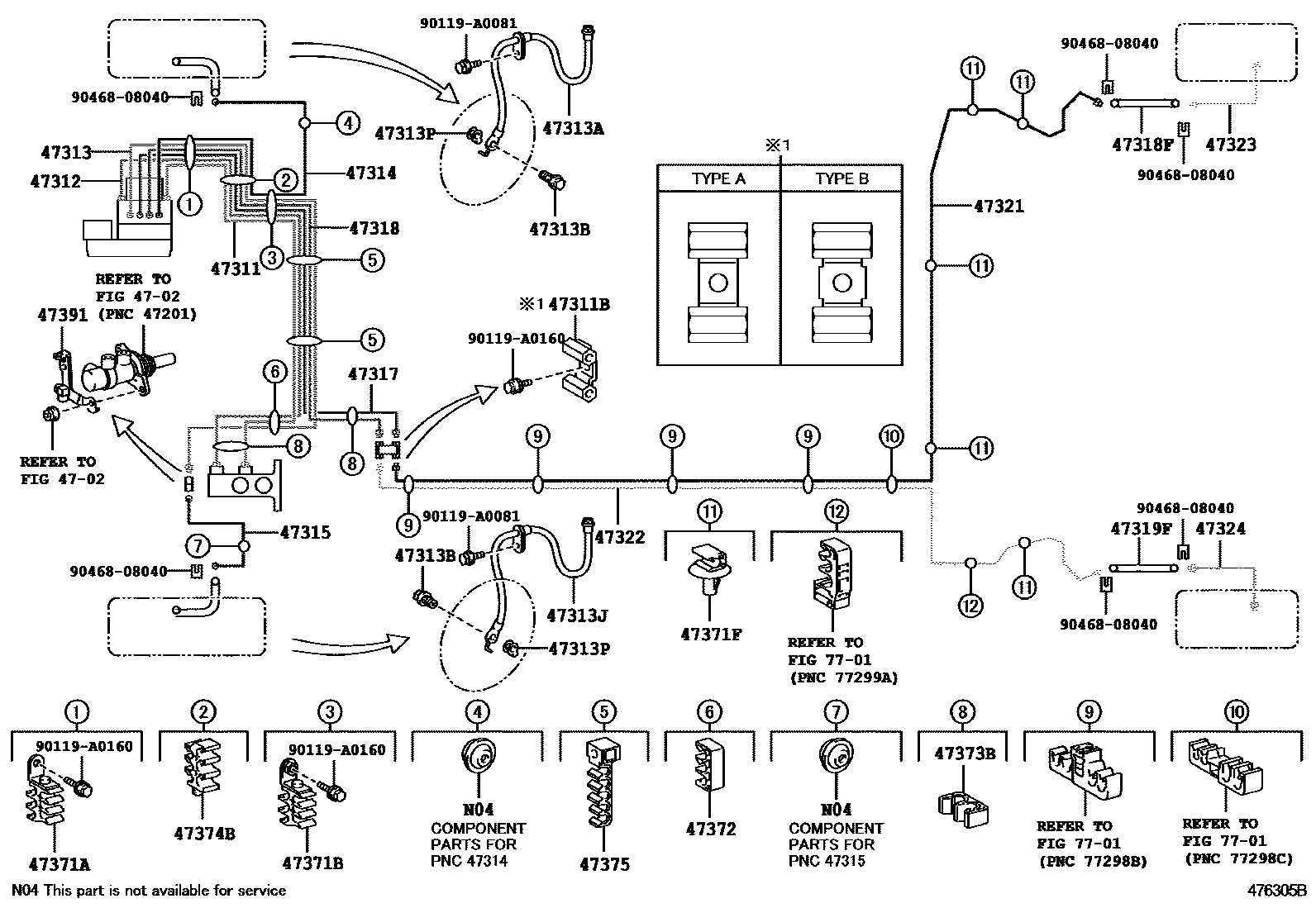

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 8 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

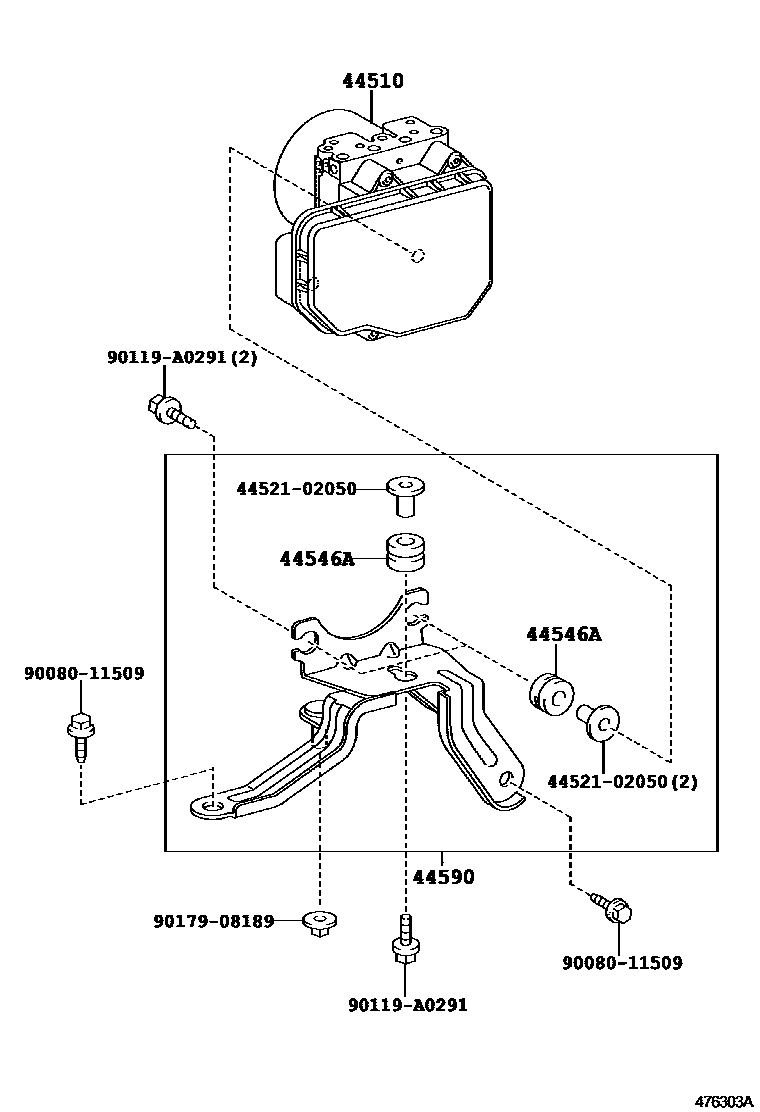

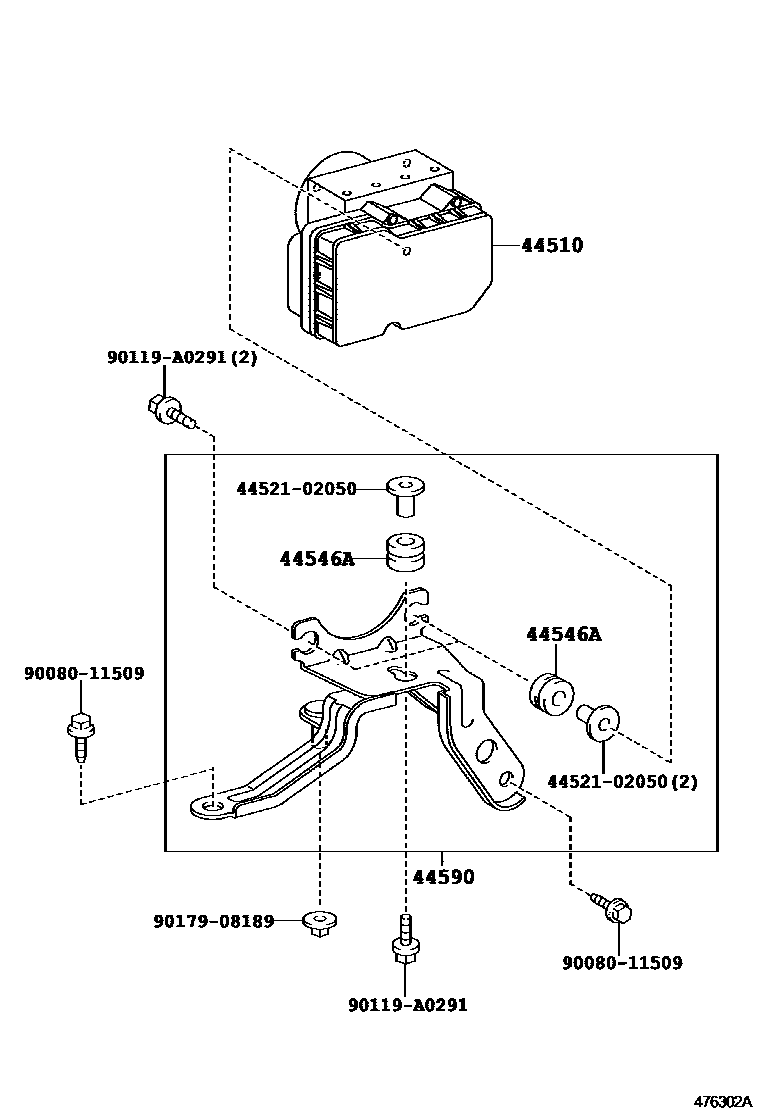

| 44510 | brake actuator assembly | 44050-02260 · 44050-02270 · 44050-02370 · 44050-02440 · 44050-02450 · 44050-02460 · 44050-02520 · 44050-02521 · 44050-02522 · 44050-02530 · 44050-02531 · 44050-02532 · 44050-02540 · 44050-02541 · 44050-02542 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-02140 · 44590-02141 · 44590-02200 · 44590-02210 |
| 47311 | No. 1 front brake pipe | 47311-02530 · 47311-02540 · 47311-02700 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-02410 · 47312-02420 · 47312-02600 |
| 47313 | No. 3 front brake pipe | 47313-02480 · 47313-02490 · 47313-02650 |
| 47313A | No. 1 front flexible hose | 90947-A2025 · 90947-A2077 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-A2026 · 90947-A2078 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-02480 · 47314-02490 · 47314-02650 |
| 47315 | No. 5 front brake pipe | 47315-02260 |
| 47317 | No. 7 front brake pipe | 47317-02400 · 47317-02410 · 47317-02570 · 47317-02590 · 47317-02600 |
| 47318 | No. 8 front brake pipe | 47318-02420 · 47318-02430 · 47318-02590 · 47318-02610 · 47318-02620 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-A2023 · 90947-A2029 |
| 47319F | Left rear flexible hose | 90947-A2024 · 90947-A2029 |
| 47321 | No. 1 rear brake pipe | 47321-02230 |
| 47322 | No. 2 rear brake pipe | 47322-02230 |
| 47323 | No. 3 rear brake pipe | 47323-02110 |
| 47324 | No. 4 rear brake pipe | 47324-02110 |
| 47371A | No. 1 brake pipe clamp | 47371-12240 · 90949-04053 |
| 47371B | No. 6 brake pipe clamp | 90949-04050 · 90949-04054 |
| 47371C | No. 7 brake pipe clamp | 90464-00920 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90464-00857 · 90464-00914 |
| 47373B | No. 3 brake pipe clamp | 90464-00904 |
| 47374B | No. 4 brake pipe clamp | 90949-01C51 · 90949-01D33 |
| 47375 | No. 5 brake pipe clamp | 90949-01D28 · 90949-01D73 |
| 47391 | Brake pipe joint | 47391-12050 |
