Toyota COROLLA 制动助力器和真空管 — Figure 4703

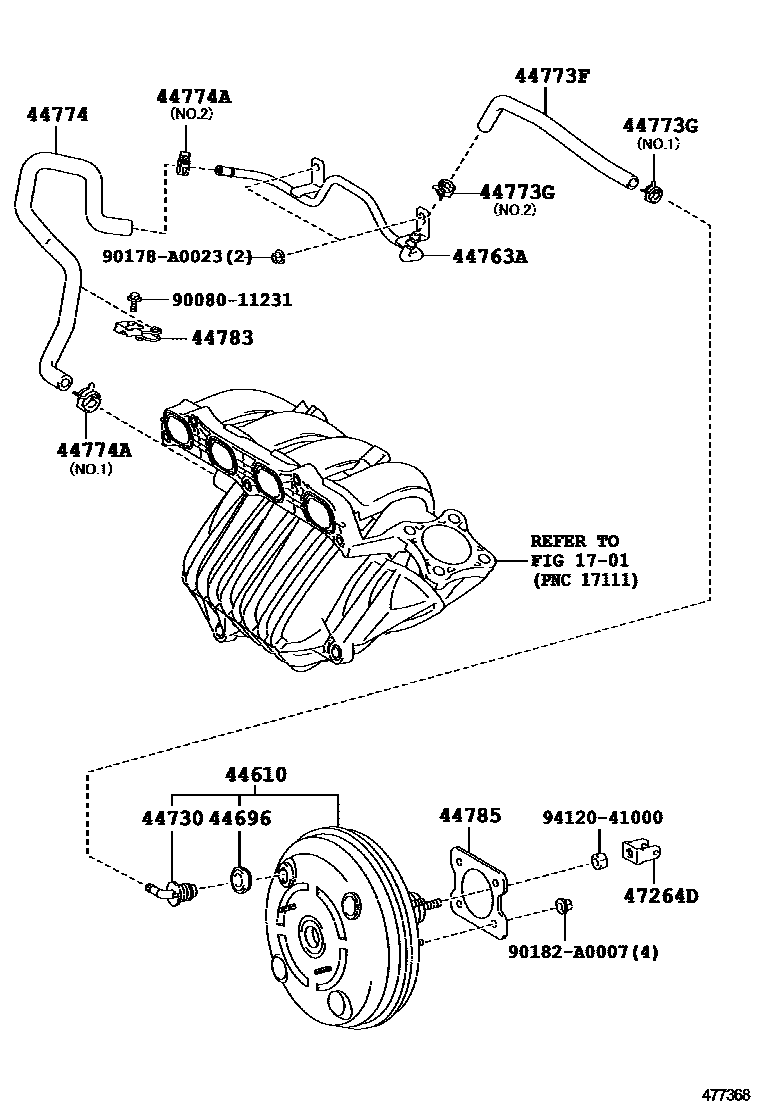

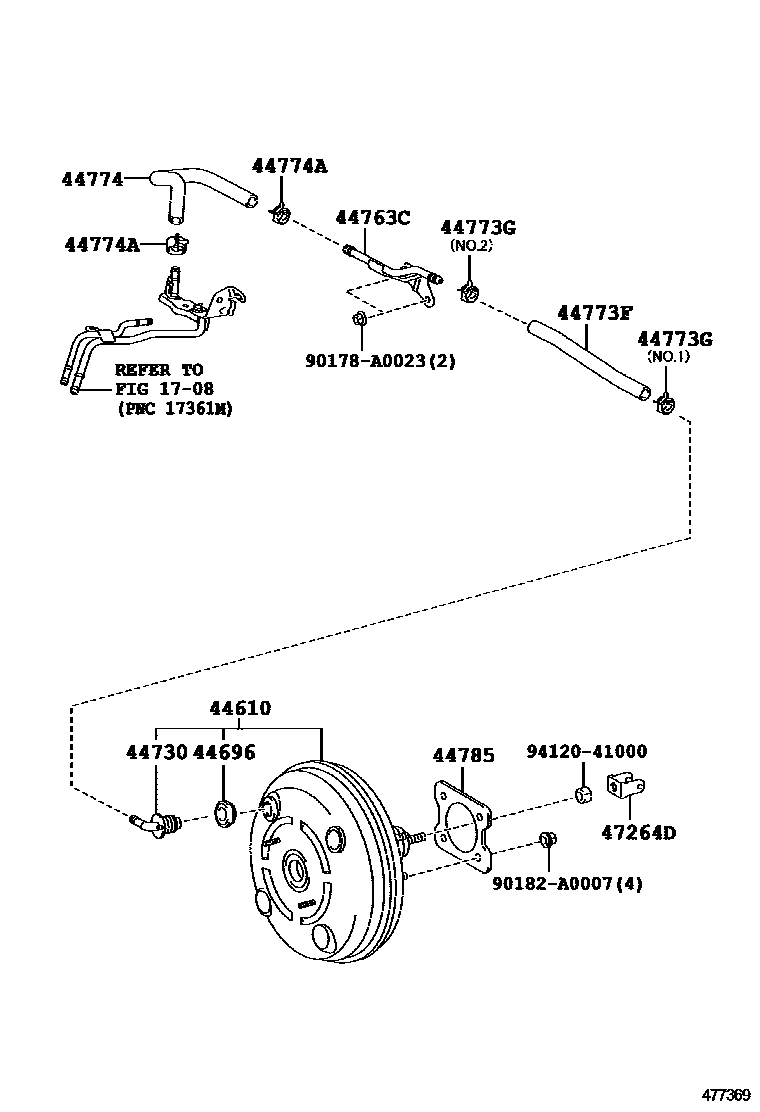

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02440 · 44610-02441 · 44610-02450 · 44610-02451 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12070 · 44730-20170 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-02080 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-02090 |
| 44773F | Hoses (connector to check valve) | 44773-02050 · 44773-02060 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02080 · 44774-02090 |
| 44774A | Clip (for fitting to connector tube hose) | 90466-A0025 · 96133-41500 · 96136-51801 |
| 44783 | Vacuum hose clamp | 44783-44010 |
| 44785 | brake booster pad | 44785-02060 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 |
