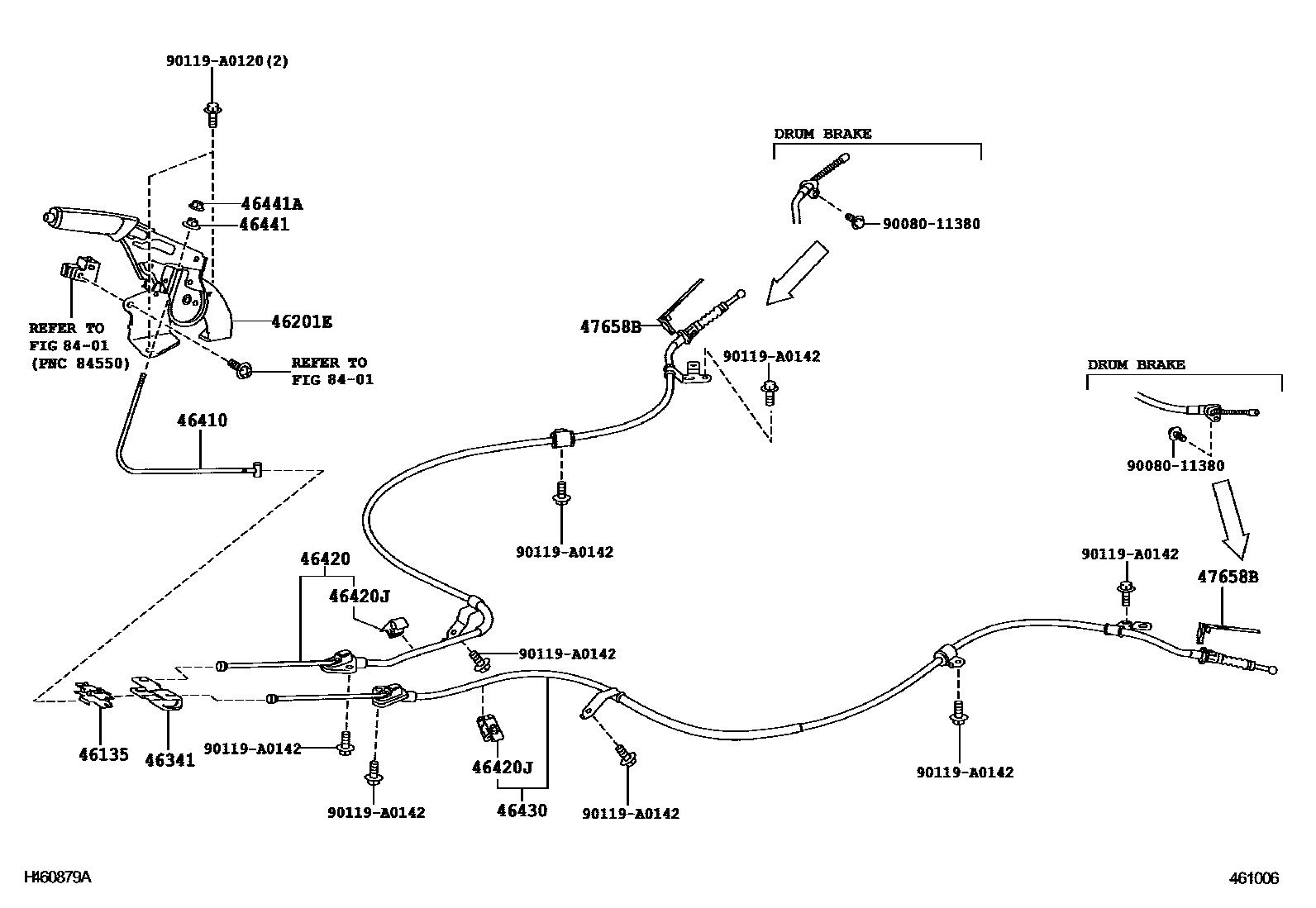

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-02070 · 46135-12010 |
| 46341 | Parking brake balancer | 46341-02070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-02100 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02150 · 46420-02151 · 46420-02190 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-02020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02150 · 46430-02151 · 46430-02190 |
| 46441 | No. 1 cable adjustment nut | 46441-12010 |
| 46441A | No. 2 cable adjustment nut | 90178-A0073 |
| 47658B | Parking brake lever protection device | 47658-12010 |
