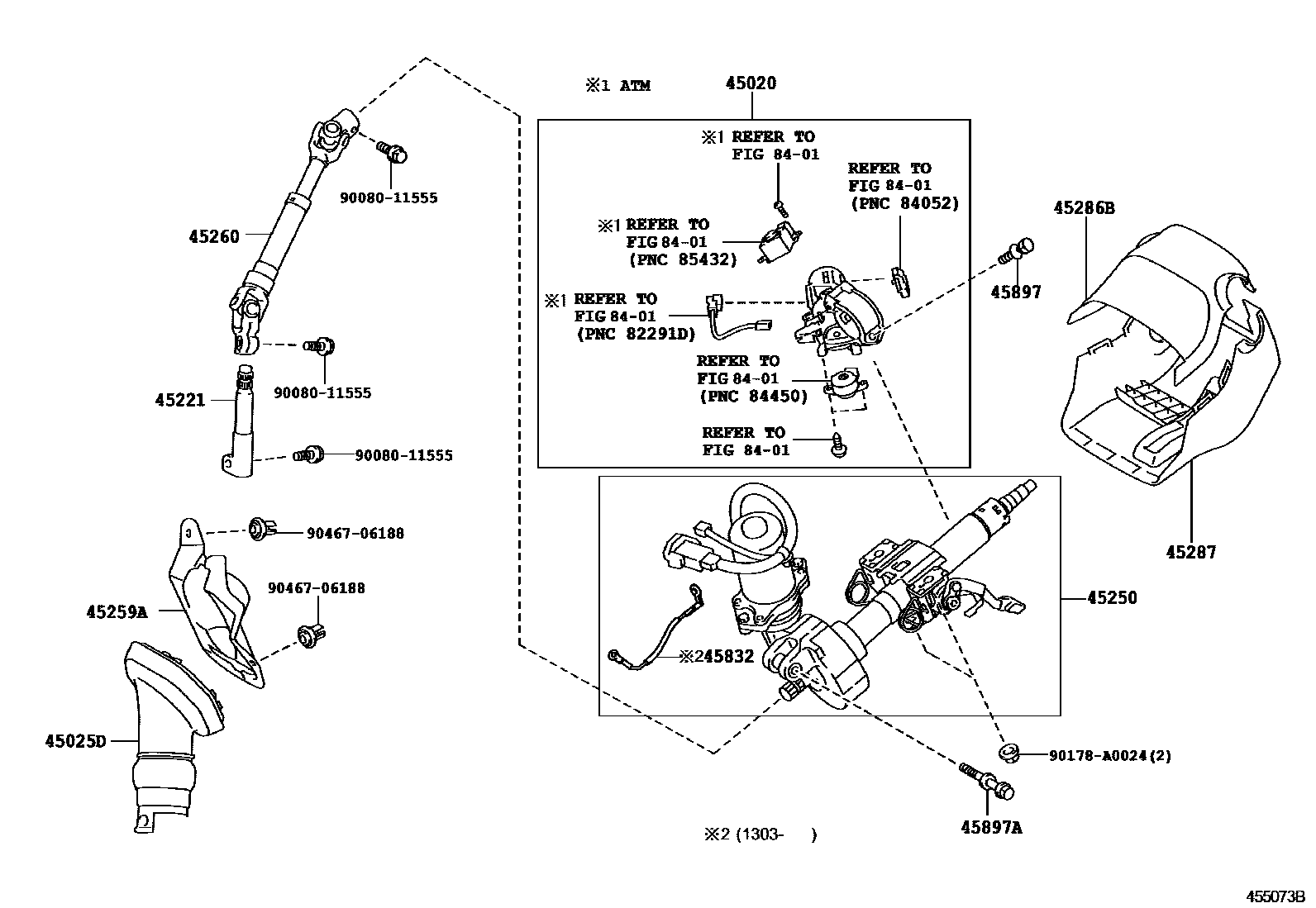

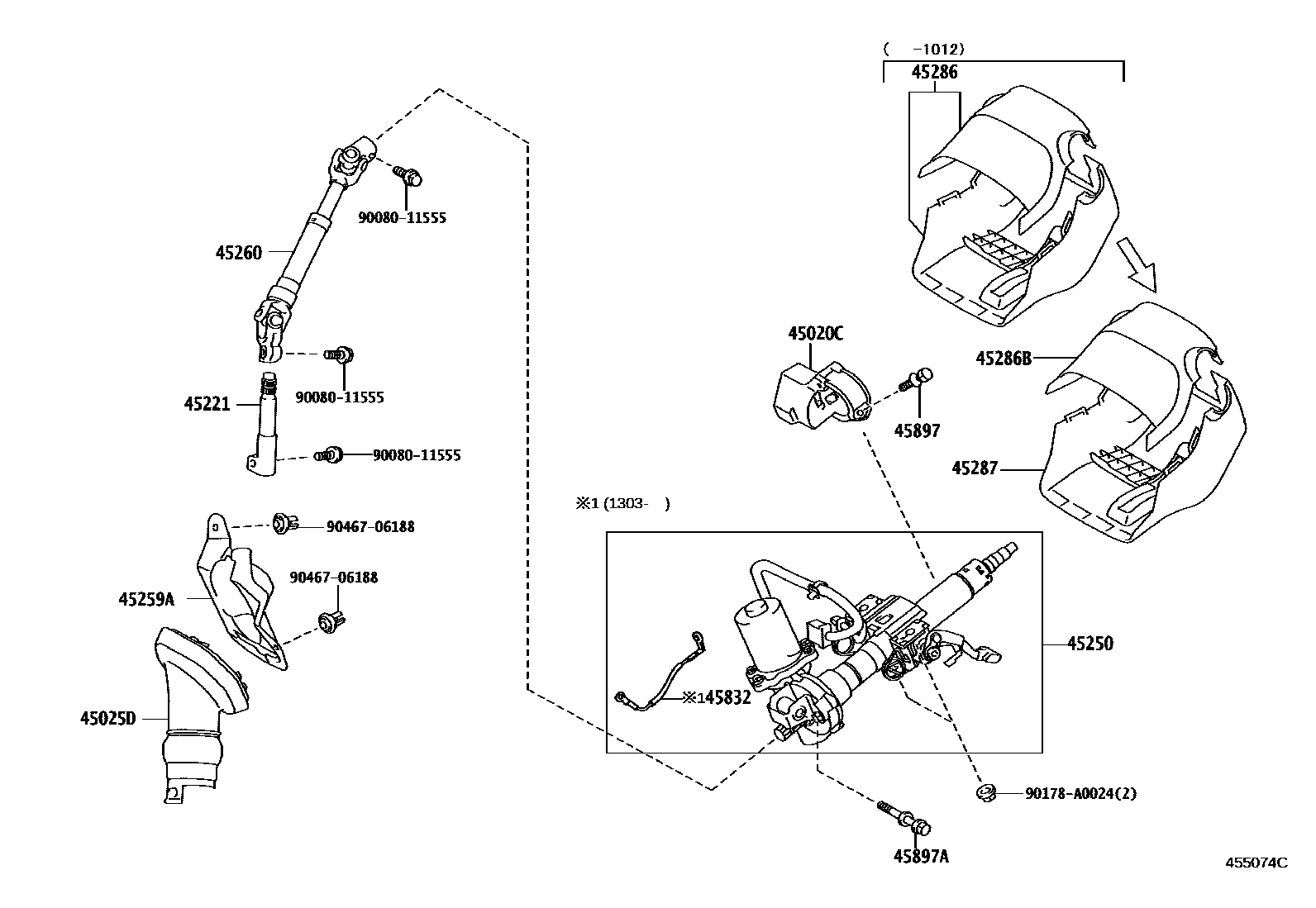

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020 | Steering column upper bracket assembly with switch | 45020-02290 · 45020-02300 |
| 45020C | ENS. ACTIONNEUR, ANTIVOL DIRECTION(AV/ECU) | 45020-02330 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02110 |
| 45221 | steering intermediate shaft | 45221-02070 |
| 45250 | Steering column assembly | 45250-02620 · 45250-02820 · 45250-02840 |
| 45259A | Steering column hole cover silencer plate | 45259-02100 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02110 |
| 45832 | Tilt-adjustable steering bracket connection cable | 45832-02030 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-42010 · 90119-10981 |
