Toyota COROLLA Front Drive Shaft — Figure 4302

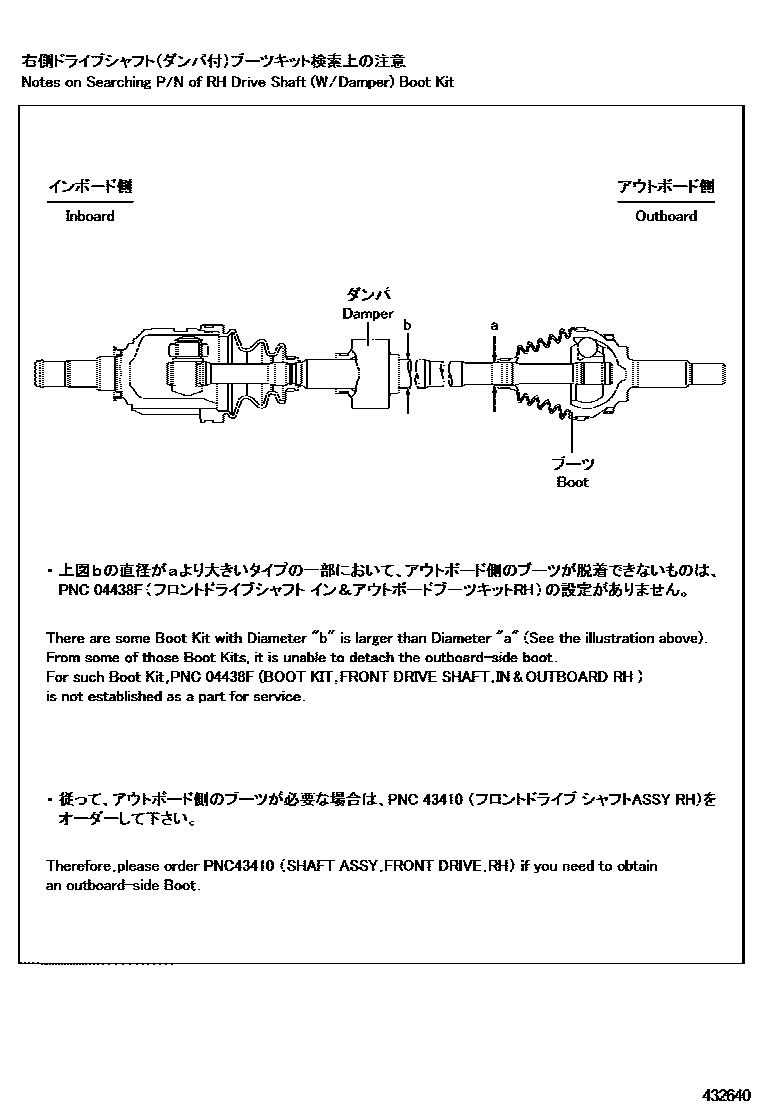

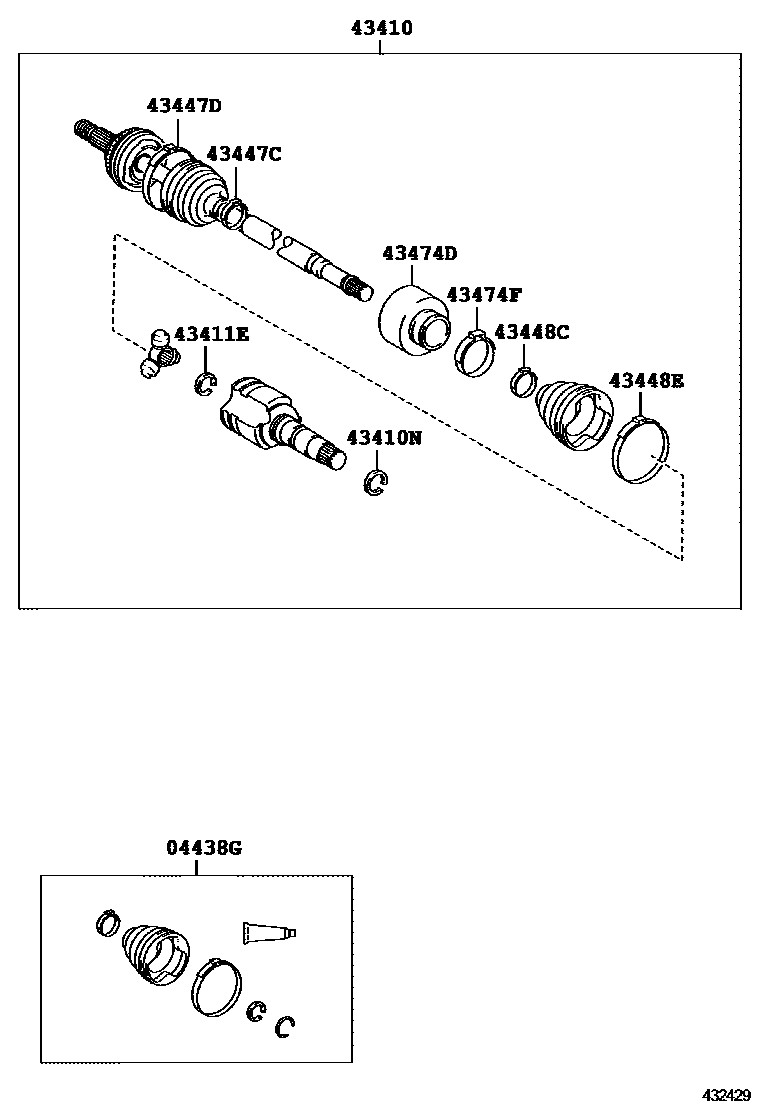

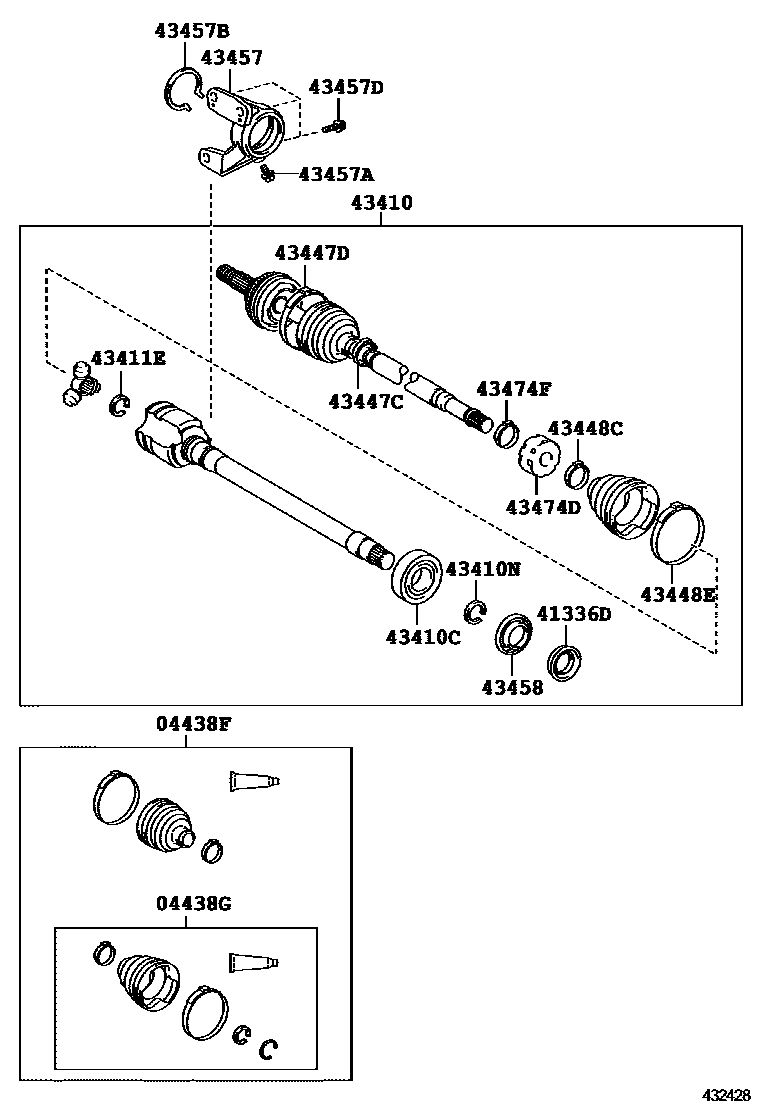

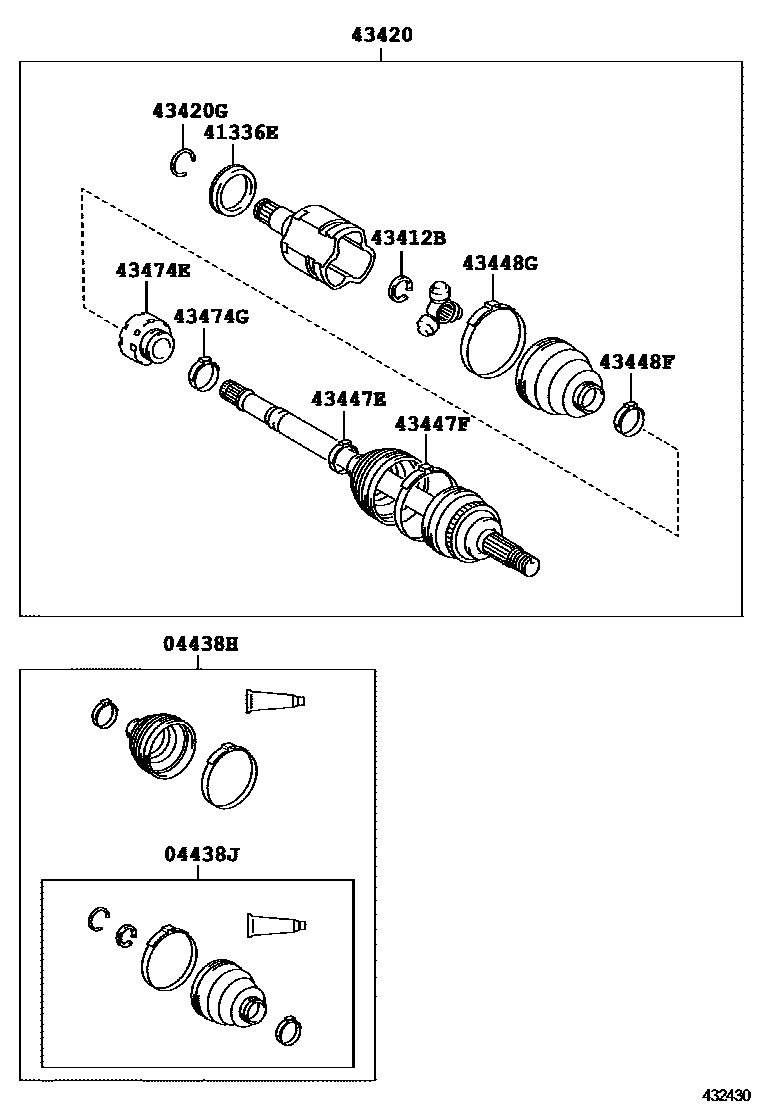

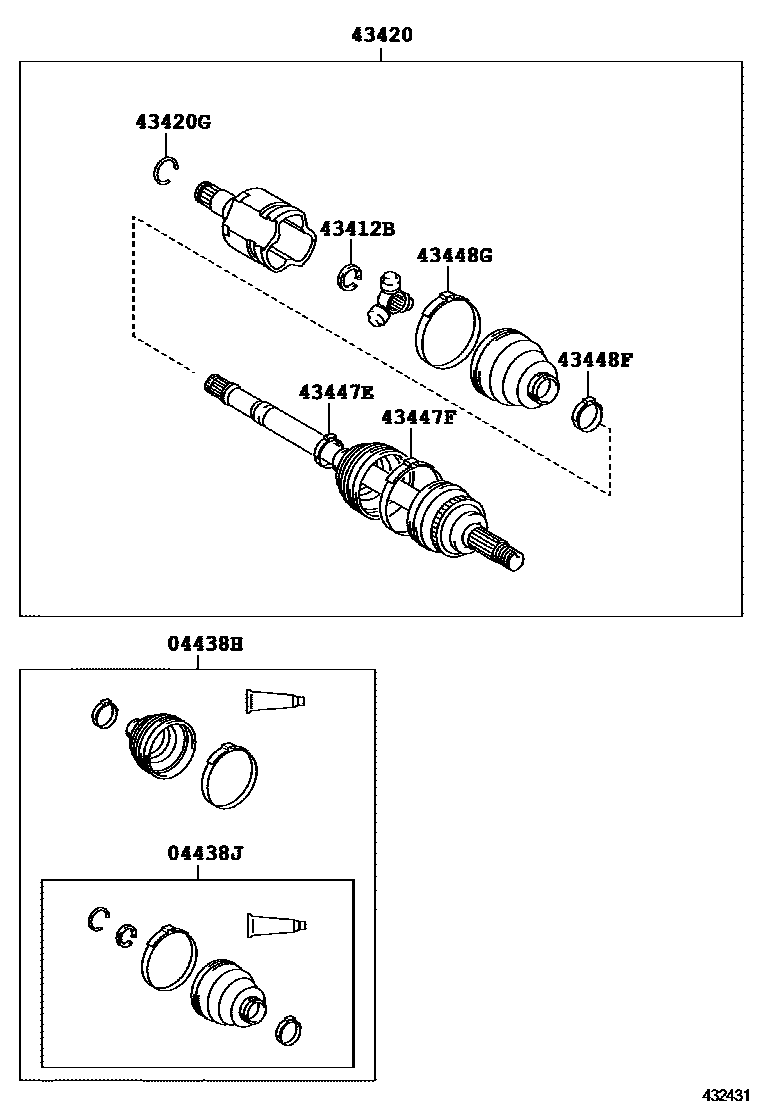

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 5 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-01020 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-01010 · 04437-01020 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-01020 · 04428-01040 · 04428-02520 · 04428-02610 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-01010 · 04437-01020 · 04438-02510 |
| 41336D | Right front driveshaft dust cover | 41336-06020 |
| 41336E | Left front driveshaft dust cover | 41336-06060 |
| 43410 | Right front driveshaft assembly | 43410-01130 · 43410-01131 · 43410-01140 · 43410-02760 · 43410-02A00 · 43410-02A01 |
| 43410C | Bearings (for front driveshaft) | 90080-36133 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-01030 · 90080-52013 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-01040 · 43425-02010 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-01040 · 43425-02010 |
| 43420 | Left front drive shaft assembly | 43420-01110 · 43420-01120 · 43420-02680 · 43420-02681 · 43420-02820 · 43420-02B00 · 43420-02B10 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-01030 · 90080-52017 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-01060 · 42345-01110 · 42345-0R080 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-01070 · 42345-01120 · 42345-0R070 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-01060 · 42345-01110 · 42345-0R080 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-01070 · 42345-01120 · 42345-0R070 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-01040 · 42345-05100 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-01030 · 42345-02040 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-01040 · 42345-05100 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-01030 · 42345-02040 · 42345-02330 |
| 43457 | drive shaft bearing bracket | 43457-01010 · 43457-06020 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-78002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
| 43458 | Front drive shaft dust cover | 43458-06020 |
| 43474D | Right front driveshaft shock absorber | 43474-01020 · 43474-01021 · 43474-01030 |
| 43474E | Left front driveshaft shock absorber | 43474-01060 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02871 · 42345-05100 · 42345-07090 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-05100 |
