Toyota COROLLA 前桥壳和差速器 — Figure 4301

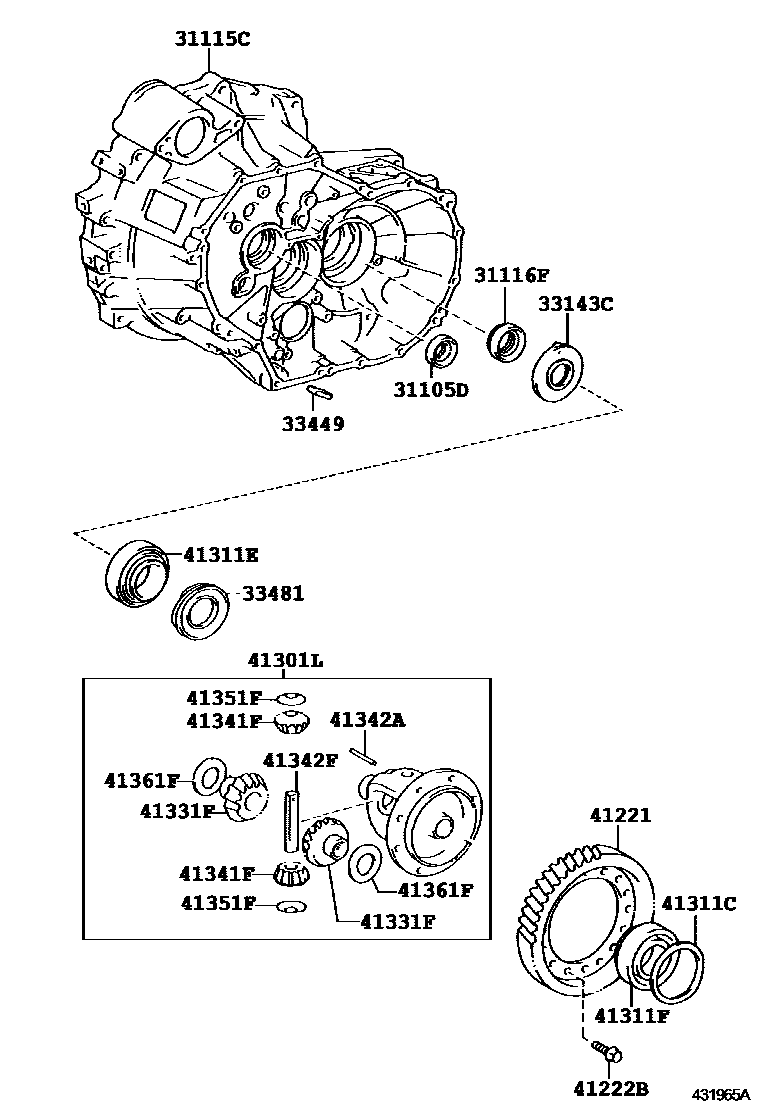

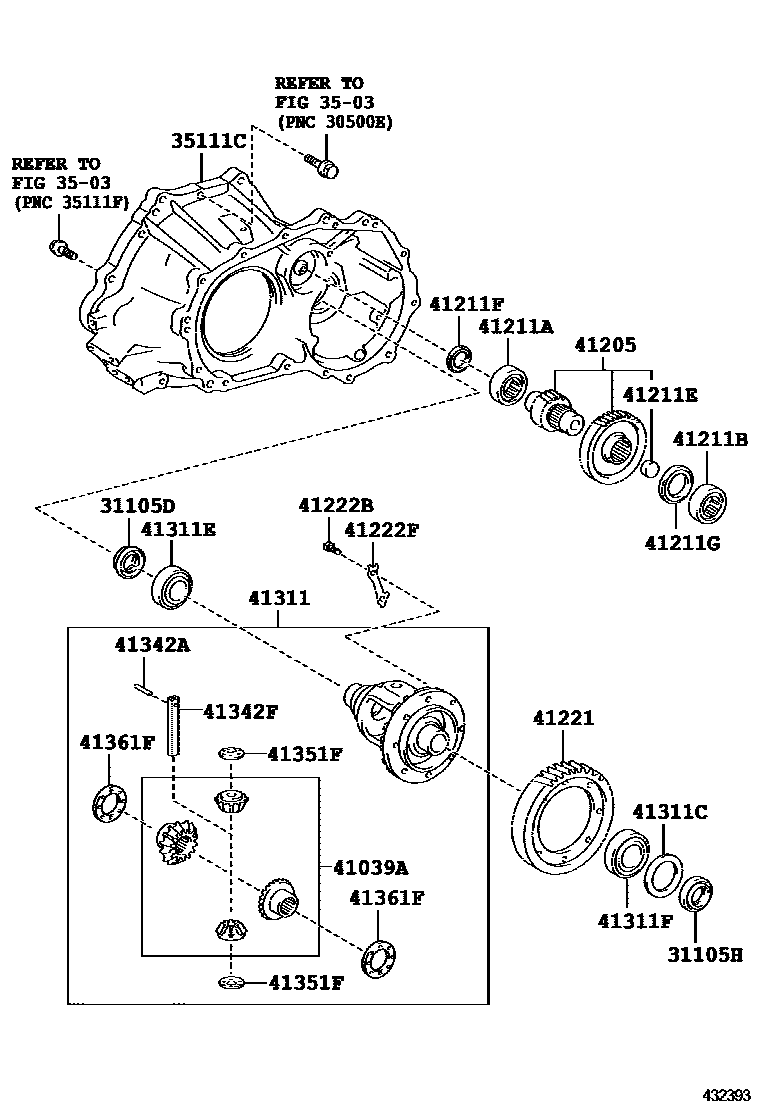

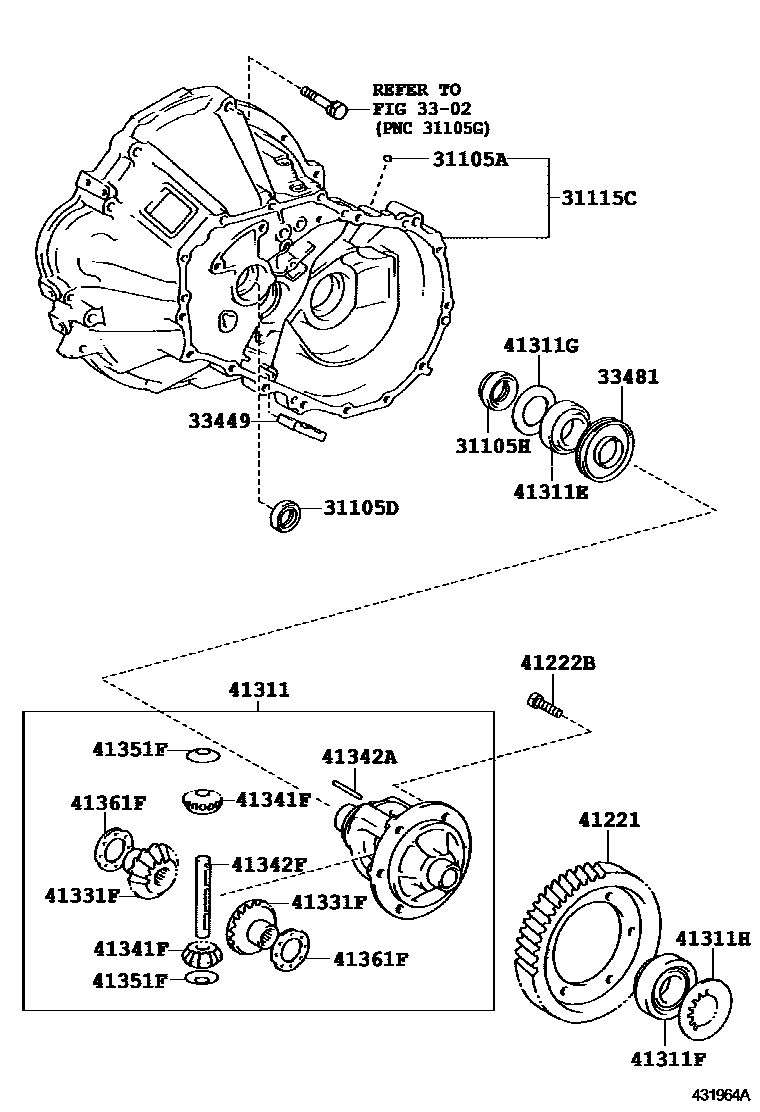

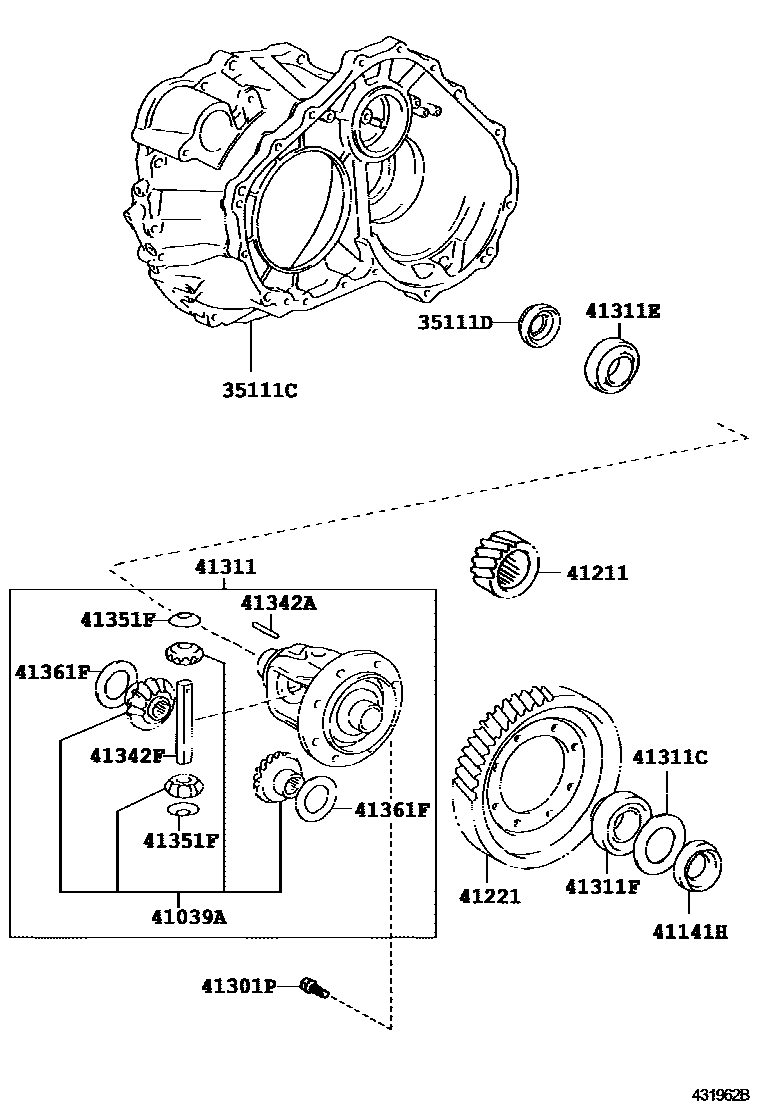

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25028 · 90311-30017 · 90311-35055 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-35054 · 90311-35057 · 90311-35065 · 90311-35068 |
| 31115C | Front transmission axle housing (MTM) | 31105-12220 · 31115-20071 · 31115-20072 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-40030 · 90311-40036 |
| 33143C | Front differential oil baffle | 33143-28010 |
| 33449 | derailleur magnet | 33449-12020 · 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-20150 · 33481-20160 |
| 35111C | Transmission axle housing | 35105-12080 · 35105-44061 |
| 35111D | Oil seal (for transaxle housing) | 90311-40031 |
| 41039A | Differential gear assembly | 41039-28020 · 41039-32021 |
| 41141H | Oil seal (for differential side bearing retainer) | 90311-50033 · 90311-50045 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211 | Differential drive pinion | 41211-12220 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-12480 · 41221-33140 · 41221-42130 · 41221-52060 · 41221-52061 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12319 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-28070 |
| 41301P | Screw (for front differential case) | 90105-12303 |
| 41311 | front differential case | 41301-12210 · 41301-32061 · 41301-33110 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-56055 · 90564-56056 · 90564-56057 · 90564-56058 · 90564-56059 · 90564-56060 · 90564-56061 · 90564-56062 · 90564-56063 · 90564-56064 · 90564-56065 · 90564-56066 · 90564-56067 · 90564-56068 · 90564-56069 · 90564-56070 · 90564-56071 · 90564-56072 · 90564-56091 · 90564-56092 · 90564-56093 · 90564-56094 · 90564-56095 · 90564-56096 · 90564-56097 · 90564-56098 · 90564-56099 · 90564-56100 · 90564-56101 · 90564-56102 · 90564-56103 · 90564-56104 · 90564-56105 · 90564-56106 · 90564-56107 · 90564-56108 · 90564-68006 · 90564-68007 · 90564-68008 · 90564-68009 · 90564-68010 · 90564-68011 · 90564-68012 · 90564-68013 · 90564-68014 · 90564-68015 · 90564-68016 · 90564-68017 · 90564-68018 · 90564-68019 · 90564-68020 · 90564-68021 · 90564-68022 · 90564-68023 · 90564-68024 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40016 · 90366-40097 · 90366-40129 · 90366-50084 · 90366-57001 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-44001 · 90366-50072 · 90366-50078 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41331F | Front differential side gear | 41331-12140 · 41331-28020 · 41331-32010 |
| 41341F | Front differential planetary gear | 41341-12090 · 41341-28010 · 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-20080 · 41342-28010 · 41342-32020 · 41342-33040 |
| 41351F | Front differential planetary gear thrust washer | 41351-28010 · 41351-30060 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 |
