Toyota COROLLA 变速器壳和油底壳(ATM) — Figure 3503

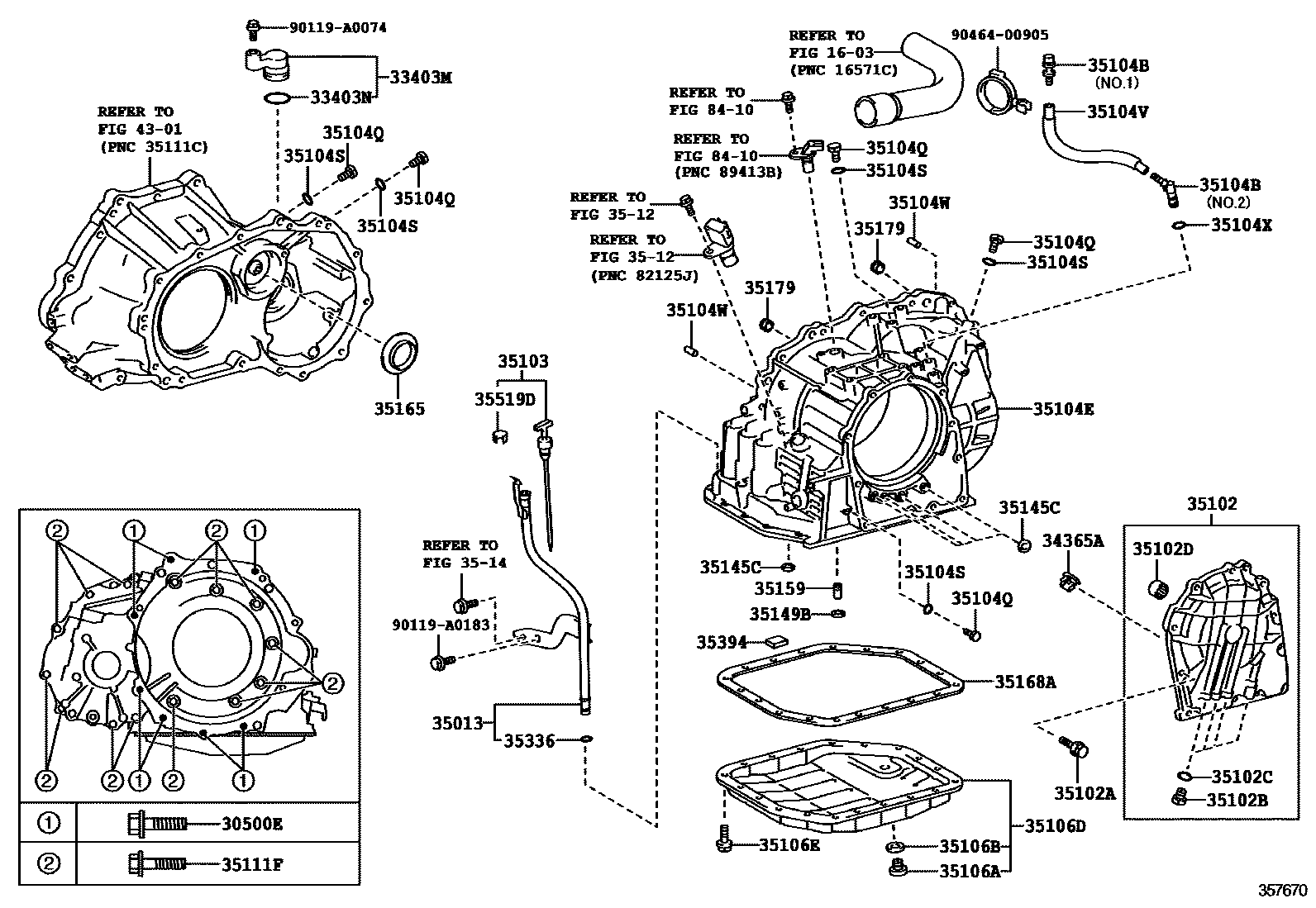

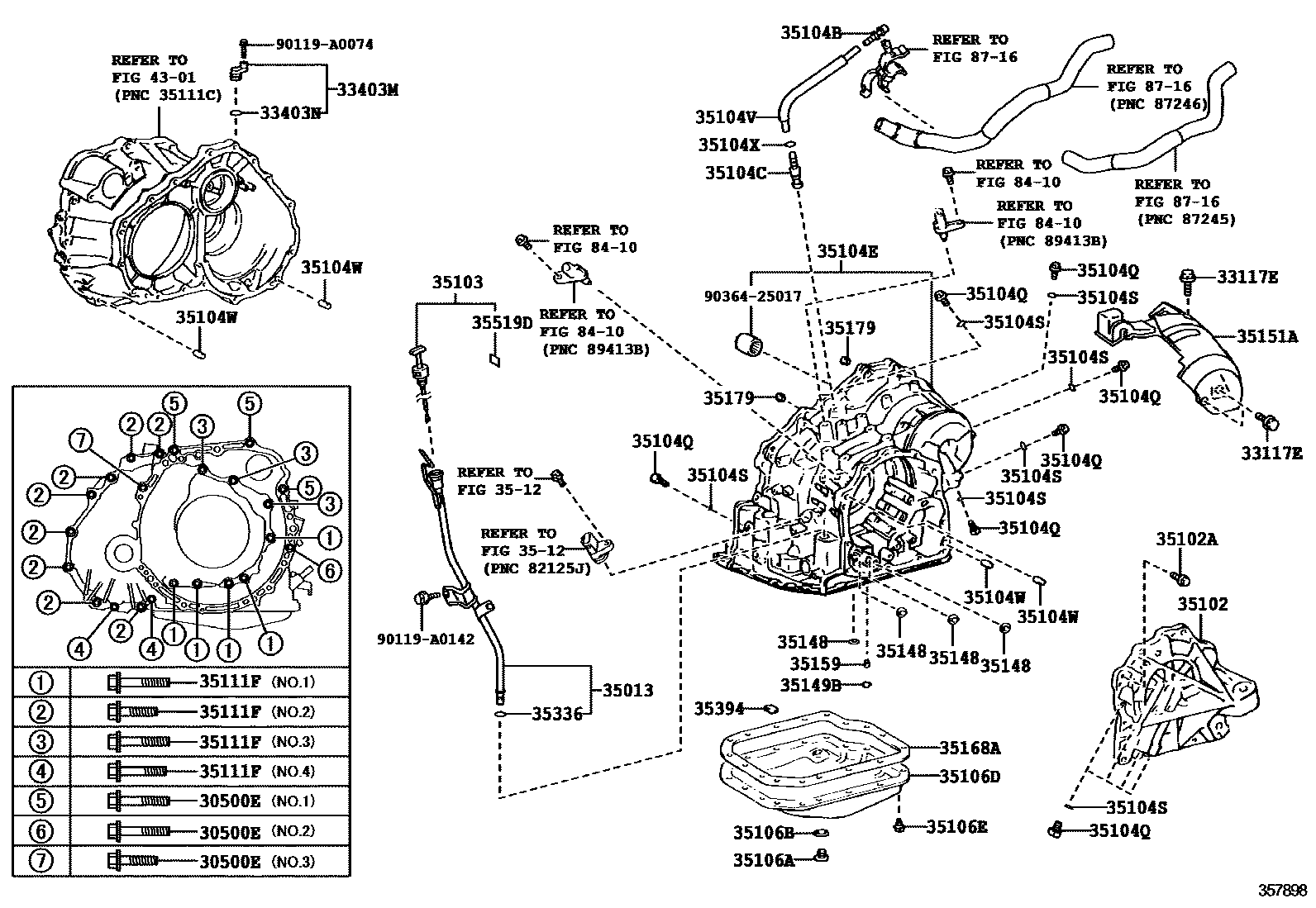

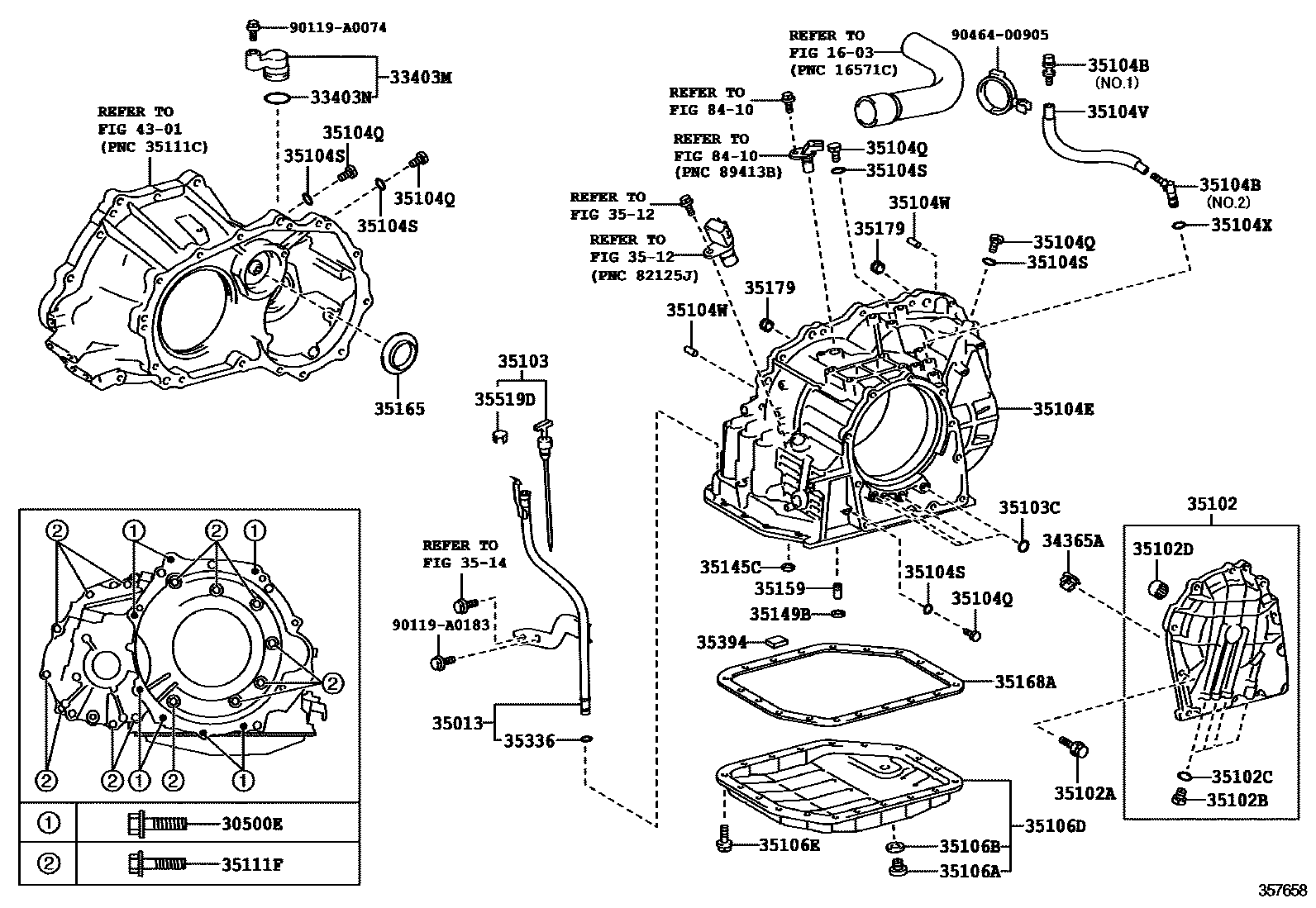

Toyota COROLLA EPC diagram 3503, 变速器壳和油底壳(ATM), with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30500E | Bolts (for securing transaxle and engine) | 90080-10207 · 90080-10299 · 90080-11310 · 90119-A0140 |
| 33117E | Bolts (for automatic transmission guard) | 90080-10083 · 91641-H0820 |
| 33403M | Speedometer driven gear hole cover sub-assembly (ATM) | 33403-20230 |
| 33403N | O-ring (for automatic transmission speedometer driven gear hole cover) | 96711-24018 |
| 34365A | Outer race retainer | 34365-52012 |
| 35013 | Transmission oil pipe sub-assembly | 35013-02050 · 35013-02060 |
| 35102 | Transmission axle rear cover sub-assembly | 35102-12050 · 35102-52020 |
| 35102A | Bolts (for fixing the transmission axle rear cover) | 90105-08071 · 90105-08365 |
| 35102B | Screw plug (for transmission axle rear cover) | 90341-08001 |
| 35102C | O-ring (for transmission axle rear cover screw plug) | 90301-06196 |
| 35102D | Needle roller bearing (for transmission axle rear cover) | 90364-14007 |
| 35103 | Transmission oil level scoring assembly | 35103-02120 · 35103-02130 |
| 35103C | O-ring | 90301-10018 · 90301-10189 |
| 35104B | Ventilation plug No. 1 (ATM) | 90930-03149 · 90930-03166 |
| 35104C | Ventilation plug No. 2 (ATM) | 90930-03157 |
| 35104E | Automatic transmission axle housing sub-assembly | 35104-20131 · 35104-20132 · 35104-33091 · 35104-33092 |
| 35104Q | No. 1 screw plug (for transmission axle housing) | 90341-08001 |
| 35104S | O-ring (for transmission axle housing plug No. 1) | 90301-06196 |
| 35104V | Hoses (for breather plug) | 35121-12070 · 35121-21020 |
| 35104W | Direct sales (for transmission axle housing) | 90250-10017 · 90250-10036 · 90250-10232 |
| 35104X | O-ring (for breather plug) | 90301-06005 · 90301-06021 |
| 35106A | Drain plug sub-assembly (ATM) | 90341-18016 |
| 35106B | Drain plug gasket (ATM) | 90430-18008 |
| 35106D | Automatic transmission axle oil pan sub-assembly | 35106-33050 · 35106-52020 |
| 35106E | Bolts (for transaxle oil pan) | 90119-06173 |
| 35111F | Bolts (for securing transaxle housing and transaxle housing) | 90105-06320 · 90105-08071 · 90105-08233 · 90105-08353 |
| 35145C | Transmission axle housing gasket | 35145-21010 |
| 35148 | Governor oil supply pipe No. 1 gasket | 35145-21010 |
| 35149B | Transaxle housing second gear brake pad | 35149-21010 |
| 35151A | Transmission axle housing upper cover | 35151-12020 |
| 35159 | brake drum gasket | 35159-21010 |
| 35165 | No. 1 gearbox block | 35165-52030 |
| 35168A | Automatic transaxle oil pan gasket | 35168-21020 · 35168-52020 |
| 35179 | overdrive brake pad | 35179-32010 · 90301-06008 · 90301-06024 |
| 35336 | O-ring (for transmission filler pipe) | 90301-09173 |
| 35394 | Oil filter magnet (for transmission) | 35394-30011 |
| 35519D | Automatic transmission information label | 35519-41010 |
