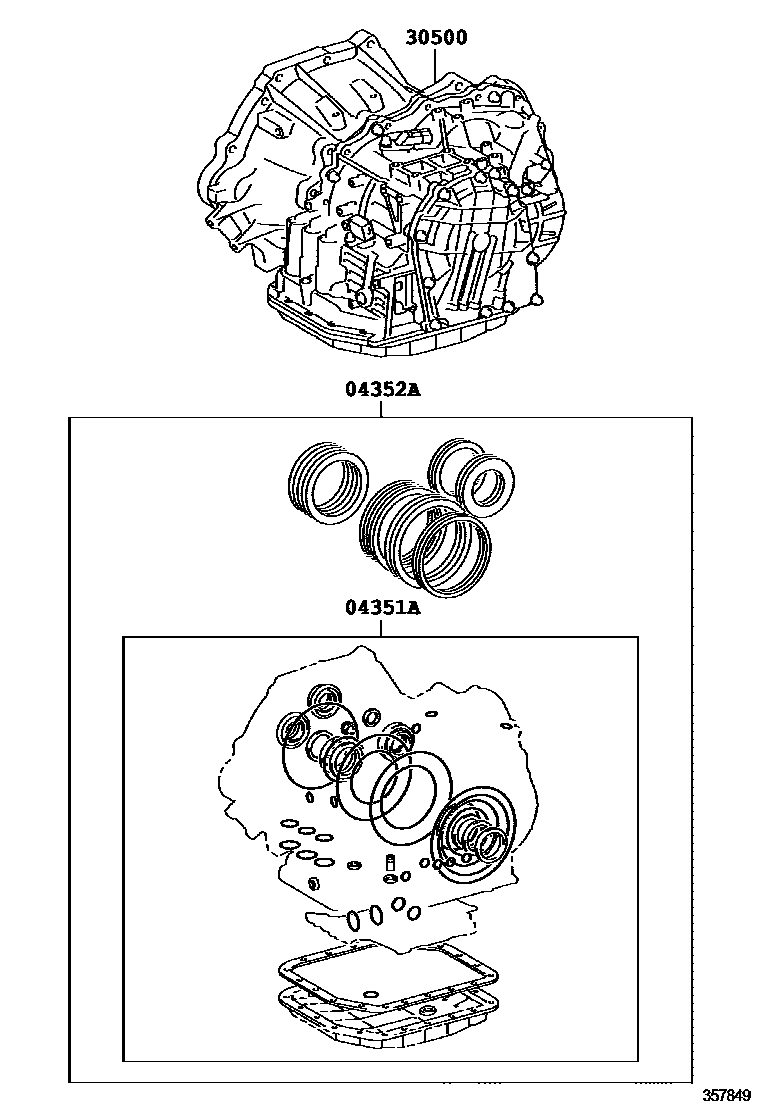

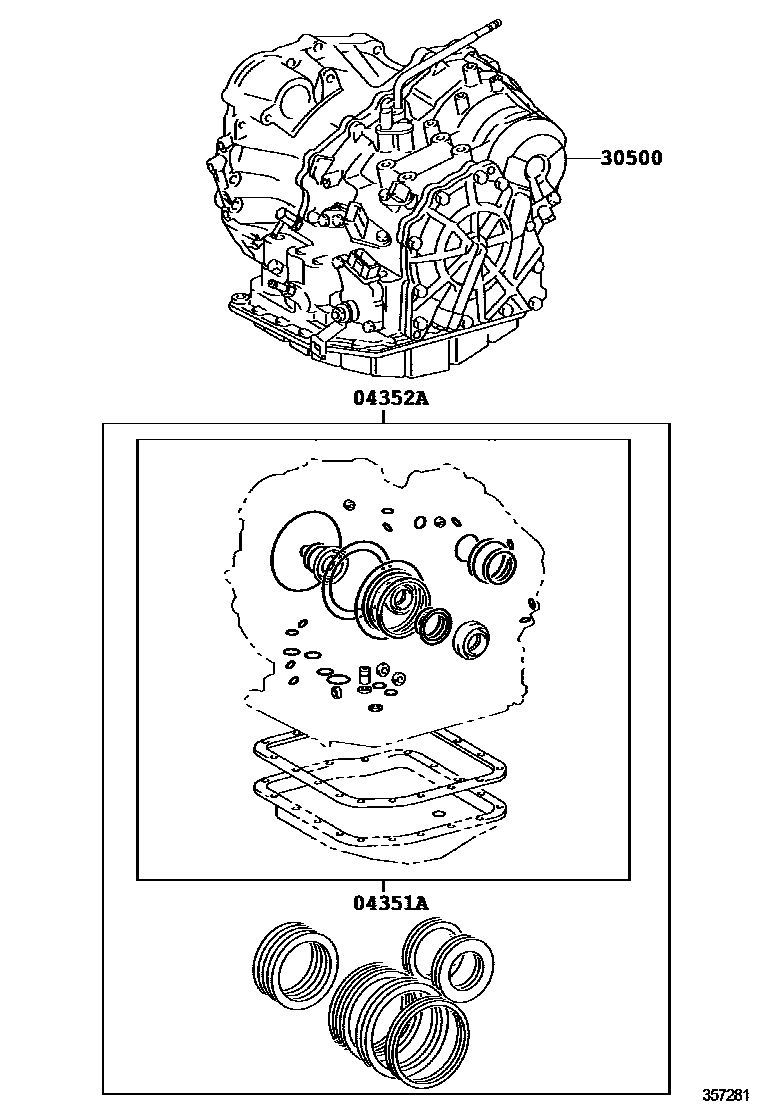

Toyota COROLLA 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota COROLLA EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-12750 · 04351-12751 · 04351-12800 · 04351-33430 · 04351-33431 |
| 04352A | Transaxle Overhaul Kit (ATM) | 04352-12820 · 04352-12821 · 04352-12890 · 04352-33541 · 04352-33550 |
| 30500 | Automatic transmission axle assembly | 30500-12C60 · 30500-1A870 |
