Toyota COROLLA 离合器分离缸 — Figure 3105

Toyota COROLLA EPC diagram 3105, 离合器分离缸, with 2 images and 8 PNC and OE references.

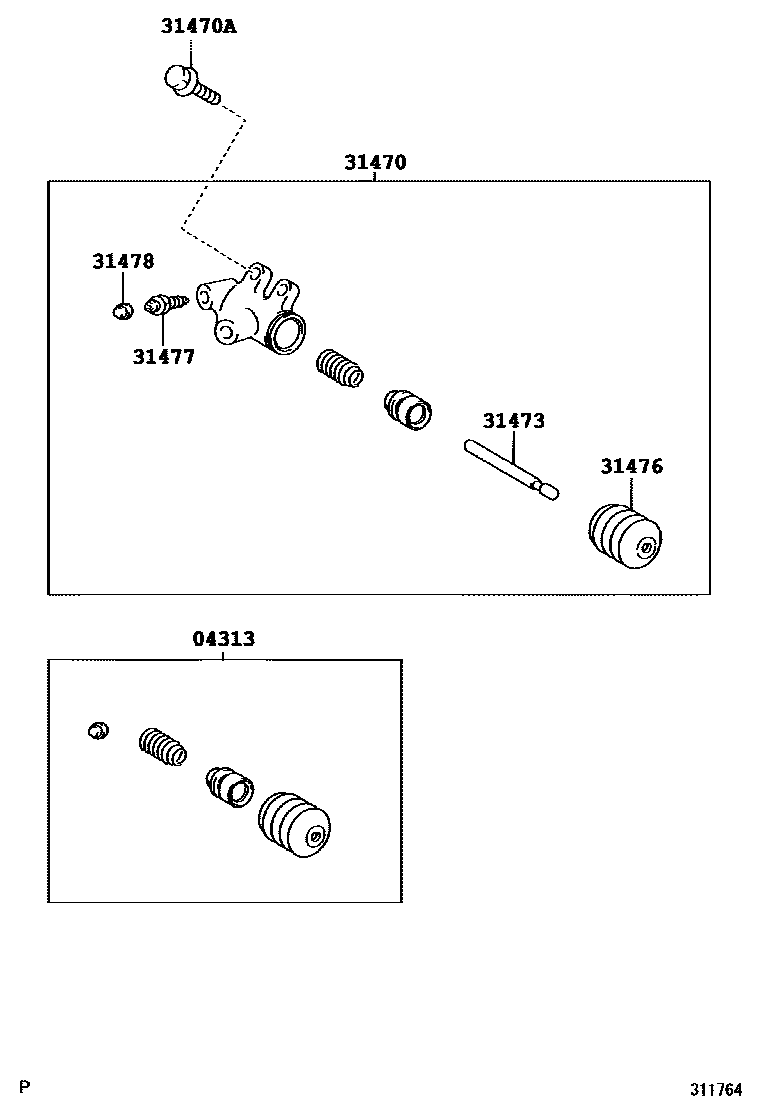

Toyota COROLLA 离合器分离缸 EPC diagram — 311764
离合器分离缸 — 311764 (200801 – 999999)

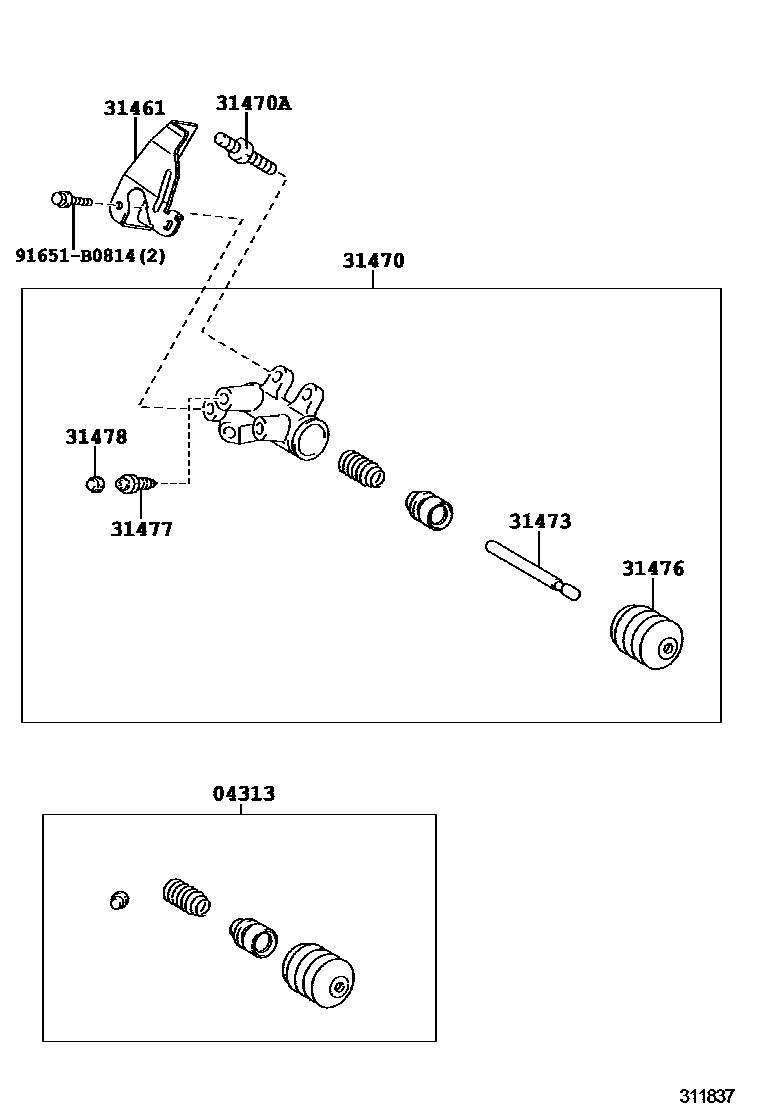

Toyota COROLLA 离合器分离缸 EPC diagram — 311837
离合器分离缸 — 311837 (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
04313Clutch release cylinder assembly04313-37030 · 04313-53010
31461Separation cylinder insulation pad31461-12010
31470Clutch release cylinder assembly31470-12160 · 31470-12161 · 31470-42040
31470ABolt (for securing clutch release cylinder)90109-08248 · 91611-60822
31473No. 1 clutch release cylinder push rod31473-22030
31476Clutch release cylinder dust boot31476-22010
31477Bleed plug (for separation cylinder)47547-20010
31478Bleed plug cap (for separator cylinder)31478-30010
