Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

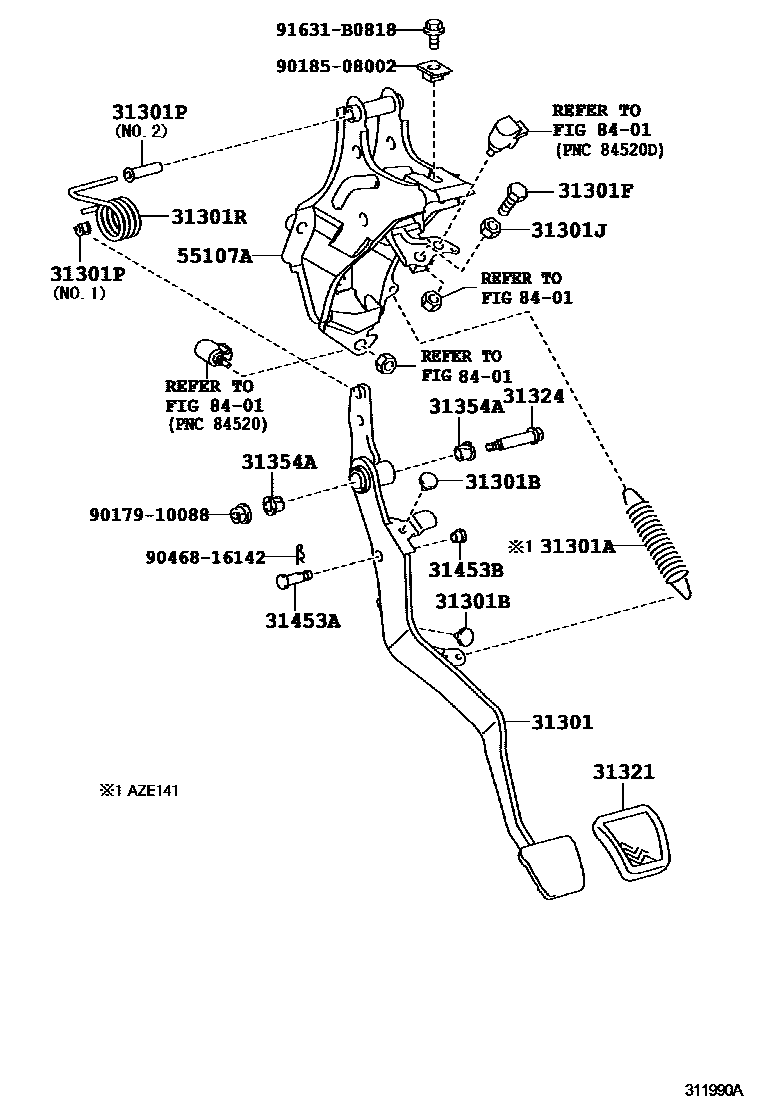

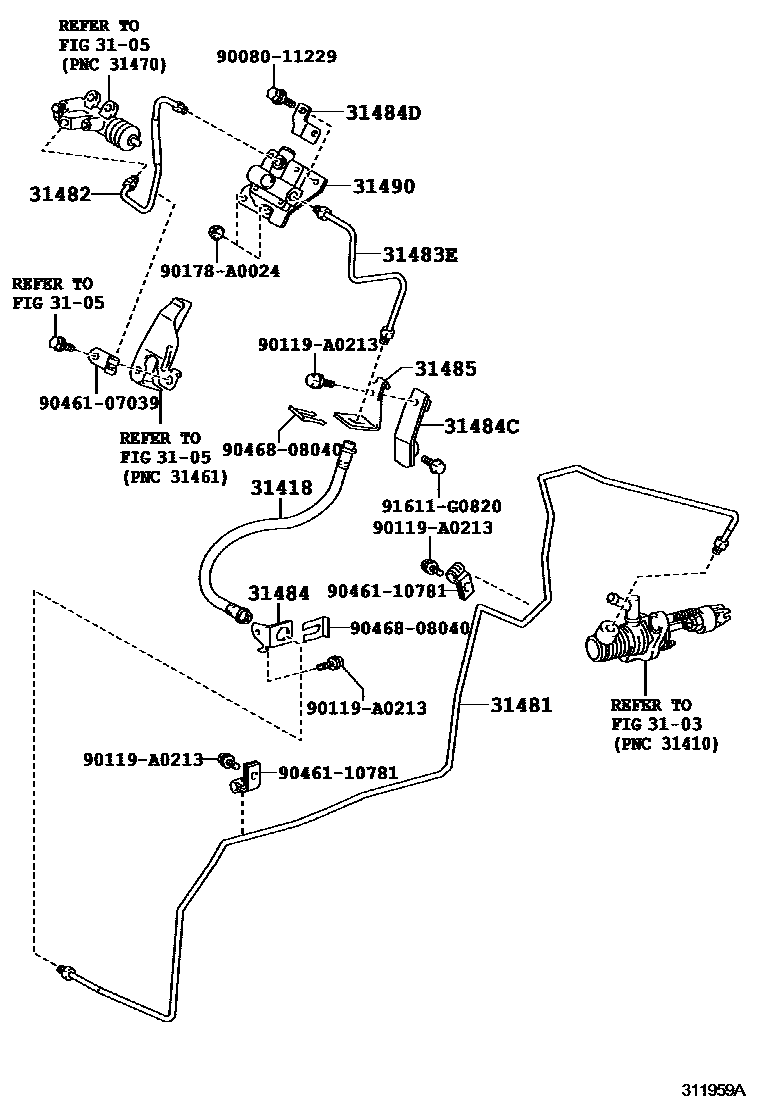

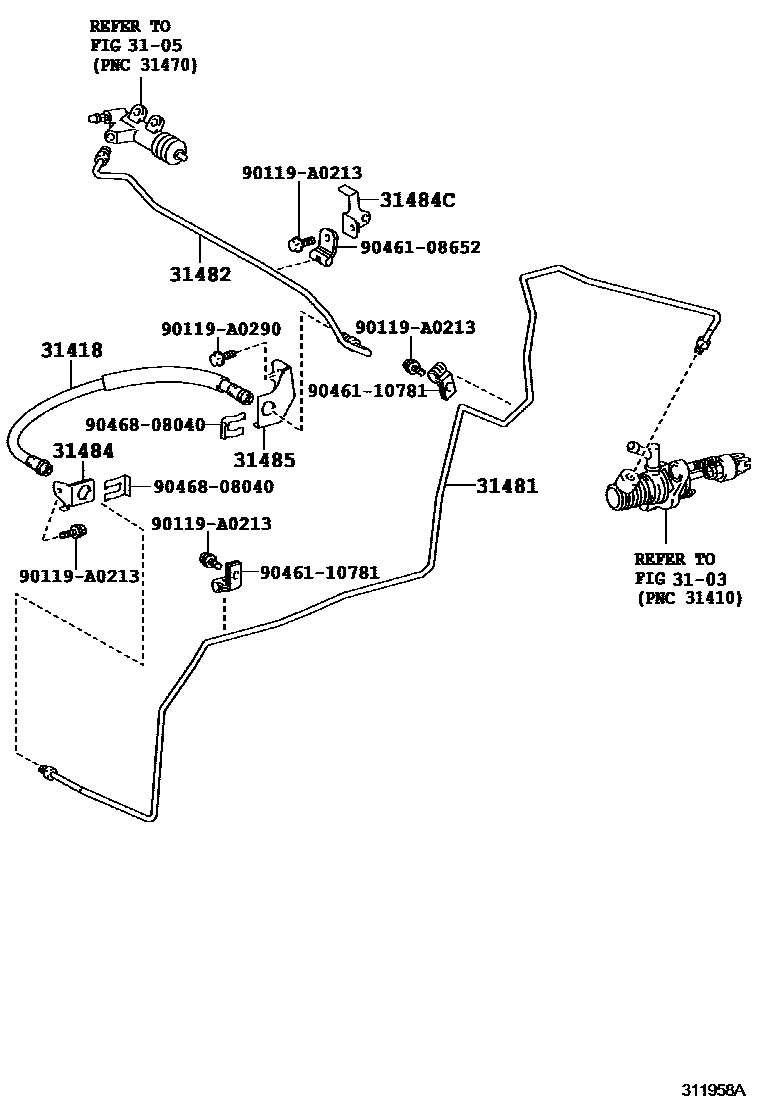

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02250 · 31301-02420 · 31301-02421 · 31301-02430 |
| 31301A | Spring (for clutch pedal) | 90507-16028 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 · 90101-10369 |
| 31301J | Nut (for clutch pedal stop) | 46441-12020 · 94120-41000 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90386-05017 · 90389-05019 |
| 31301R | Compression spring (for flip spring seat) | 90949-03100 · 90949-03138 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90109-10174 |
| 31354A | Bushing (for clutch pedal spring upper seat) | 90386-13015 |
| 31418 | clutch hose | 90947-A2021 · 90947-A2022 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08002 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-02280 · 31481-02480 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-02270 · 31482-33070 |
| 31483E | Clutch release bleeder pipe | 31483-02180 |
| 31484 | Flexible hose bracket (for clutch) | 31484-02130 |
| 31484C | No. 1 clutch tube bracket | 31484-20320 · 31484-52150 |
| 31484D | No. 2 clutch tube bracket | 31484-42080 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-02110 · 31484-02120 |
| 31490 | Clutch pressure accumulator assembly | 31490-42010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02200 · 55107-02340 · 55107-02341 |
