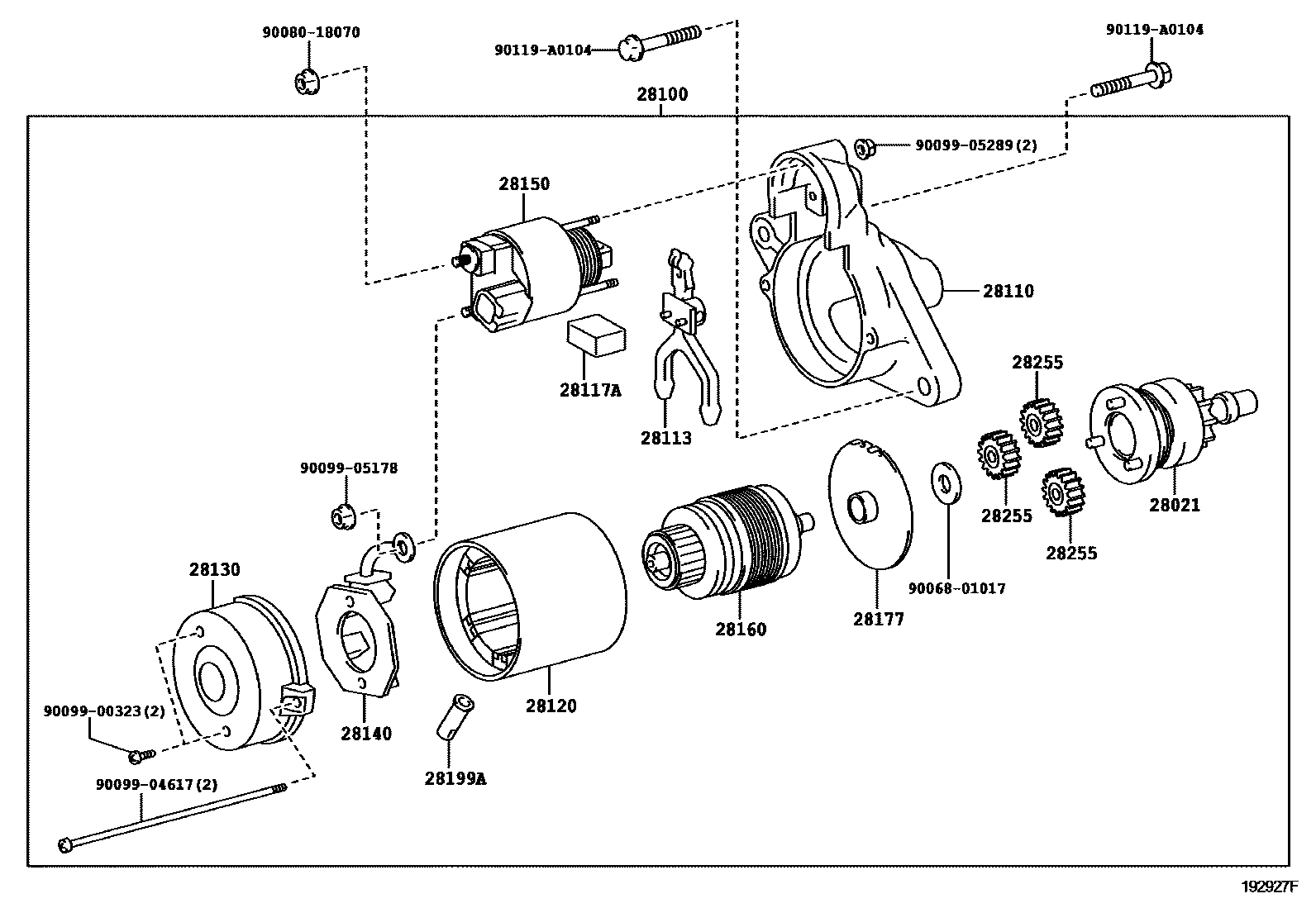

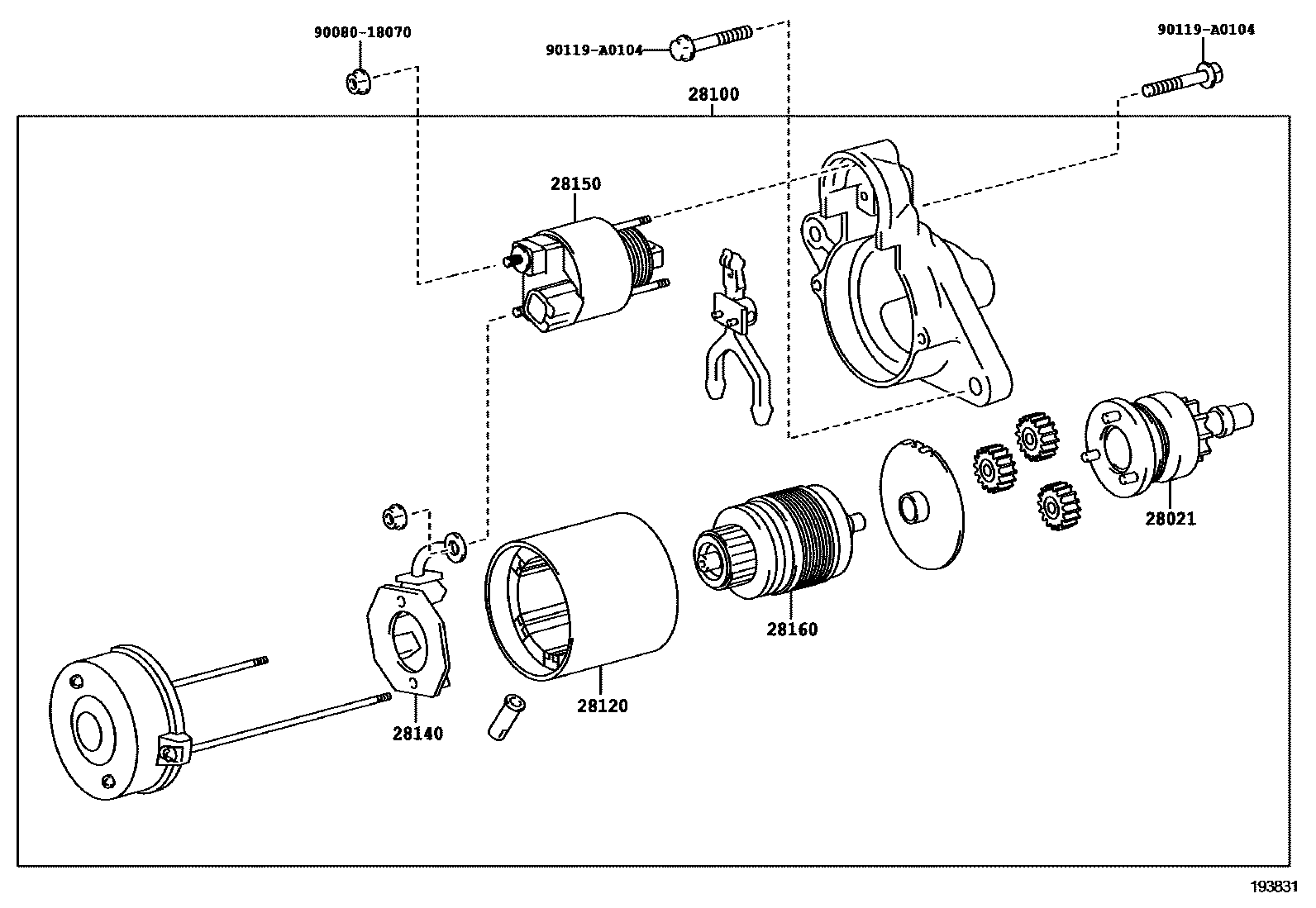

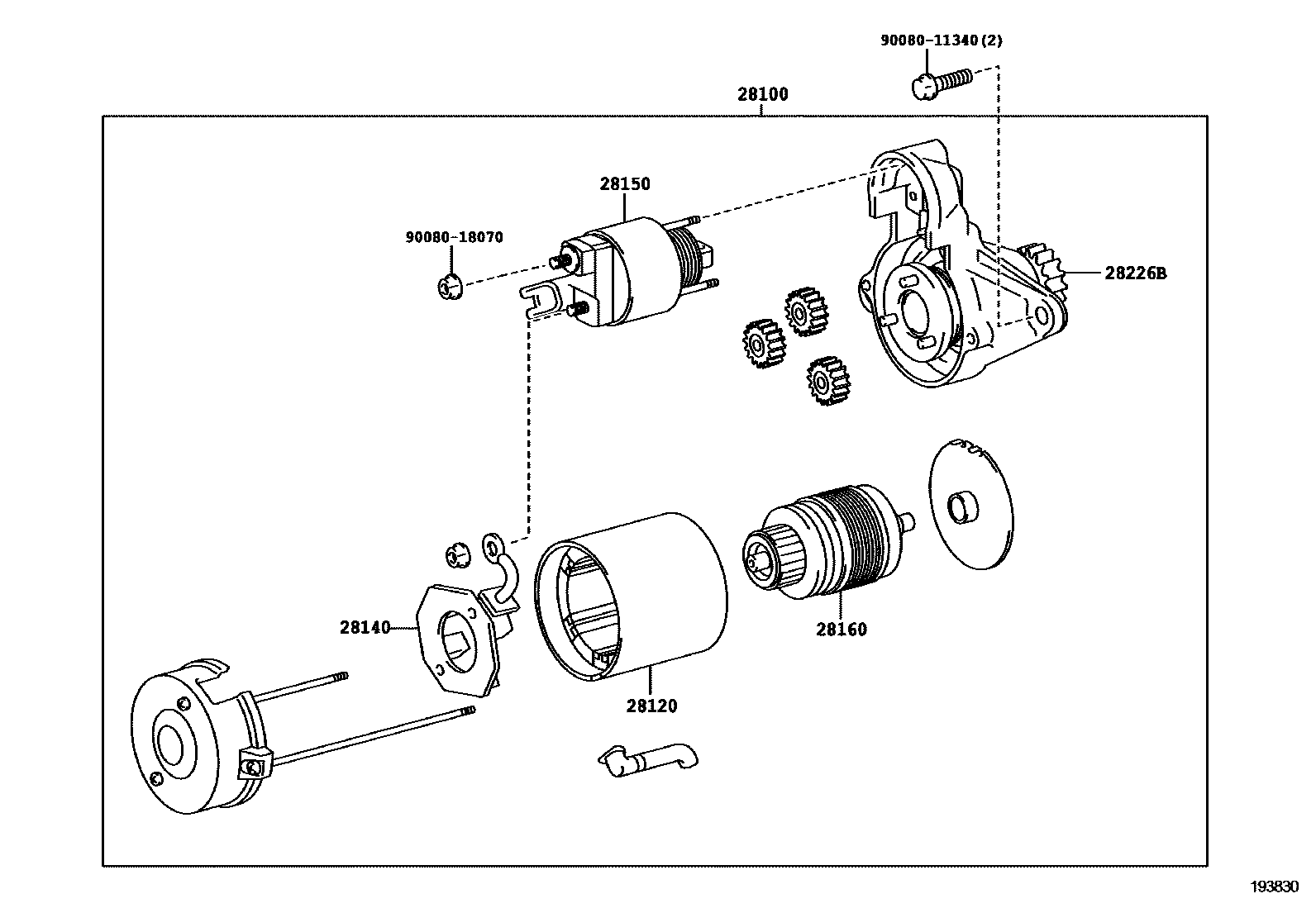

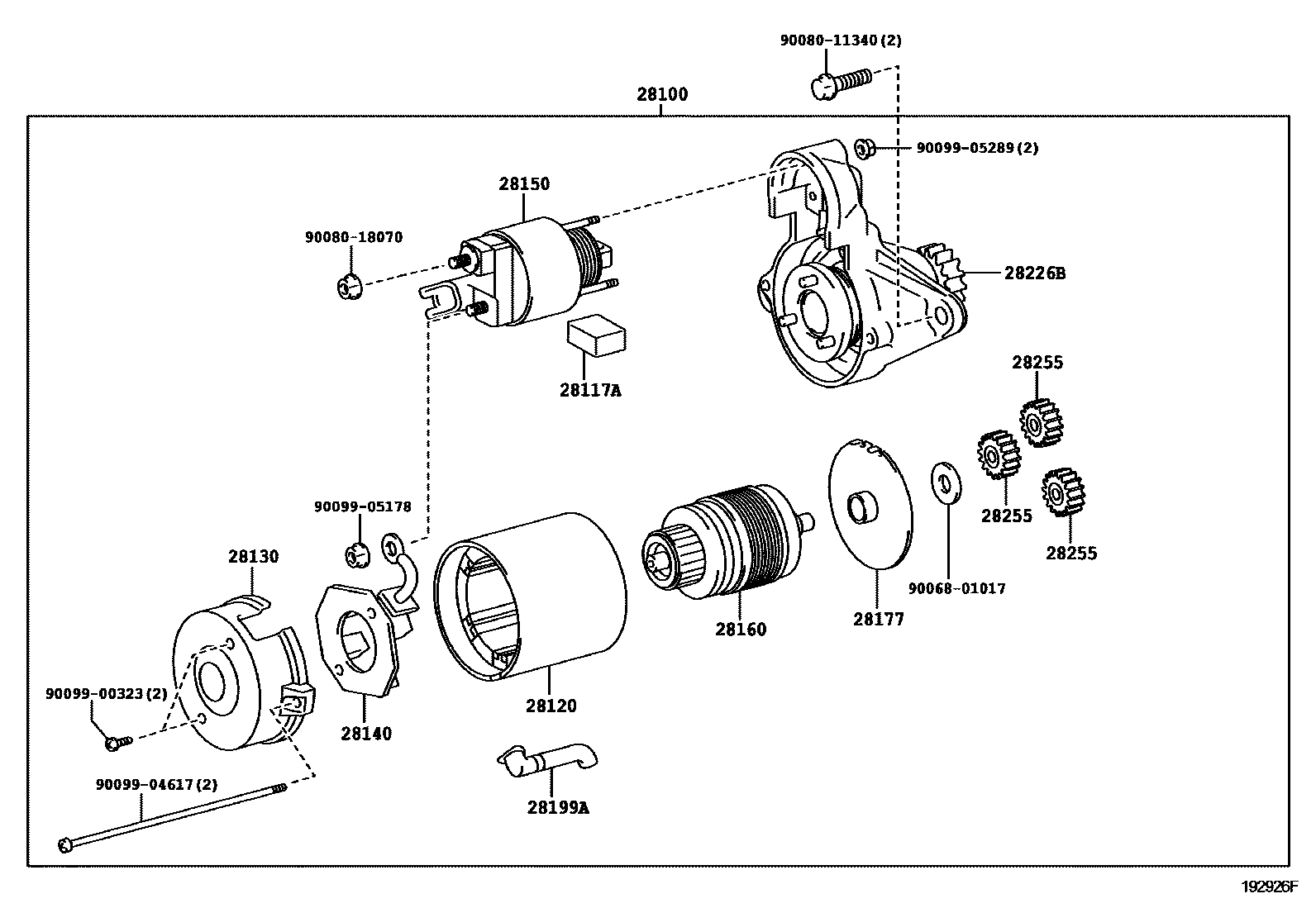

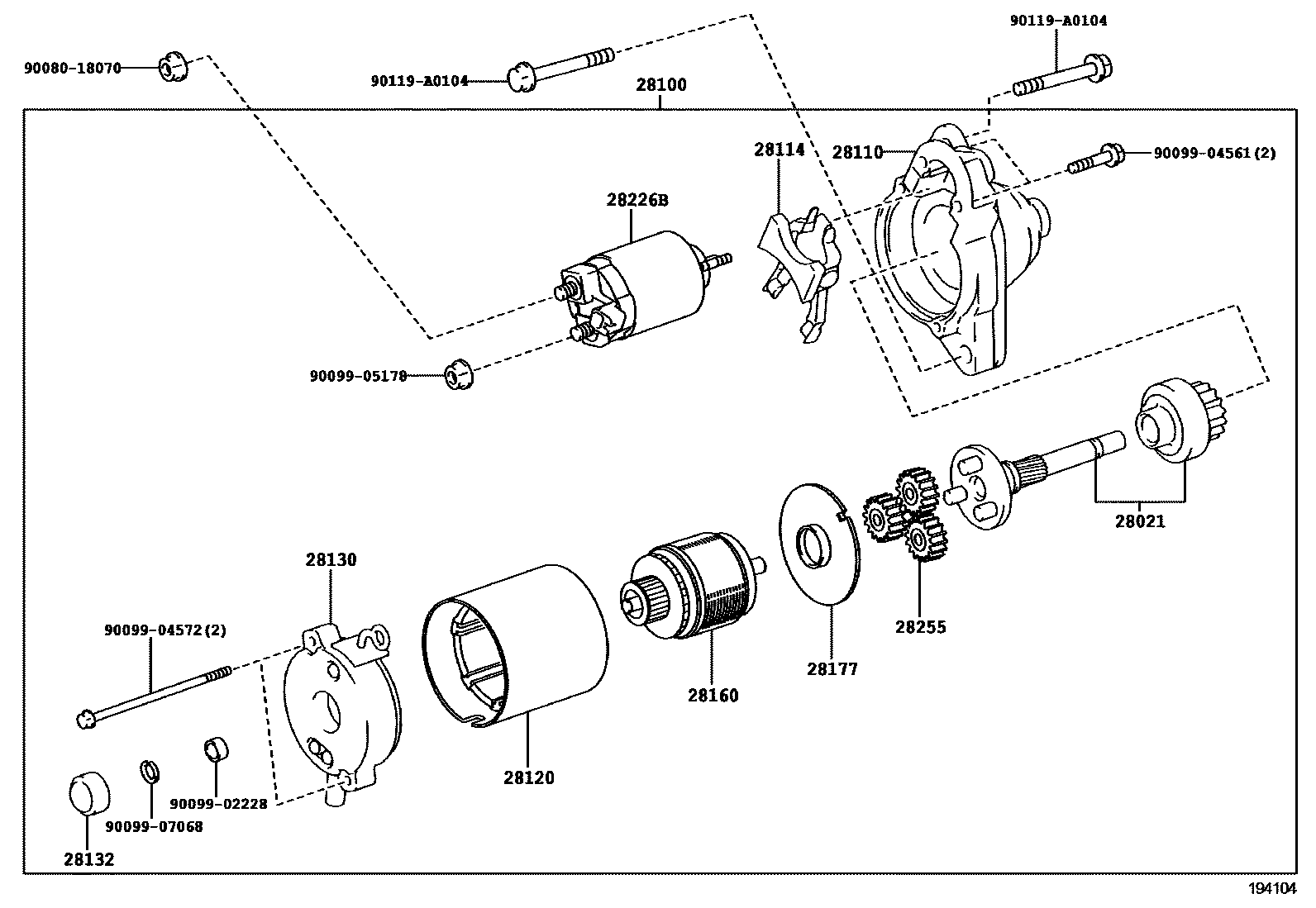

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21060 · 28021-37050 |
| 28100 | Starter assembly | 28100-0H090 · 28100-0H091 · 28100-0T050 · 28100-0T051 · 28100-0T260 |
| 28110 | Starter drive end housing assembly | 28110-0T050 · 28110-37040 · 28226-0T050 |
| 28113 | starter pinion drive rod | 28113-0T050 |
| 28114 | starter drive lever | 28114-21060 |
| 28117A | Rubber seal | 28117-0H090 |
| 28120 | Starter yoke assembly | 28120-0H090 · 28120-0T050 · 28120-28060 |
| 28130 | Starter commutator end frame assembly | 28130-0H090 · 28130-0T050 · 28130-37120 |
| 28132 | Starter bearing cap (for drive end housing) | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-0H100 · 28140-31090 · 28140-37050 |
| 28150 | Starter electromagnetic switch assembly | 28150-28060 · 28150-37050 · 28150-37060 · 28150-40090 |
| 28160 | Starter armature assembly | 28160-21060 · 28160-37050 |
| 28177 | Plate (for starter armature) | 28177-28040 · 28177-37050 |
| 28199A | Starter dust protection device | 28199-0H090 · 28199-0T050 |
| 28226B | starter magnetic switch | 28226-0A010 · 28226-0H090 · 28226-37120 |
| 28255 | Planetary gear | 28255-28040 · 28255-37050 |
