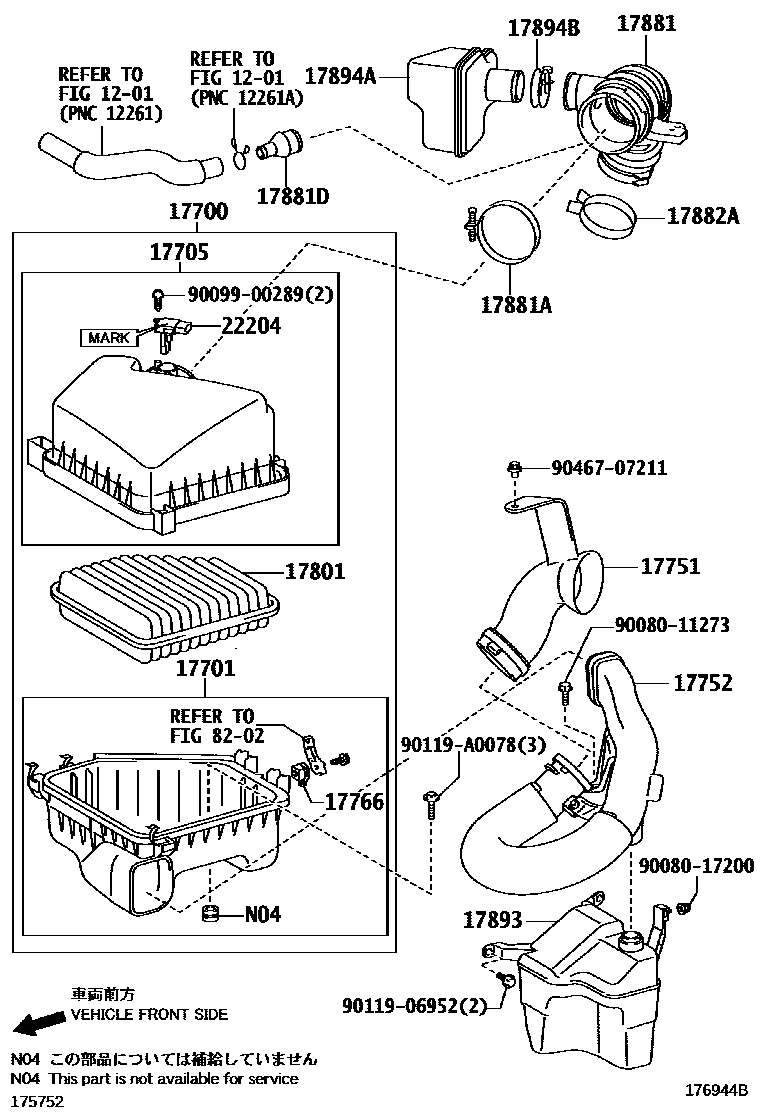

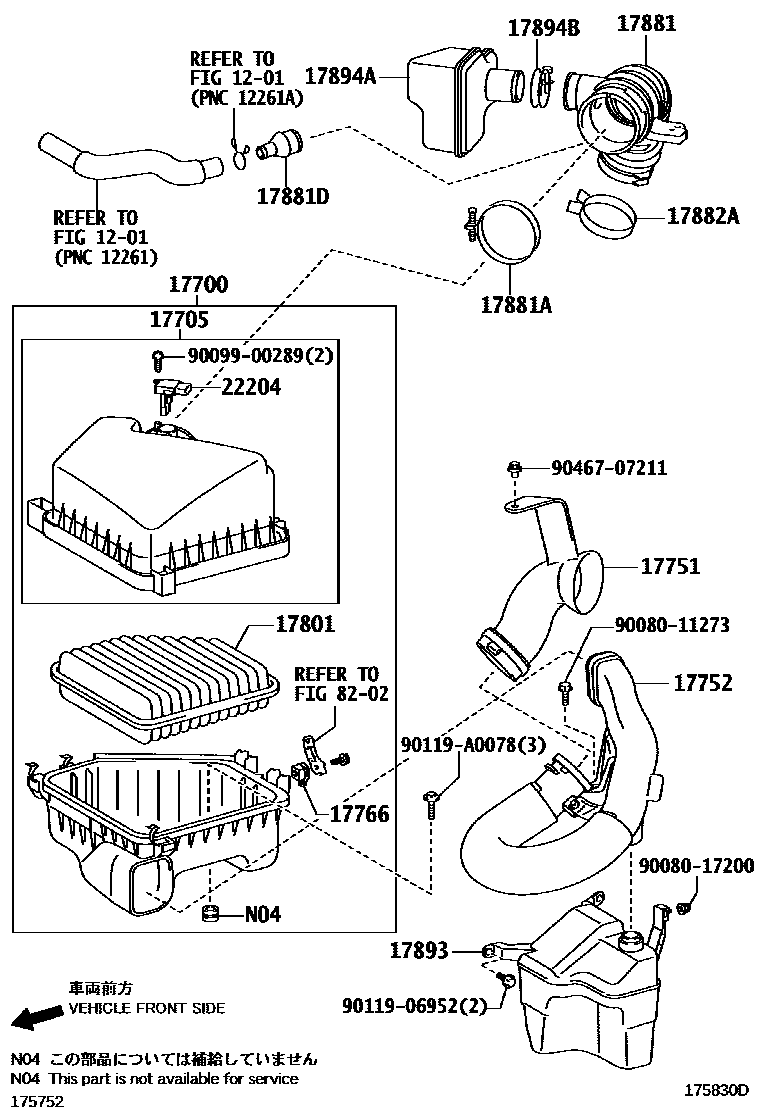

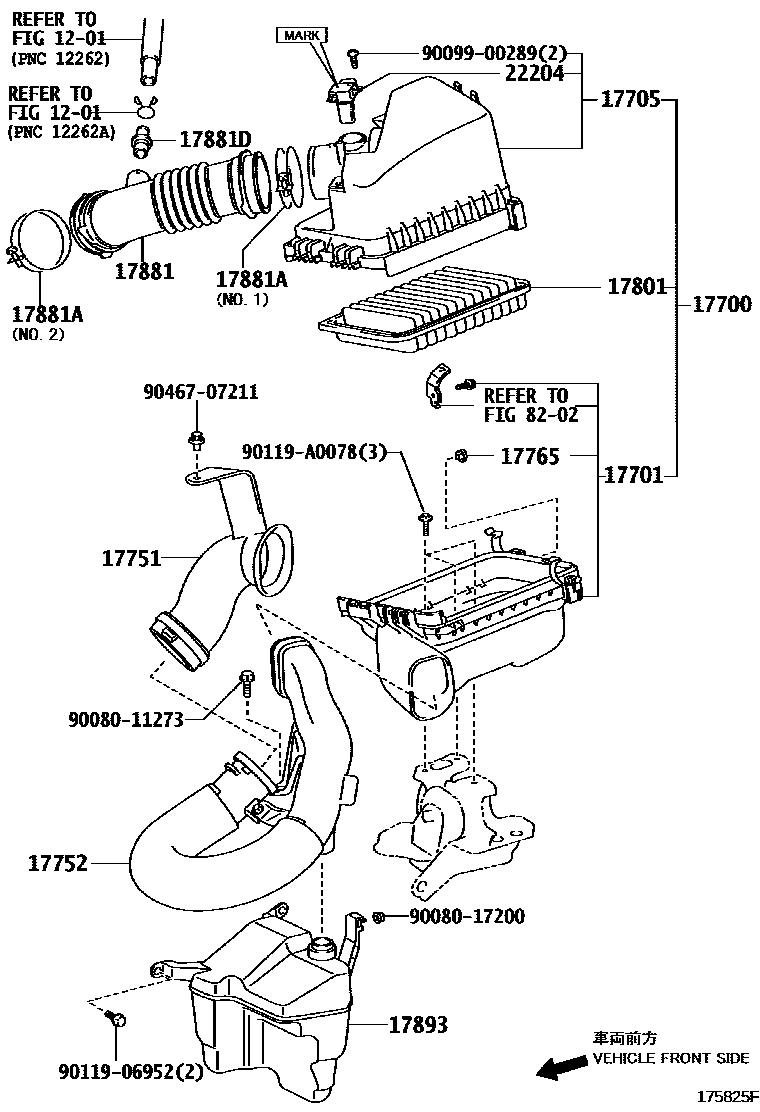

Toyota COROLLA Air Cleaner — Figure 1703
Toyota COROLLA EPC diagram 1703, Air Cleaner, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17700 | air filter assembly | 17700-0H160 · 17700-0H161 · 17700-0H162 · 17700-0T040 · 17700-0T041 · 17700-0T042 · 17700-0T043 |
| 17701 | Air filter housing sub-assembly | 17701-0H130 · 17701-0T040 |
| 17705 | Air filter cover sub-assembly | 17705-0H150 · 17705-0H151 · 17705-0H152 · 17705-0T040 · 17705-0T041 · 17705-0T042 · 17705-0T043 |
| 17751 | No. 1 air filter air inlet | 17751-0H060 · 17751-0T040 |
| 17752 | No. 2 air filter air inlet | 17752-0H010 · 17752-0T030 |
| 17765 | No. 1 air filter stay | 17706-22010 |
| 17766 | No. 2 air filter stay | 17706-22010 |
| 17801 | Air filter element sub-assembly | 17801-0T030 · 17801-AD010 |
| 17881 | No. 1 air cleaner hose | 17881-0H130 · 17881-0T040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10750 · 96111-10780 · 96111-10850 |
| 17881D | Connector tube (for air cleaner hose) | 17878-0V010 · 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 |
| 17893 | Intake resonator | 17893-0T020 |
| 17894A | No. 2 intake resonator | 17894-0H100 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10480 |
| 22204 | Intake air flow meter assembly | 22204-0H010 · 22204-0P010 · 22204-0T020 · 22204-0V010 · 22204-0V020 · 22204-28010 · 22204-31020 · 22204-37010 |
