Toyota COROLLA Exhaust Pipe — Figure 1702

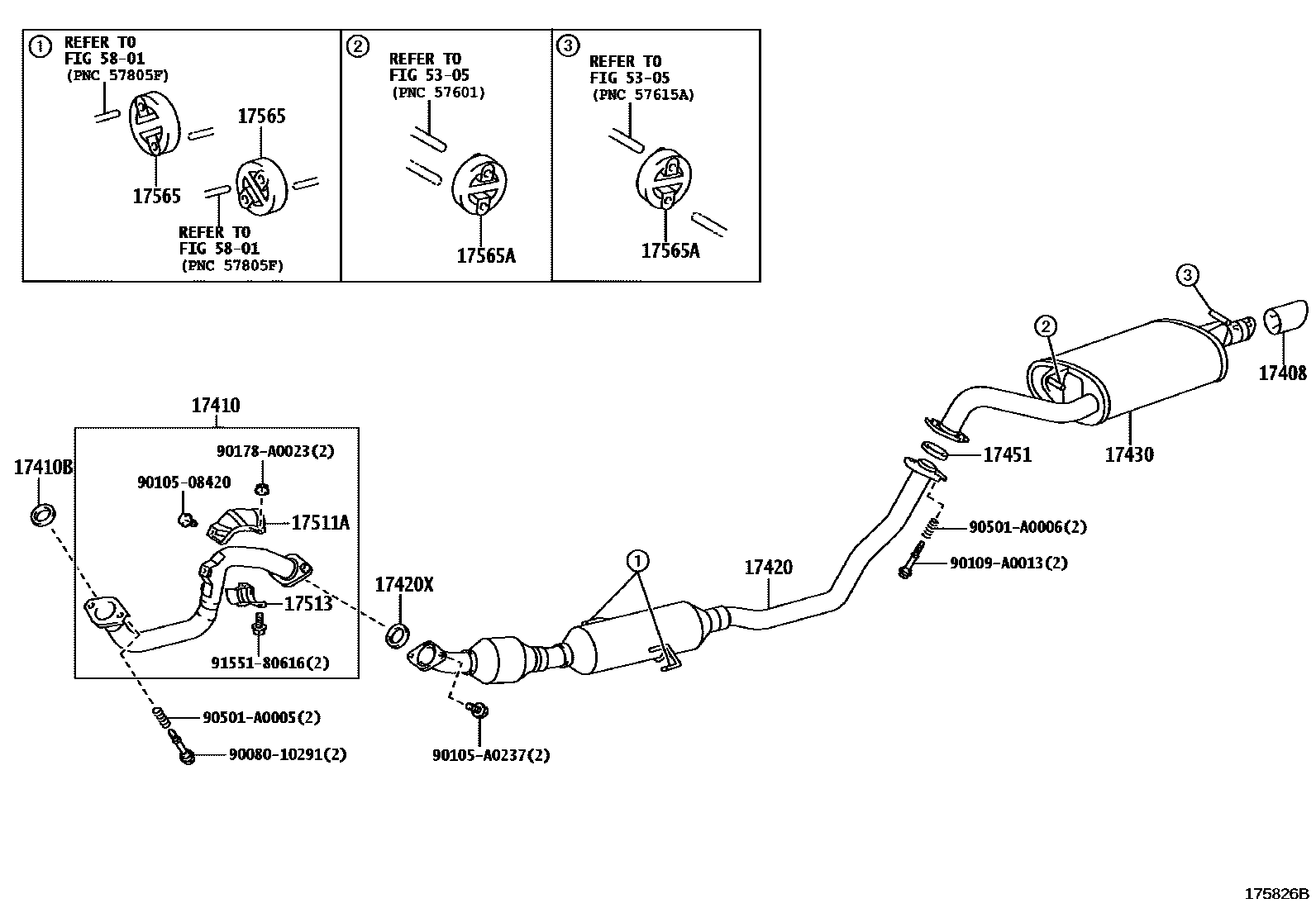

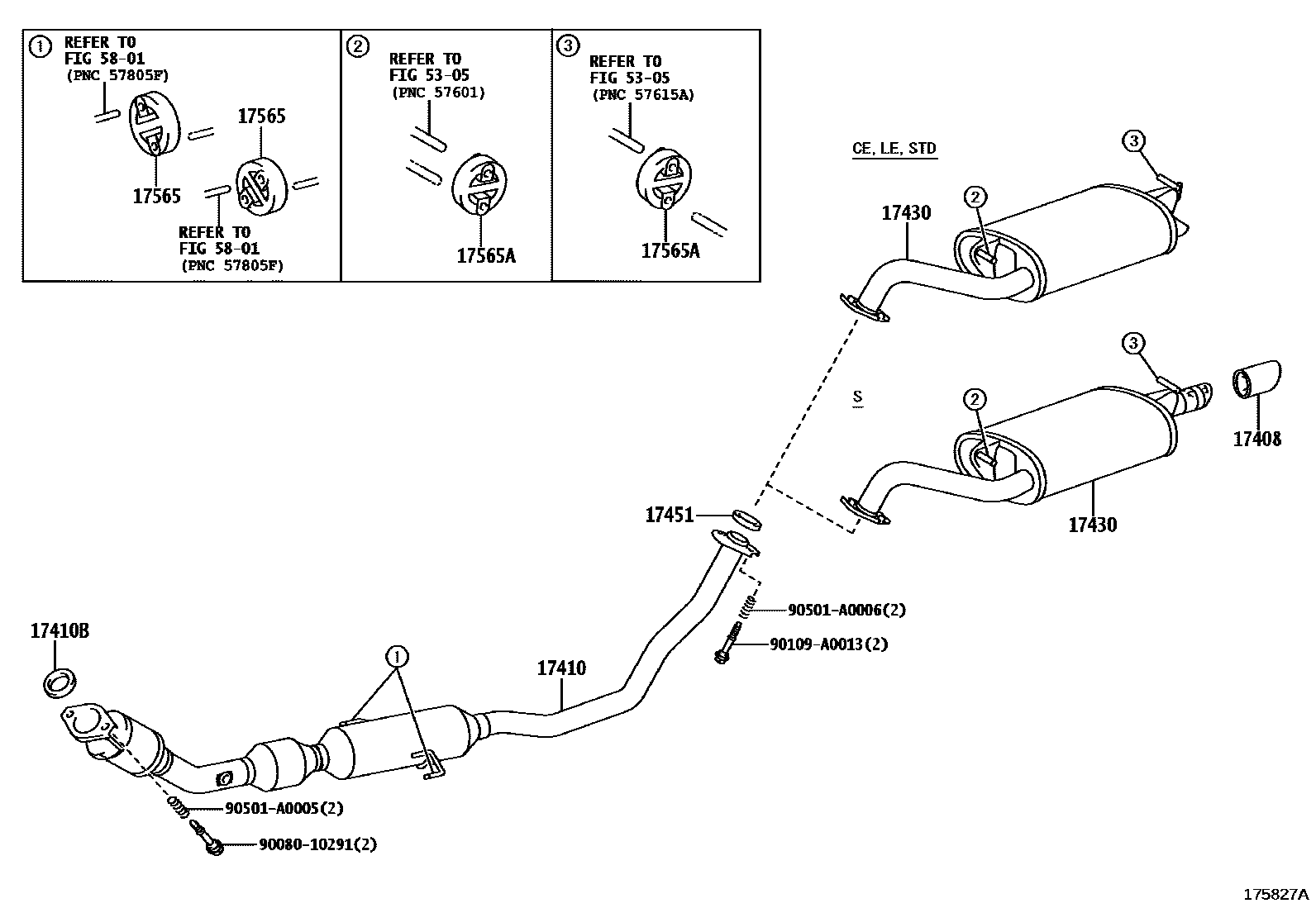

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-28030 · 17408-37010 |
| 17410 | Front exhaust pipe assembly | 17410-0D440 · 17410-0T080 · 17410-0T240 |
| 17410B | Exhaust pipe gasket | 17451-0D140 · 17451-0D150 |
| 17420 | Central exhaust pipe assembly | 17420-0D150 |
| 17420X | Center exhaust pipe liner | 90917-06078 |
| 17430 | Exhaust tailpipe assembly | 17430-0D460 · 17430-0T050 · 17430-0T060 |
| 17451 | Exhaust pipe gasket | 17451-0D130 · 17451-0D131 · 17451-0D132 |
| 17511A | No. 1 upper exhaust pipe heat insulation pad | 17511-0D050 |
| 17513 | No. 1 lower exhaust pipe insulation pad | 17513-0D060 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0P030 · 17565-0P031 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0P040 · 17565-0P041 |
