Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 16 PNC and OE references.

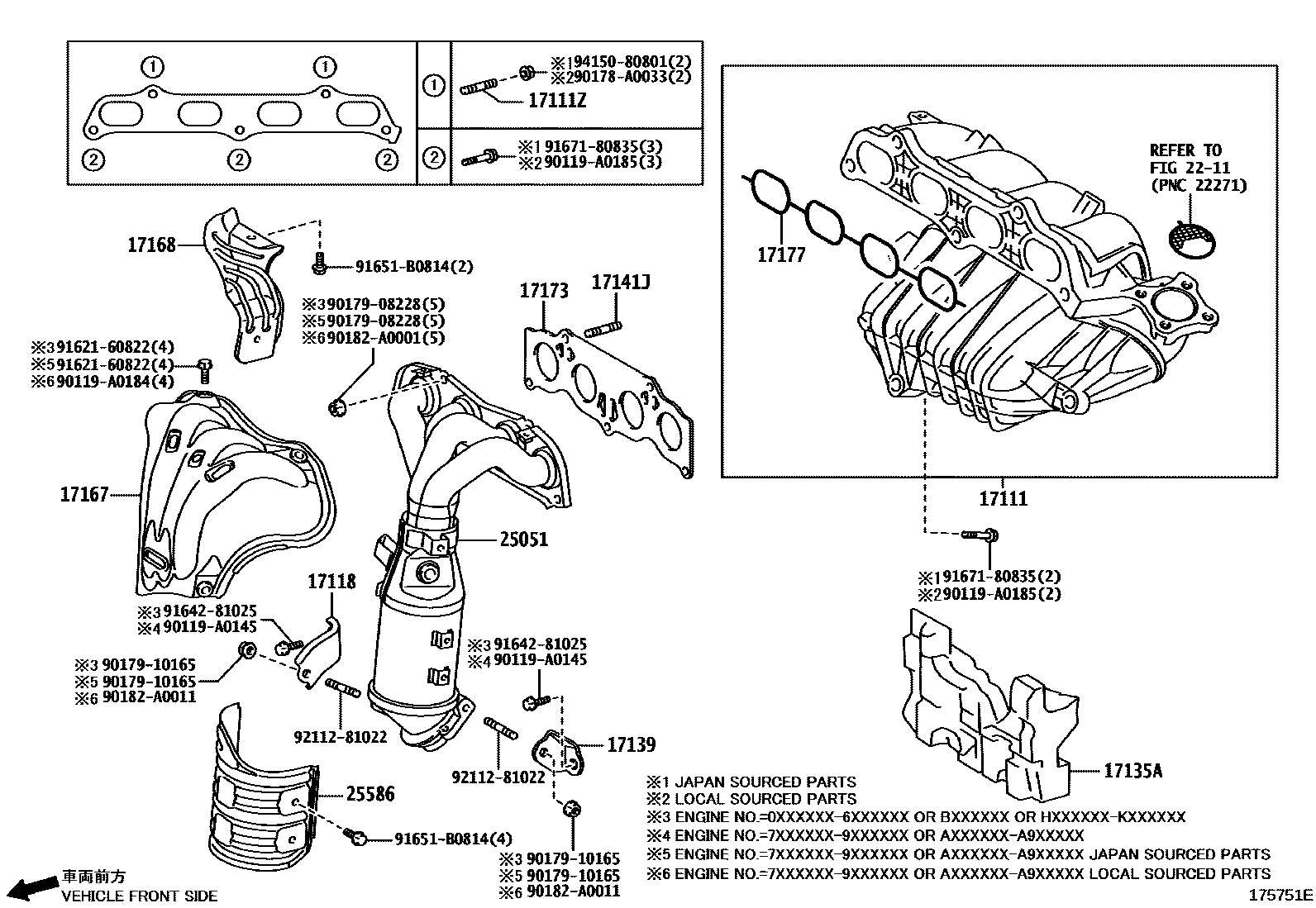

Toyota COROLLA Manifold EPC diagram — 175751E
Manifold — 175751E (200801 – 999999)
Toyota COROLLA Manifold EPC diagram — 176898F
Manifold — 176898F (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
12635hood connector90109-06385
17111Intake Manifold17120-0H080 · 17120-0H081 · 17120-0T010 · 17120-0T011 · 17120-0T012 · 17120-28170 · 17120-28171 · 17120-37020 · 17120-37021 · 17120-37022
17111ZStud bolts (for intake manifold to cylinder head)90126-08026 · 90126-A0006
17118Manifold stays17118-0T060 · 17118-28080 · 17118-37010
17135AIntake manifold No. 1 heat shield17135-0H011 · 17135-28011 · 17135-37010
17138BIntake manifold stay17138-0T010 · 17138-37010 · 17138-37011
17139No. 2 manifold stay17139-28050
17141exhaust manifold17141-0T040 · 17141-0T080 · 17141-37051 · 17141-37130
17141JStuds (for right exhaust manifold)90126-08037 · 90126-A0007
17159Studs (for manifold to cylinder head)90126-08026 · 90126-08052 · 90126-A0006 · 90126-A0019
17167Exhaust manifold No. 1 heat shield17167-0H040 · 17167-0T060 · 17167-28060 · 17167-37011 · 17167-37110
17168Exhaust manifold No.2 insulation pad17168-0T090 · 17168-28030 · 17168-37100
17173Gasket (exhaust manifold to cylinder head)17173-0H020 · 17173-0T030 · 17173-28010 · 17173-37010
17177No. 1 gasket (intake manifold to cylinder head)17177-0H010 · 17177-0H020 · 17177-0T020 · 17177-28010 · 17177-28031 · 17177-37030
25051Exhaust manifold three-way catalytic converter sub-assembly25051-28350
25586No. 1 manifold three-way catalytic converter vibration isolation pad25586-28090
