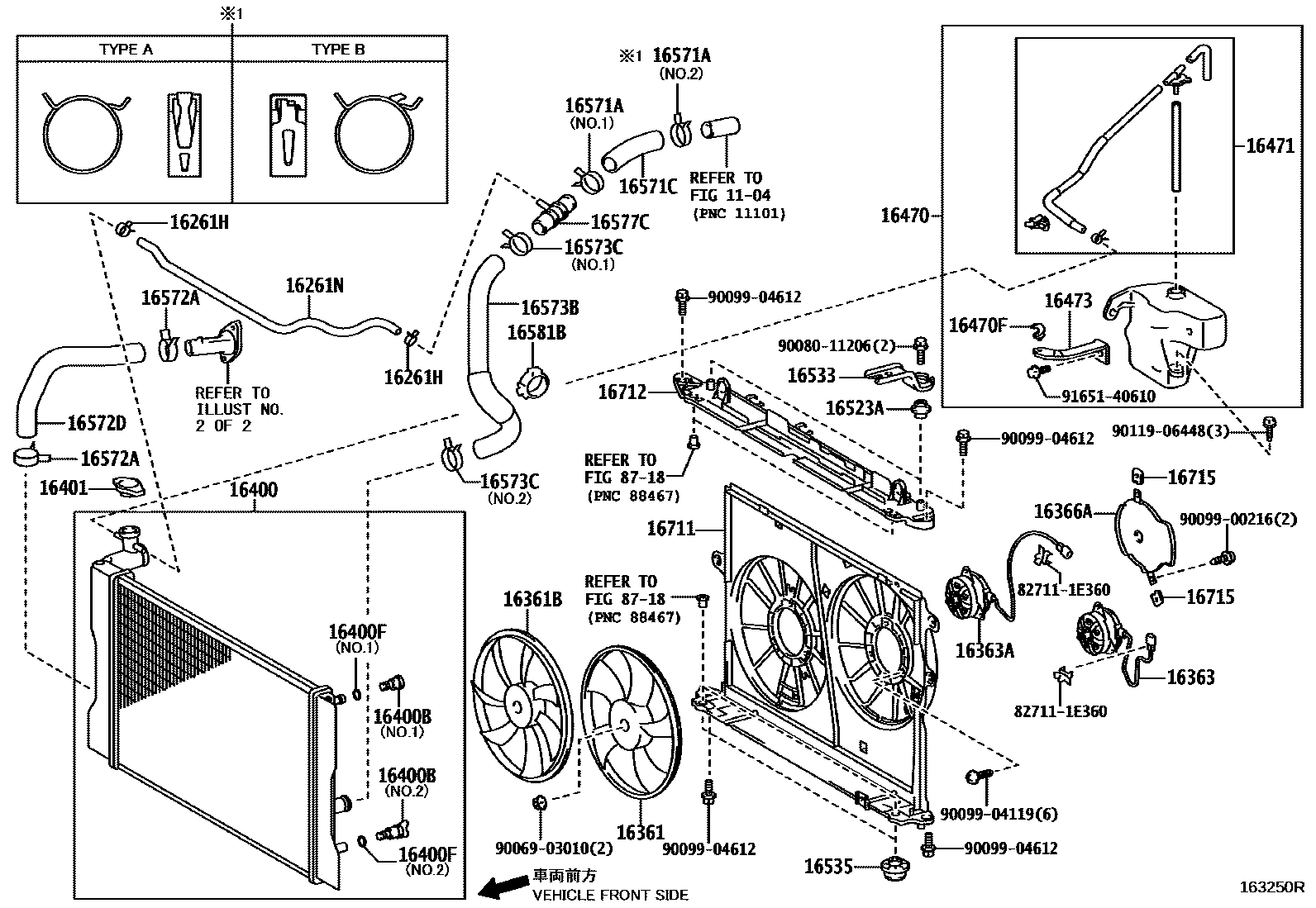

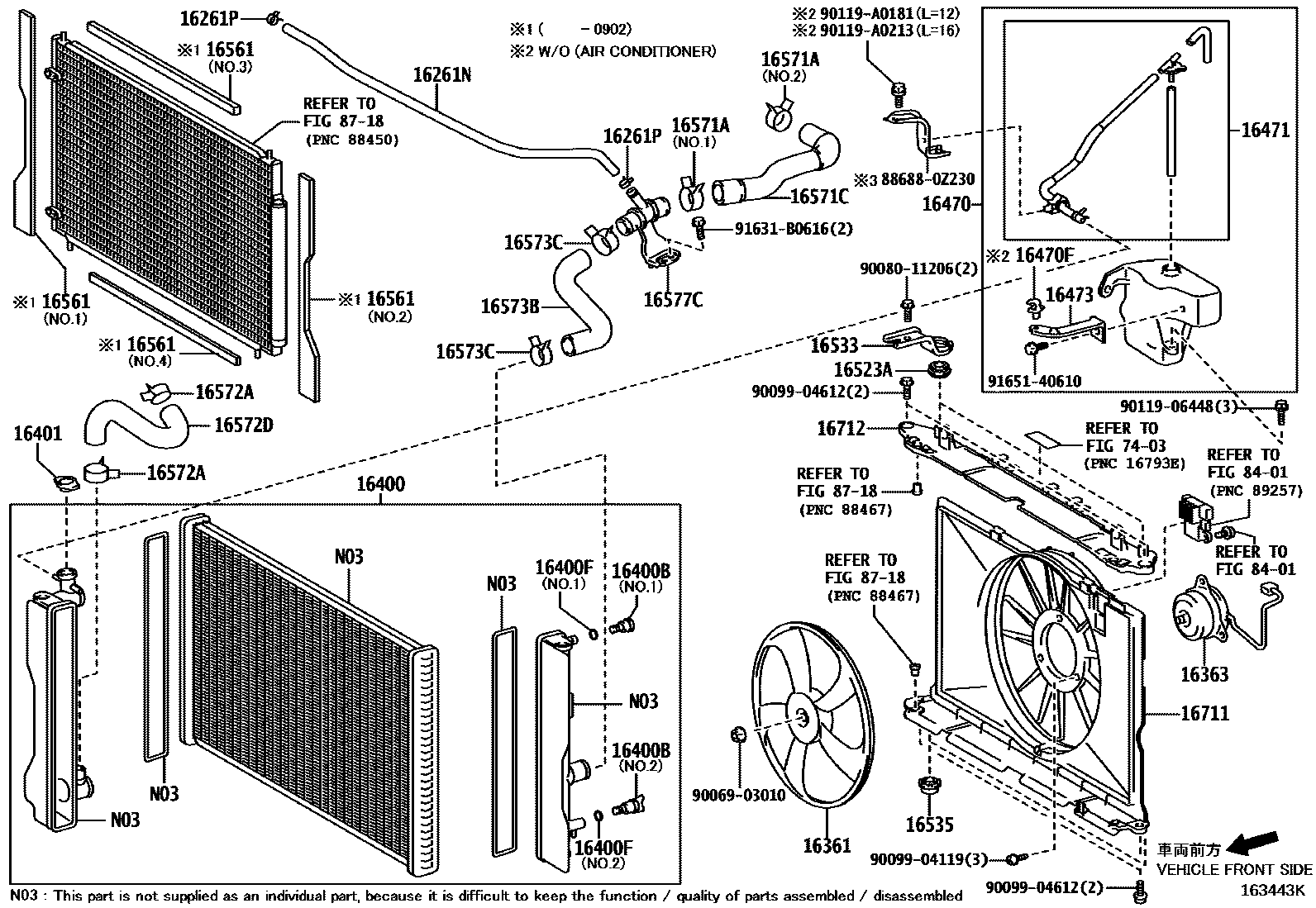

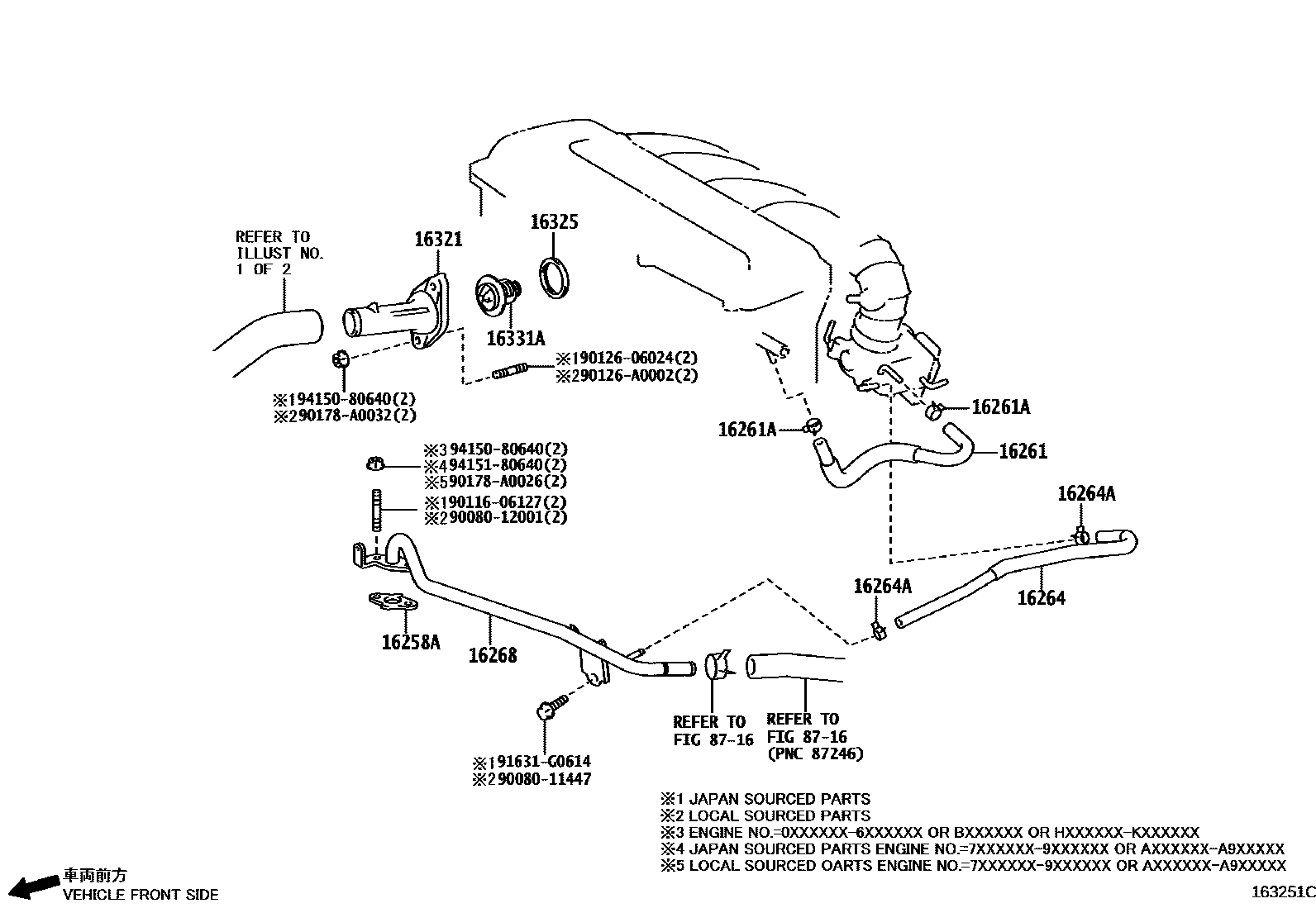

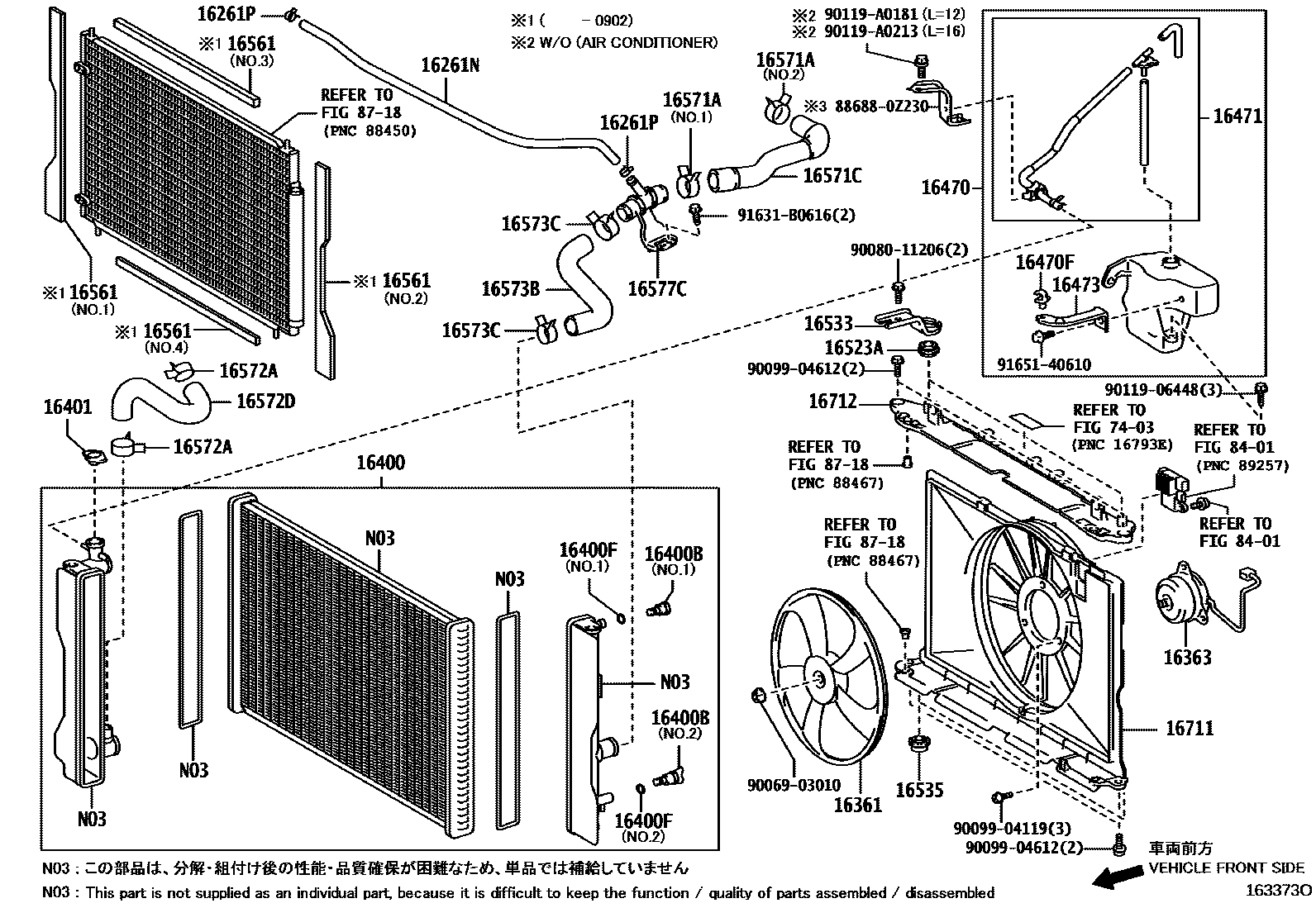

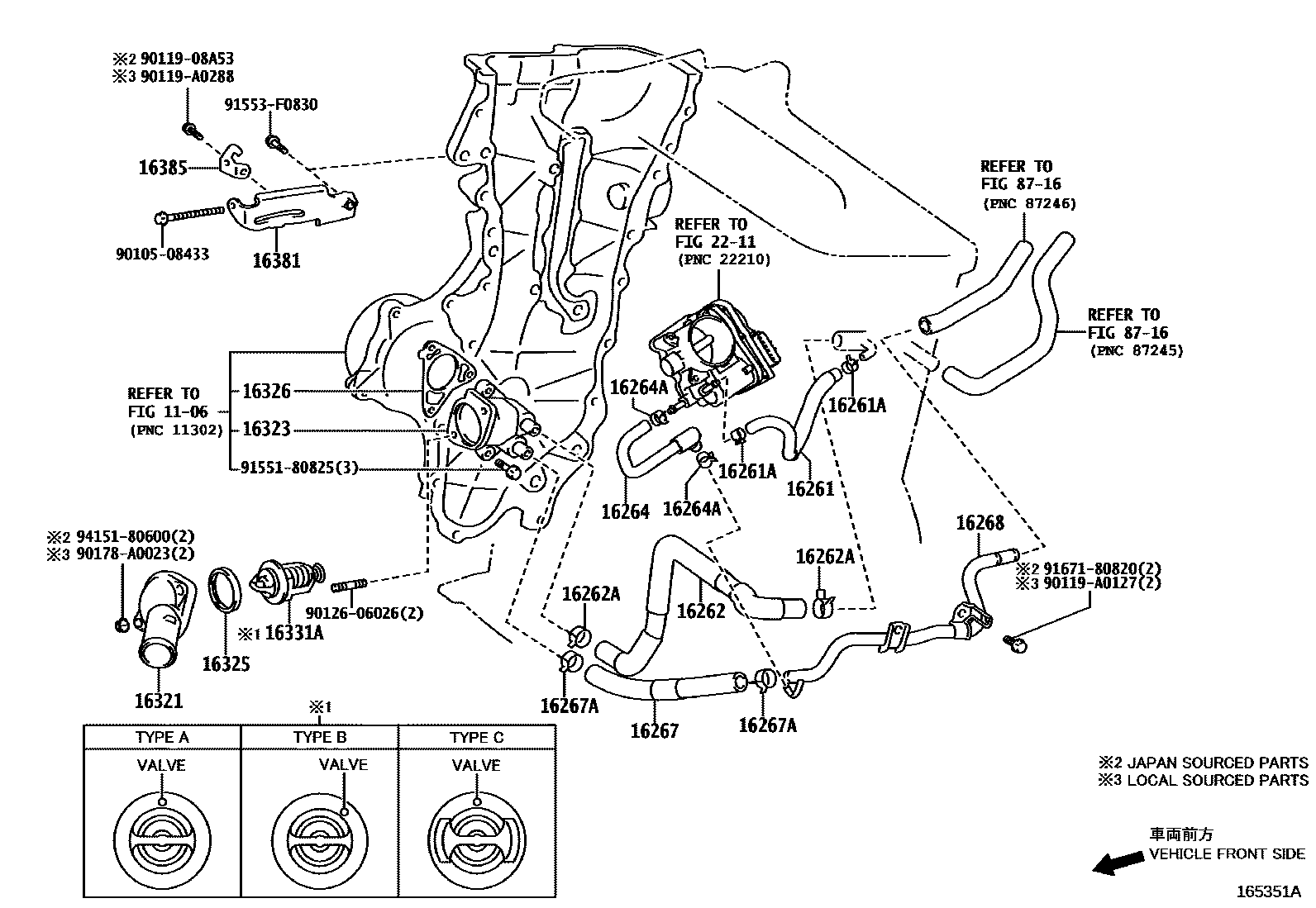

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258A | Pad (for heater return) | 16258-0H010 · 16258-28030 |
| 16261 | HOSE, WATER BY-PASS | 16261-28130 · 16261-37021 · 16261-37022 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-A0017 · 96137-41501 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90467-15022 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16261-0H100 · 16261-0T020 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90467-15022 |
| 16262 | water inlet hose | 16262-37010 |
| 16262A | Clamp (for water inlet hose) | 90466-A0023 · 96136-42501 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-28120 · 16264-37021 · 16264-37022 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-A0017 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-37010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-A0023 · 96136-42501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0H070 · 16268-0T090 · 16268-28010 · 16268-37030 · 16268-37031 |
| 16321 | water inlet | 16321-0H011 · 16321-28020 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16323-0T020 · 16323-37020 · 16323-37021 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0T030 · 16325-28010 · 16325-62010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-37010 |
| 16331A | thermostat | 90916-03129 · 90916-03136 · 90916-03144 · 90916-03145 · 90916-A3002 |
| 16361 | Fan | 16361-0H250 · 16361-0T040 |
| 16361B | Fan No. 2 | 16361-0H260 |
| 16363 | cooling fan motor | 16363-0H200 · 16363-0T020 |
| 16363A | Cooling fan motor No. 2 | 16363-0H210 |
| 16366A | Cooling fan motor vibration isolation pad | 16366-0H200 |
| 16381 | Fan belt adjustment lever | 16381-0T020 · 16381-37010 · 16381-37030 |
| 16385 | Fan belt adjustment slider | 16385-0T020 · 16385-37010 |
| 16400 | Radiator assembly | 16410-0H250 · 16410-0H251 · 16410-0H260 · 16410-0H261 · 16410-0T030 · 16410-0T040 |
| 16400B | Radiator drain switch screw plug | 16417-21280 · 16417-28530 |
| 16400F | Seal (for radiator drain switch) | 16418-20290 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-20353 · 16401-72090 |
| 16470 | Radiator reservoir assembly | 16470-0T040 |
| 16470F | Radiator reservoir hose clamp | 90469-12012 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-0T020 |
| 16473 | Bracket (for radiator reservoir) | 16473-0T040 |
| 16523A | Radiator bracket cushion | 16523-0T020 |
| 16533 | Radiator upper bracket | 16533-0T020 |
| 16535 | Radiator lower support | 16535-0H100 · 16535-0T020 |
| 16561 | Seal No. 1 (radiator to bracket) | 16561-0T010 · 16561-0T020 · 16561-0T030 · 16561-0T040 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-37002 · 90466-A0019 · 90466-A0020 · 96136-43901 · 96136-44301 |
| 16571C | Radiator hose No. 1 | 16571-0H180 · 16571-0T040 · 16571-0T210 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-A0020 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-0H150 · 16572-0T040 |
| 16573B | Radiator hose No. 3 | 16573-0H020 · 16573-0T040 |
| 16573C | No. 3 radiator hose clamp or clip | 90466-A0020 · 96136-44301 |
| 16577C | radiator pipe | 16577-0H010 · 16577-0T030 |
| 16581B | Hose clamp (for radiator hose) | 16581-26040 · 16581-28070 |
| 16711 | fan cover | 16711-0H180 · 16711-0T040 |
| 16712 | No. 2 fan cover | 16712-0H010 · 16712-0T020 |
| 16715 | fan cover bracket | 88688-03020 |
