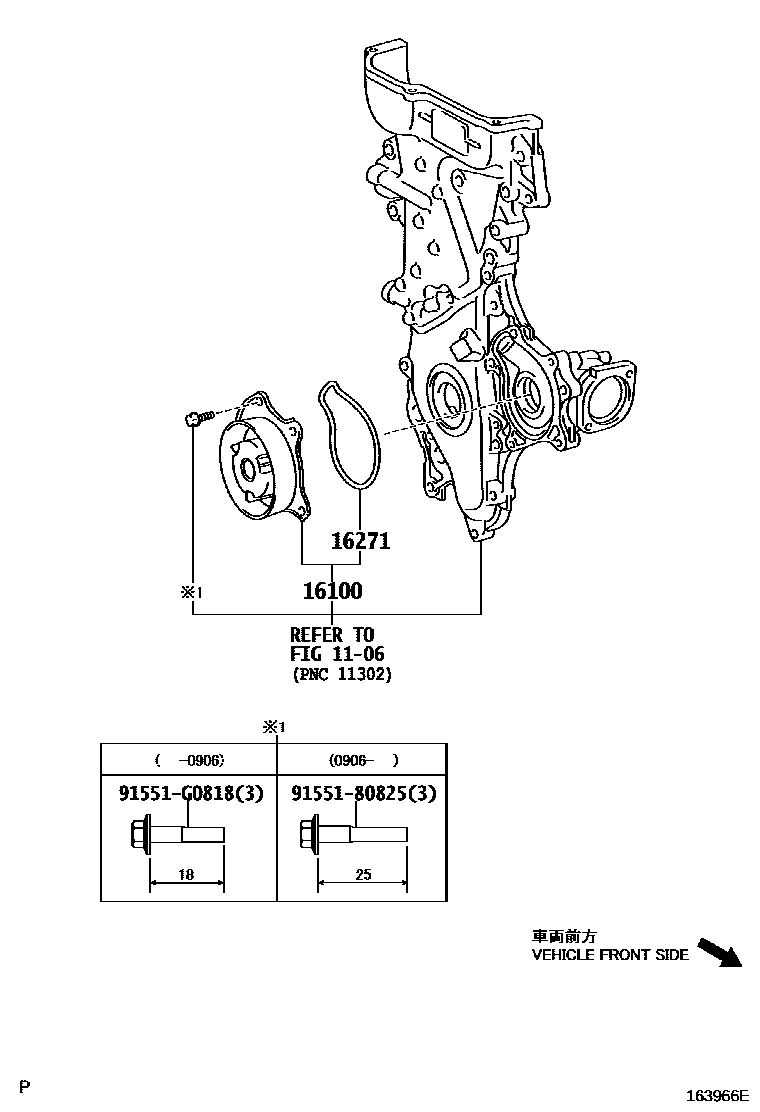

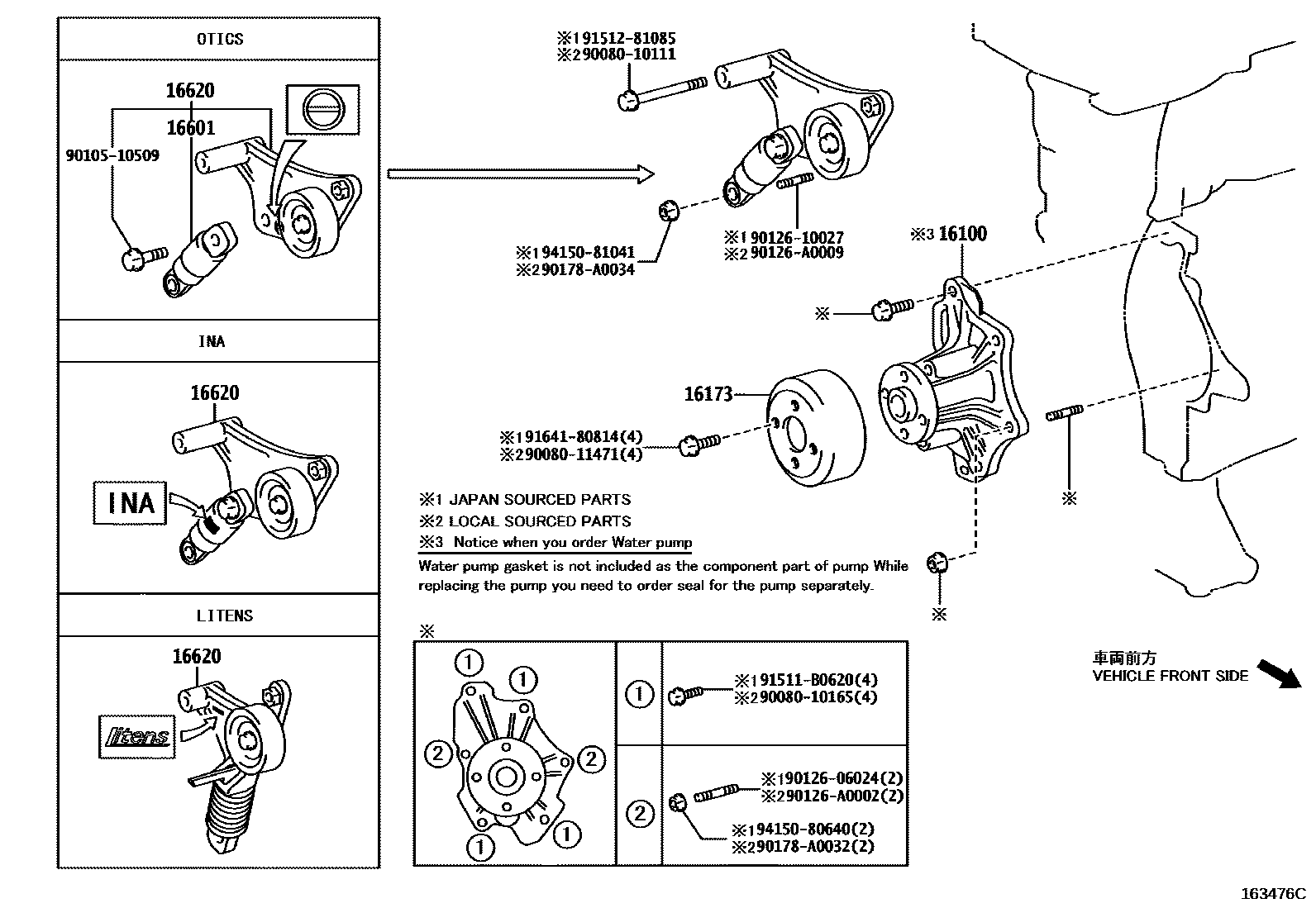

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-09560 · 16100-0H010 · 16100-28041 · 16100-39465 · 16100-39466 |
| 16173 | water pump pulley | 16173-28020 |
| 16271 | water pump gasket | 16271-37010 |
| 16601 | Poly V-belt tensioner sub-assembly | 16601-28021 |
| 16620 | Poly V-belt tensioner assembly | 16620-0H020 · 16620-0H021 · 16620-28041 |
