Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 2 images and 11 PNC and OE references.

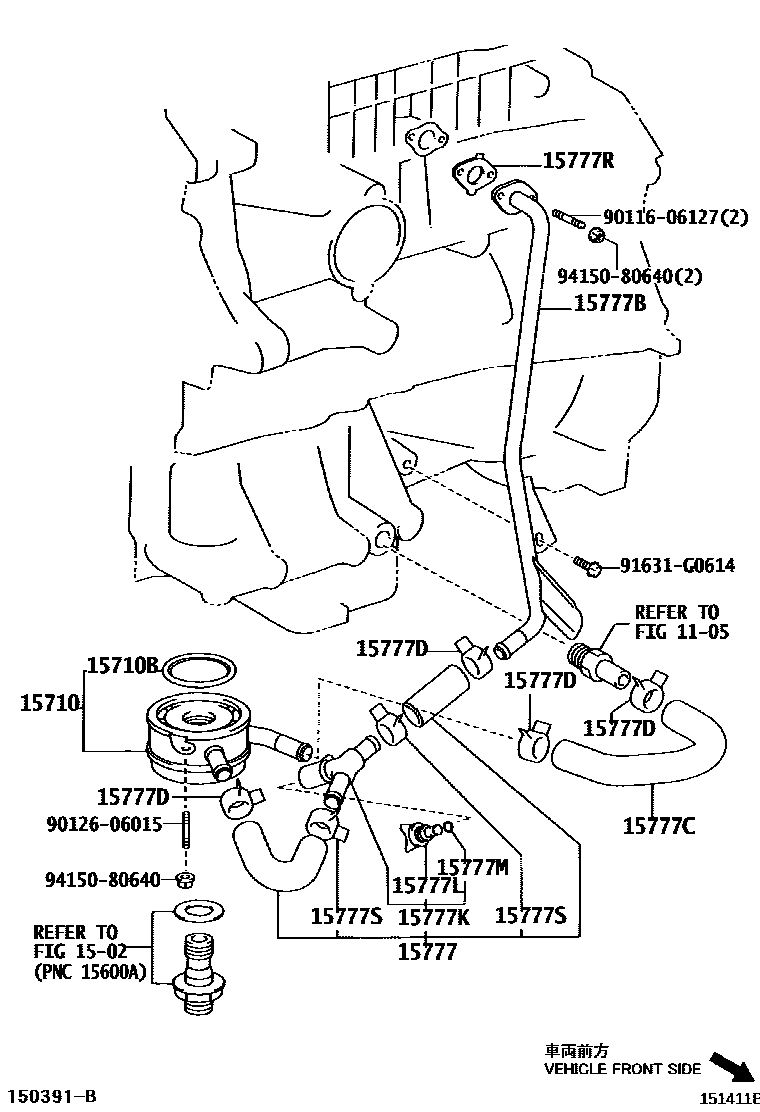

Toyota COROLLA Engine Oil Cooler EPC diagram — 151411B
Engine Oil Cooler — 151411B (200801 – 201212)

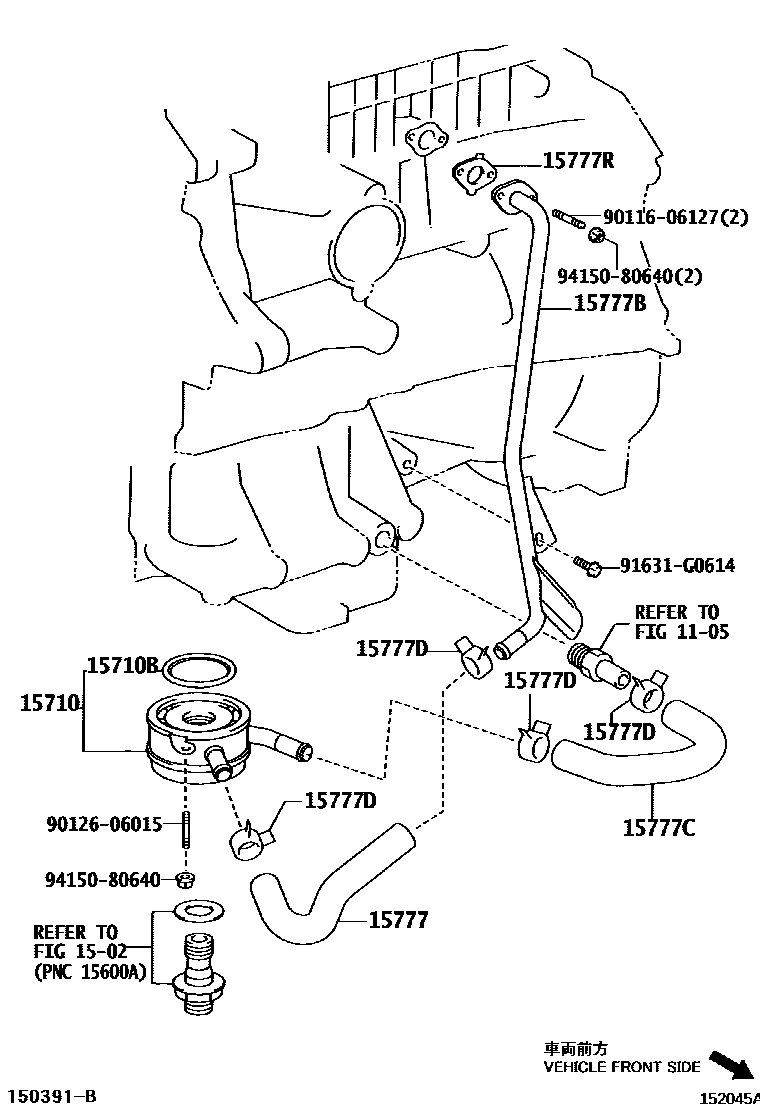

Toyota COROLLA Engine Oil Cooler EPC diagram — 152045A
Engine Oil Cooler — 152045A (201212 – 999999)

PNC and OE references

PNCPart nameOE numbers
15710Oil cooler assembly15710-28020
15710BO-ring (for oil cooler)90301-52006
15777oil cooler hose16267-28020 · 16267-28080
15777Boil cooler pipe16279-28010
15777Coil cooler hose16281-28010
15777DHose clamp or clip (for oil cooler hose)96134-41900 · 96136-42201
15777KOil drain switch assembly (for oil cooler hose)90910-09119
15777LAir plug (for oil cooler oil drain switch)23322-54010
15777MO-ring (for oil cooler oil drain switch)16492-21050
15777RGasket (for oil cooler pipe joint bolts)16258-28040
15777SHose clips or clips96134-41900
