Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 3 images and 9 PNC and OE references.

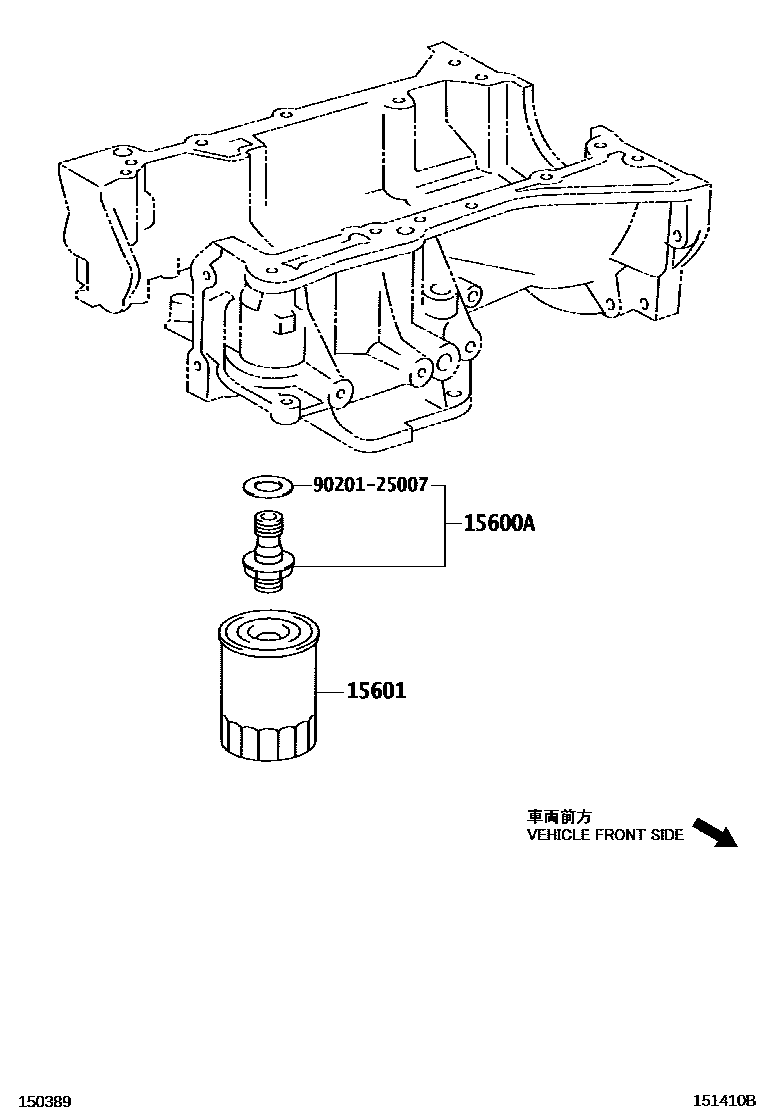

Toyota COROLLA Oil Filter EPC diagram — 151410B
Oil Filter — 151410B (200801 – 999999)

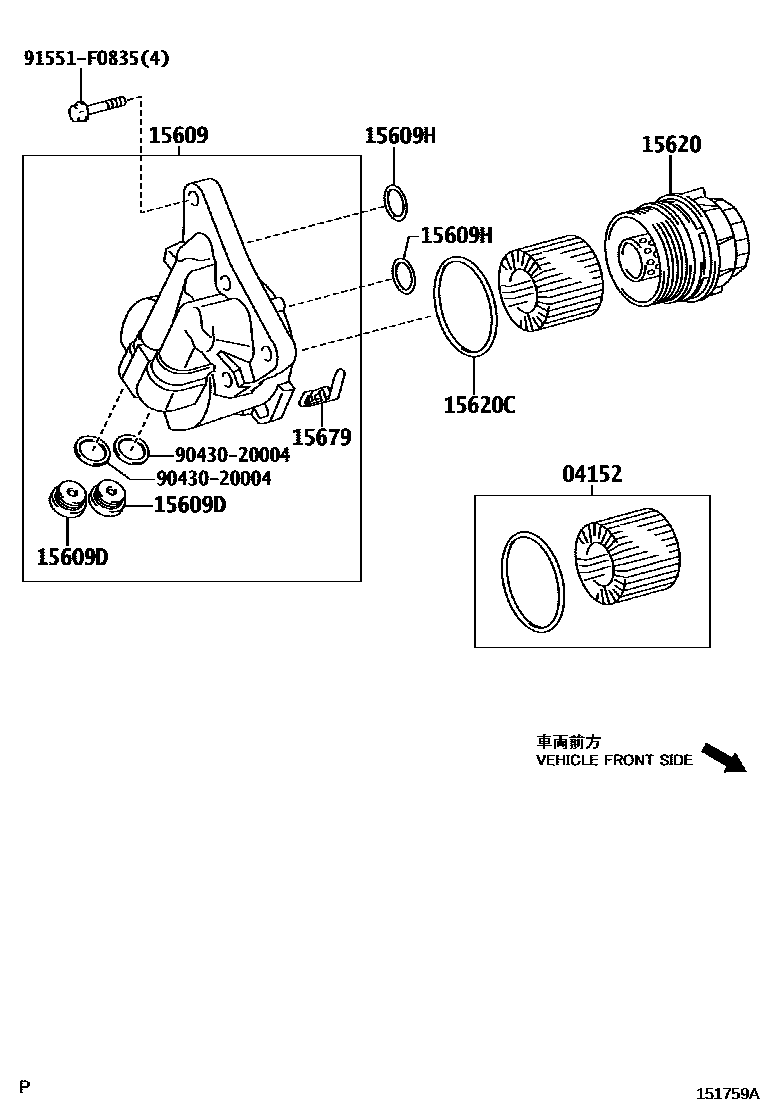

Toyota COROLLA Oil Filter EPC diagram — 151759A
Oil Filter — 151759A (200801 – 999999)

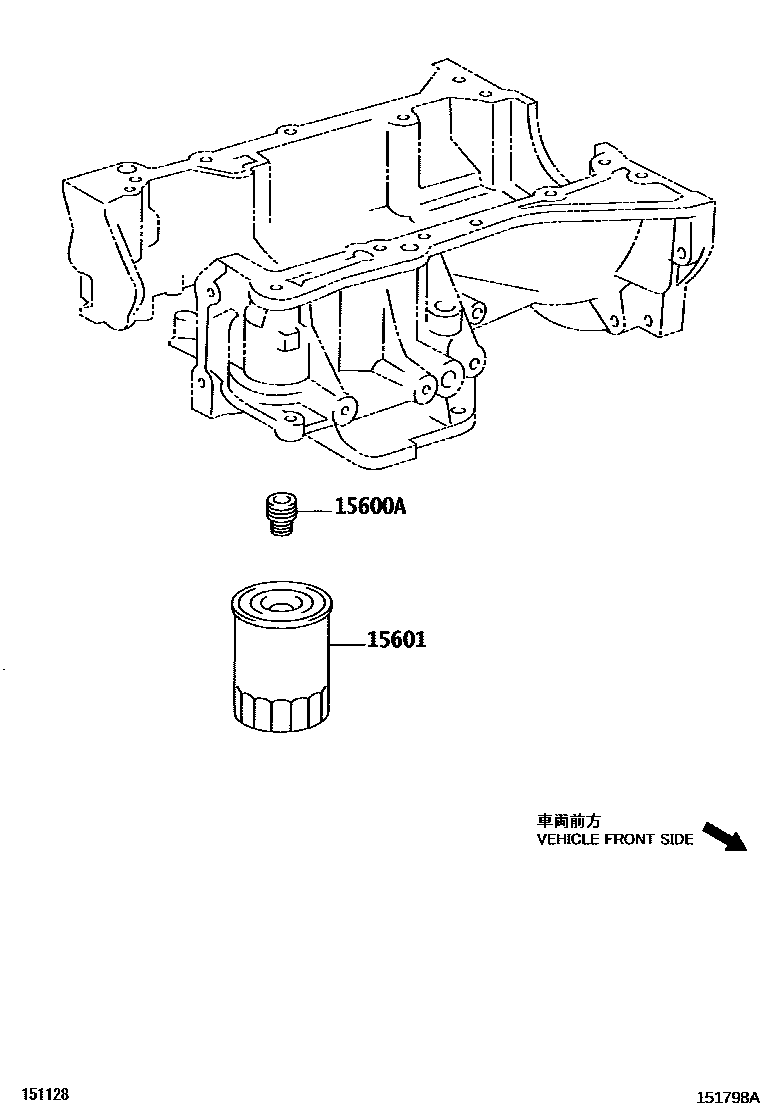

Toyota COROLLA Oil Filter EPC diagram — 151798A
Oil Filter — 151798A (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
04152Oil Filter Element Kit04152-37010
15600AConnector (for oil filter)15695-28010 · 90904-04006
15601Oil filter sub-assembly90915-10004 · 90915-TA002
15609Oil filter bracket sub-assembly15609-37020 · 15609-37040
15609DStraight threaded plug with head (for oil filter bracket)90341-20002
15609HO-ring (for oil filter bracket)90301-A0034 · 96723-24020
15620Oil filter cover assembly15620-37010
15620CGasket (for oil filter cover)90301-69011
15679Oil filter bracket clip15679-37010
