Toyota COROLLA Engine Oil Pump — Figure 1501

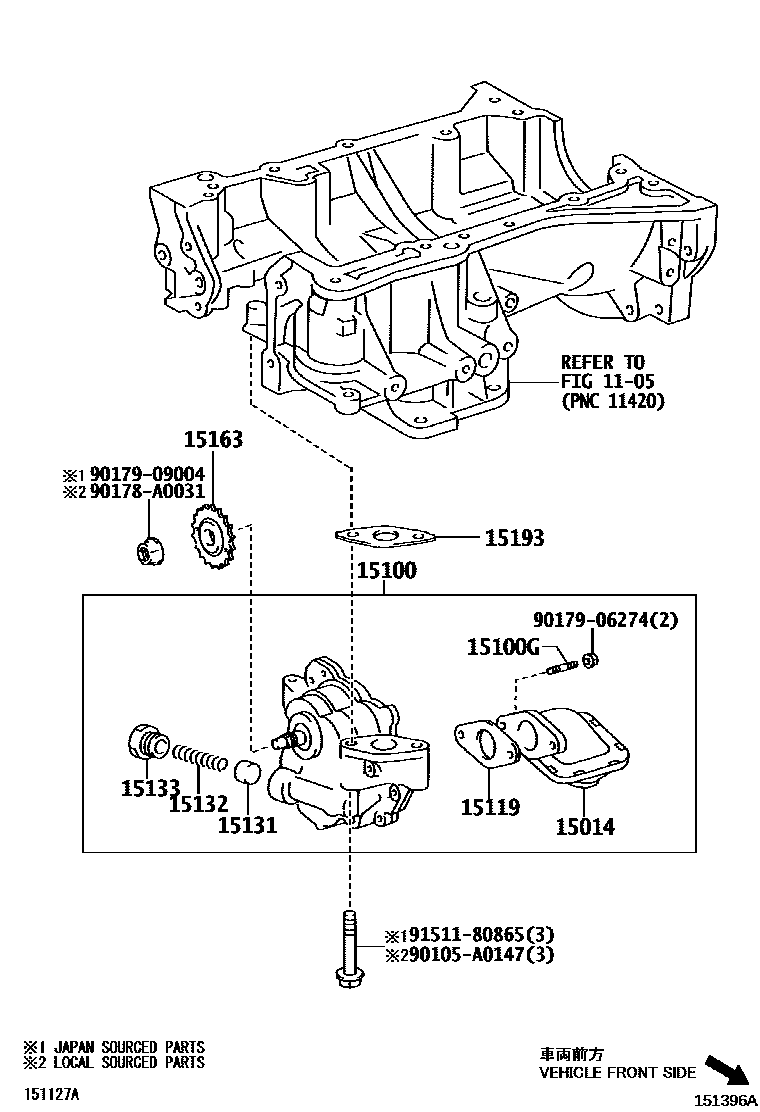

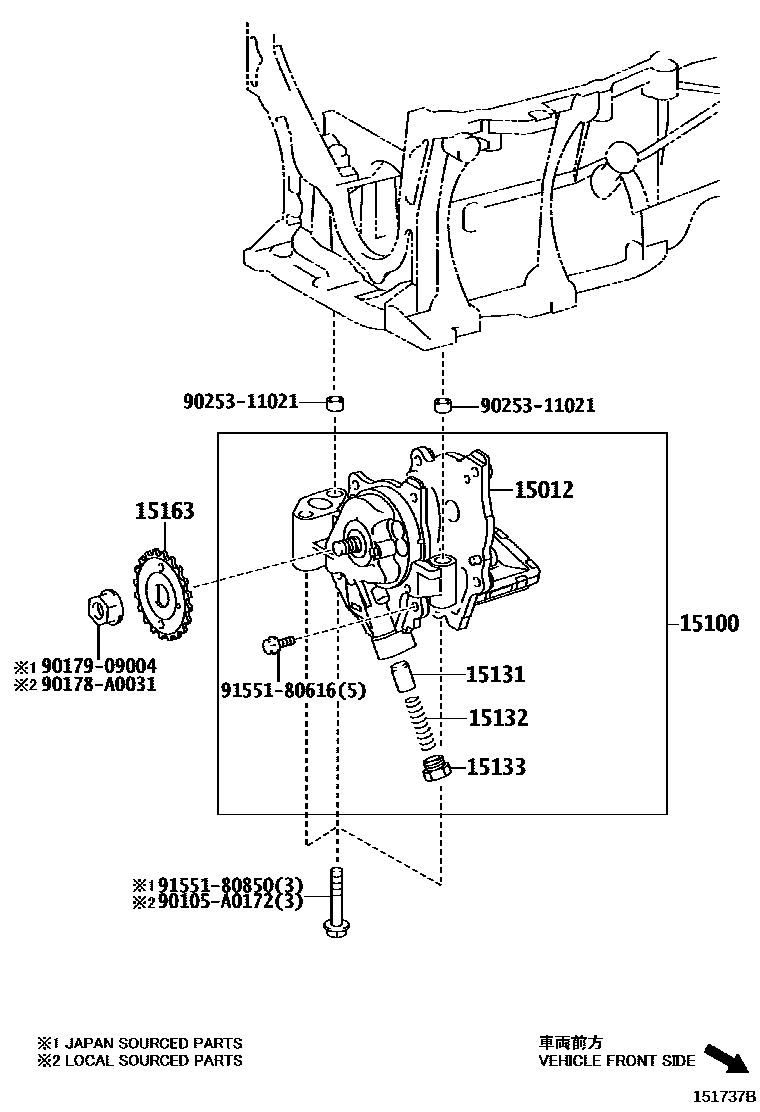

Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15012 | Oil pump cover sub-assembly | 15012-0T010 · 15012-37010 |
| 15014 | Oil pump filter assembly | 15014-0H010 · 15014-28020 |
| 15100 | Oil pump assembly | 15100-0H010 · 15100-0T010 · 15100-28020 · 15100-37030 |
| 15100G | Stud bolt (for oil pump) | 15183-0H010 · 15183-28020 |
| 15119 | Oil pump cover gasket | 15119-0H010 · 15119-28020 |
| 15131 | Oil pump pressure reducing valve | 15131-0A040 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-0A020 · 15132-46020 · 15132-46060 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-0H010 · 15133-28020 |
| 15163 | Oil pump drive shaft gear | 15163-0H010 · 15163-28010 |
| 15193 | oil pump gasket | 15193-0H010 · 15193-28010 |
