Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

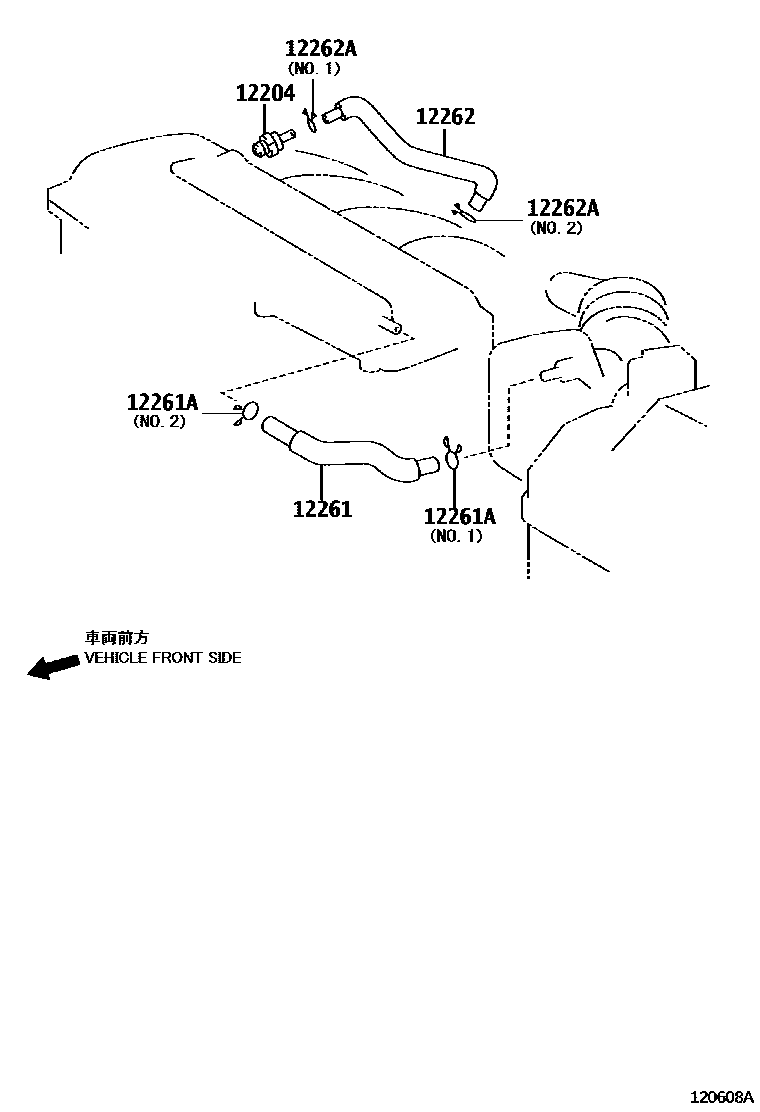

Toyota COROLLA Ventilation Hose EPC diagram — 120608A
Ventilation Hose — 120608A (200801 – 999999)

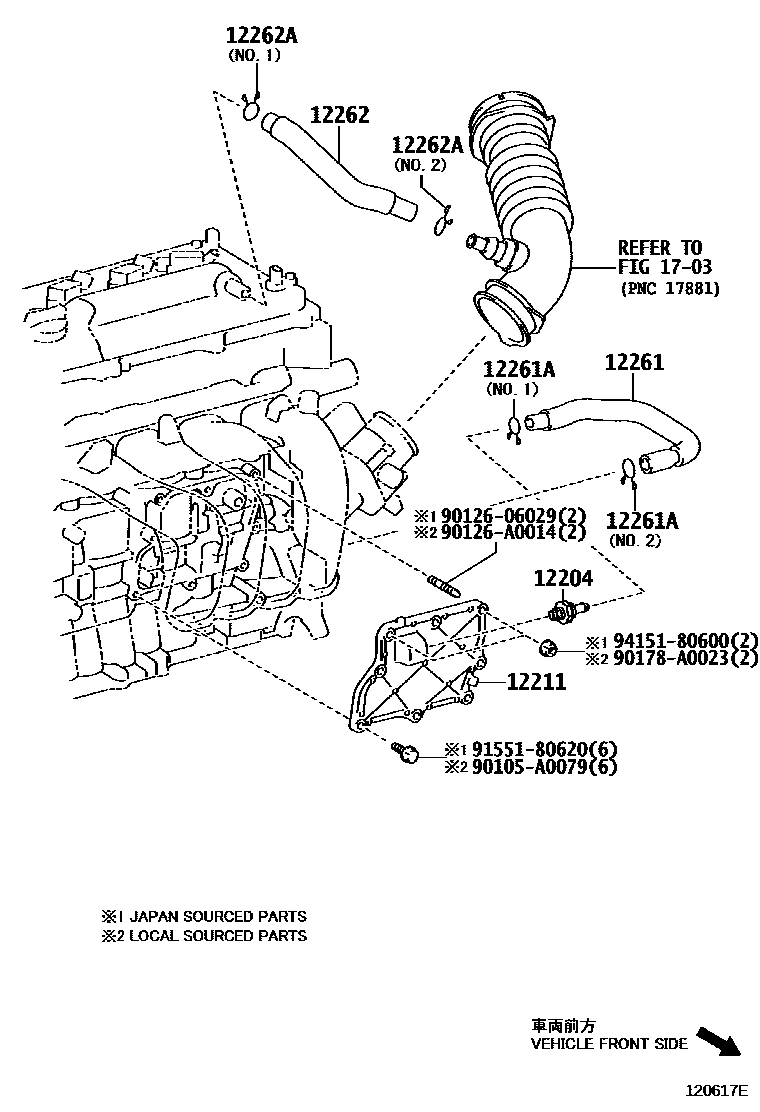

Toyota COROLLA Ventilation Hose EPC diagram — 120617E
Ventilation Hose — 120617E (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-28030 · 12204-37010
12211Ventilation box No. 112211-37010
12261Ventilation Hose12261-0H120 · 12261-37040
12261AClip or clip (for vent hose)90467-15120 · 90467-19003 · 90467-21004 · 90467-22010 · 90467-23002
12262Ventilation hose No. 212262-0H010 · 12262-37020
12262AClamp (for vent hose No. 2)90466-16004 · 90467-13103 · 90467-21004
