Toyota COROLLA Engine Mounting — Figure 1107

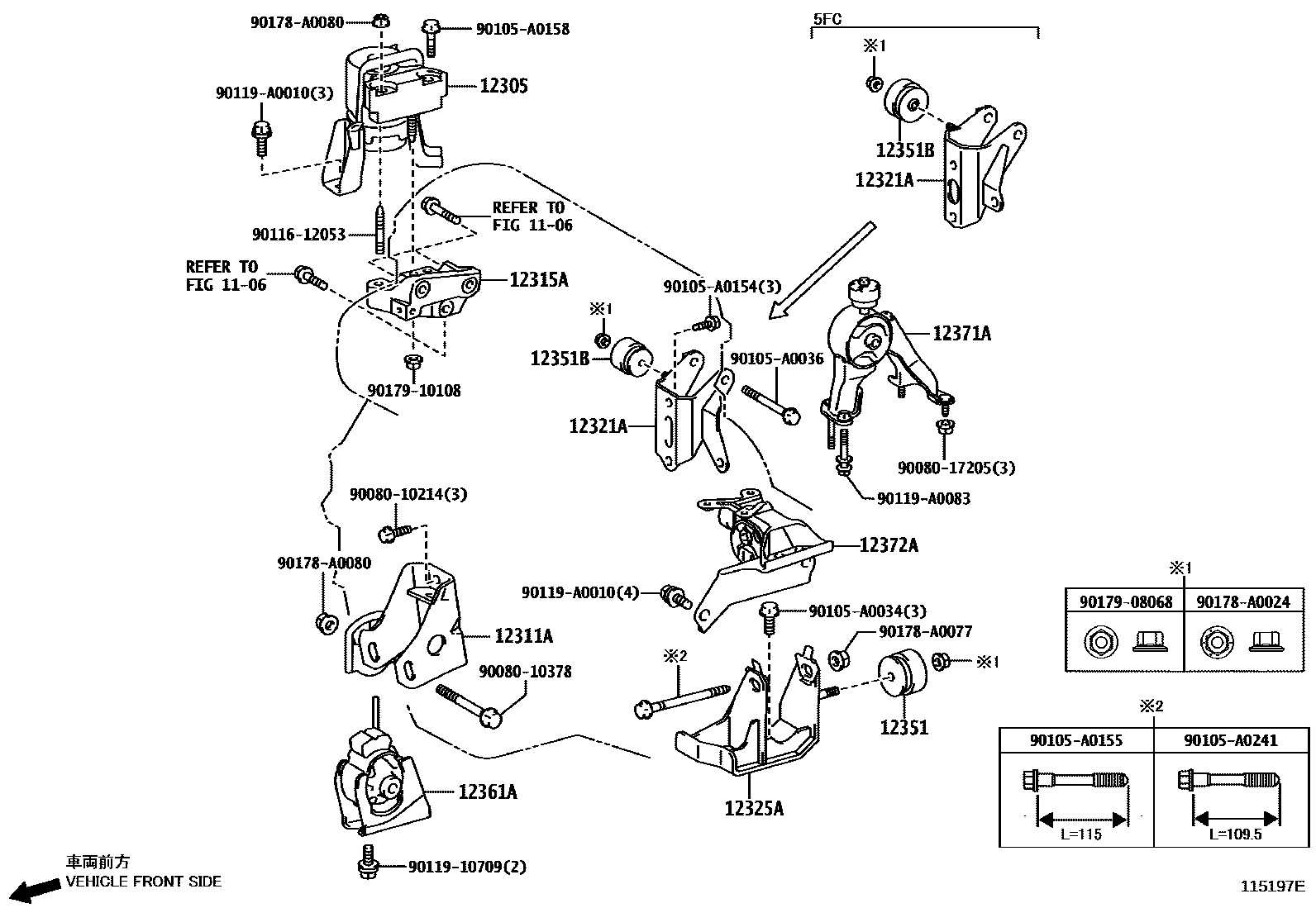

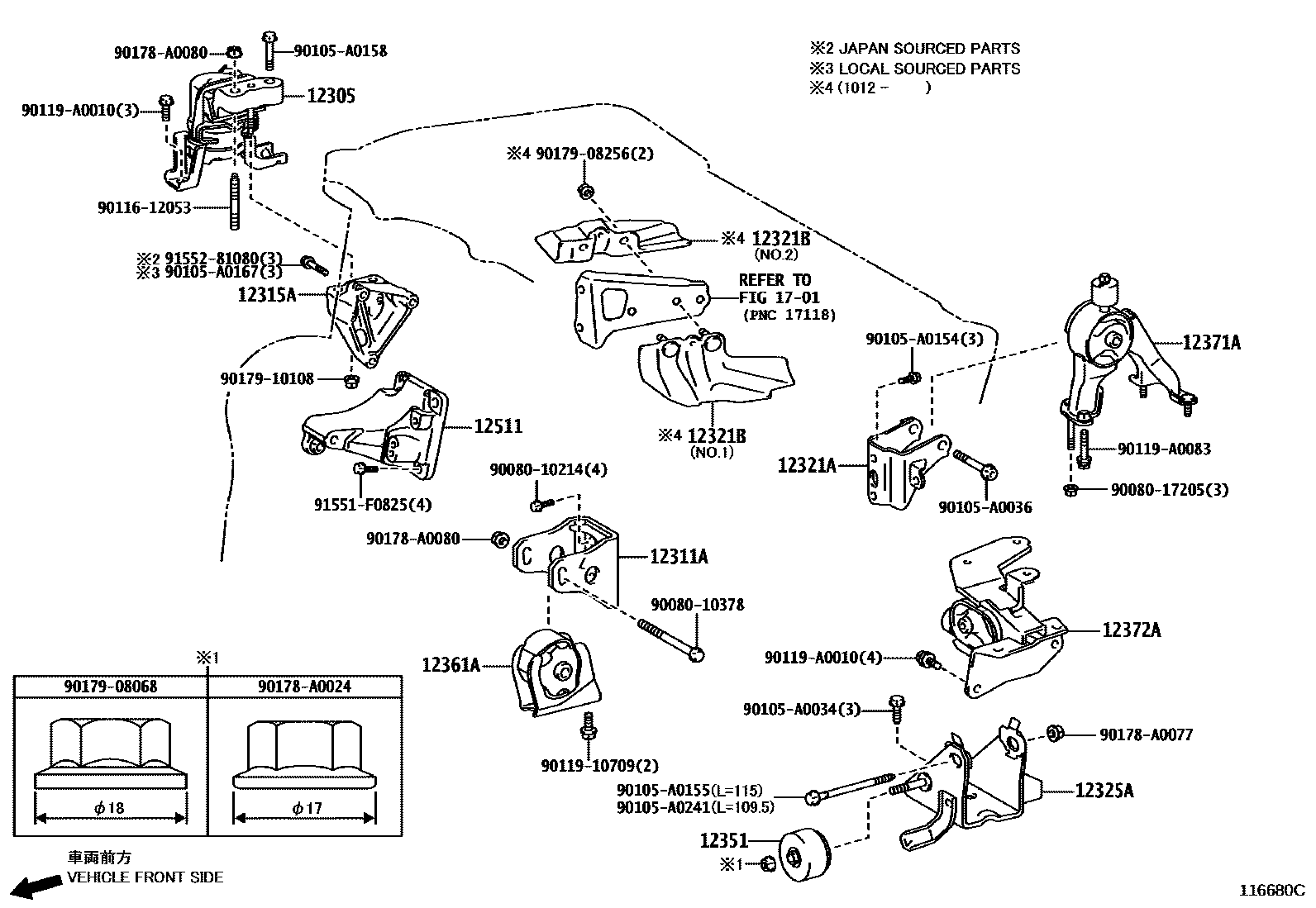

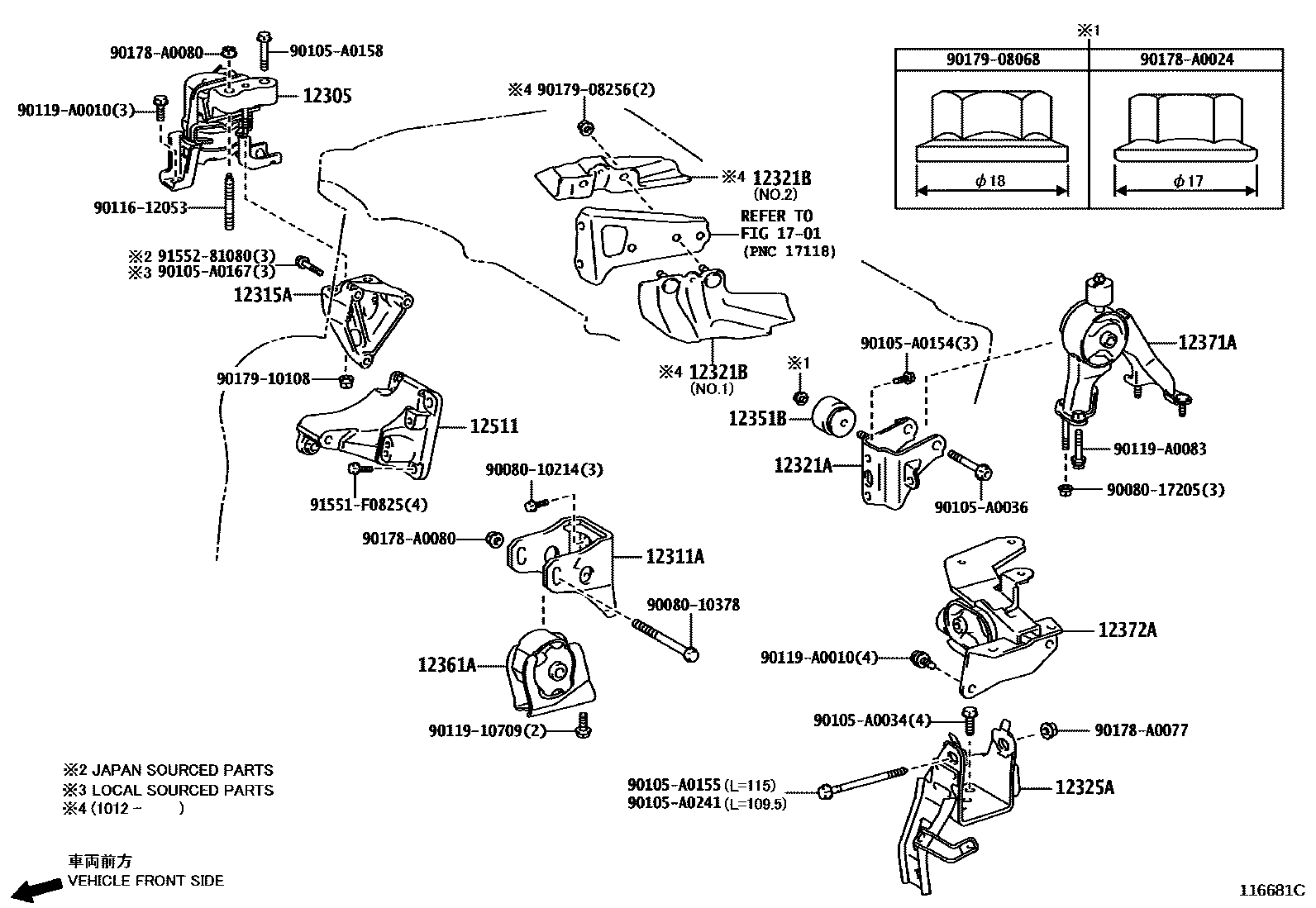

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0H020 · 12305-0T050 · 12305-0T051 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-0H140 · 12311-0T060 · 12311-0T070 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-28090 · 12315-37030 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-0H060 · 12321-0H080 · 12321-0T060 · 12321-0T070 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-02010 · 43409-12060 · 43498-02020 · 43498-12051 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0H030 · 12325-0H050 · 12325-0T070 · 12325-0T080 |
| 12351 | engine mount shock absorber | 12351-11072 · 12351-22060 · 12351-27050 · 12351-28070 · 12351-37120 |
| 12351B | engine mount shock absorber | 12351-11072 · 12351-11130 · 12351-22090 · 12351-28070 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-0H120 · 12361-0T050 · 12361-0T060 |
| 12371A | Engine rear mount vibration isolation pad | 12371-0H080 · 12371-0T030 · 12371-0T040 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0H140 · 12372-0H150 · 12372-0T050 · 12372-0T060 |
| 12511 | No. 1 generator bracket | 12511-0T030 · 12511-37010 |
