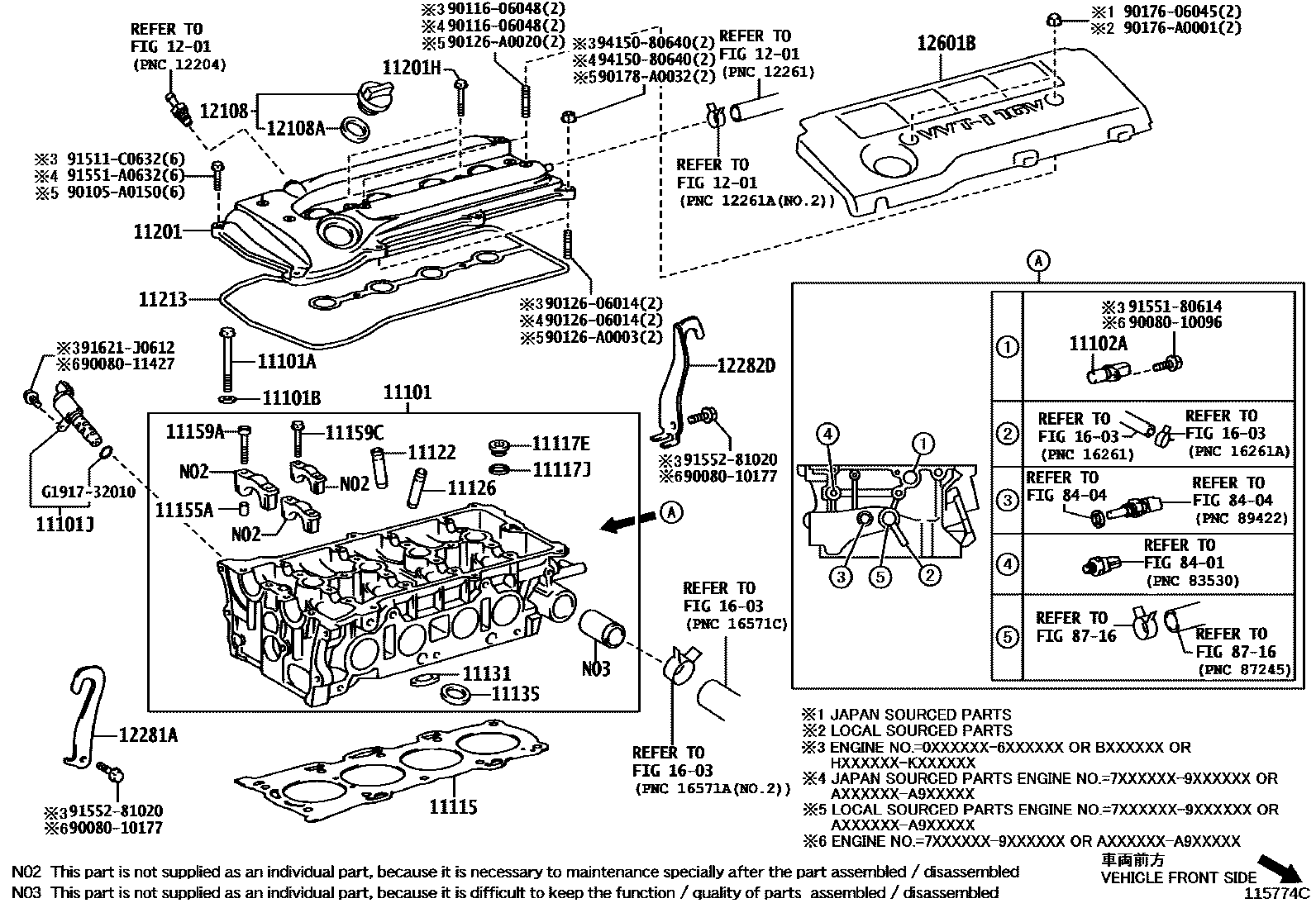

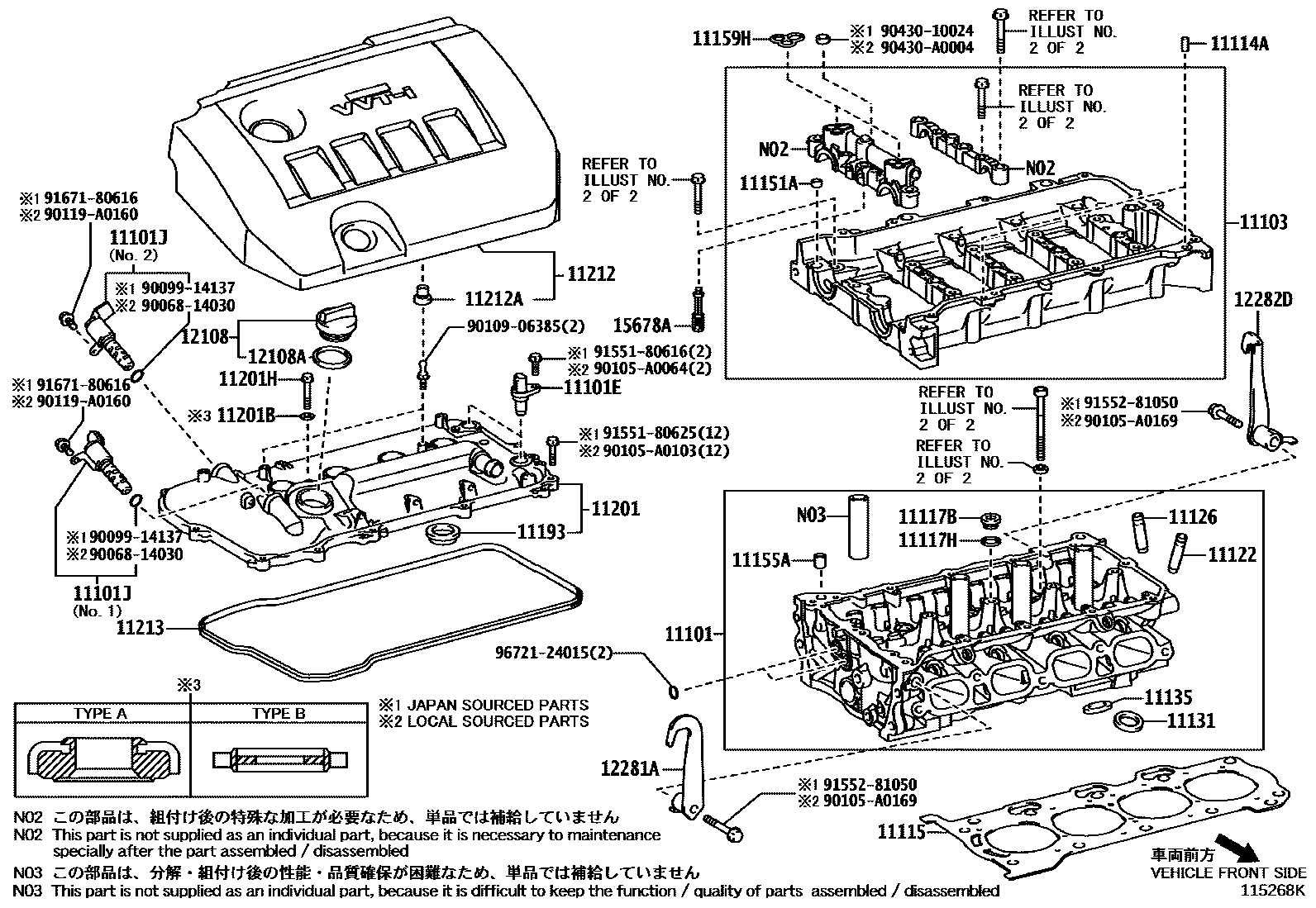

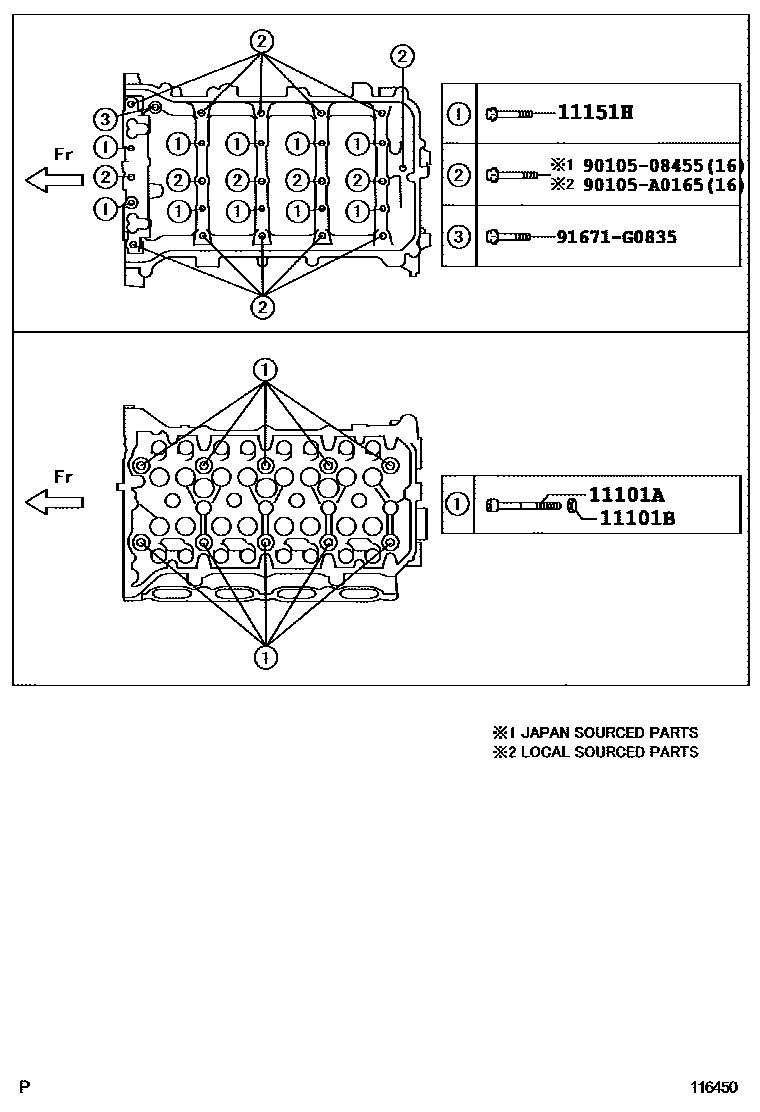

Toyota COROLLA Cylinder Head — Figure 1104
Toyota COROLLA EPC diagram 1104, Cylinder Head, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11101 | CYLINDER HEAD SUB-ASSY | 11101-09310 · 11101-0H011 · 11101-28012 · 11101-39686 |
| 11101A | BOLT (FOR CYLINDER HEAD) | 90910-02162 · 90910-02166 · 90910-A2006 · 90910-A2011 |
| 11101B | Flat Washer (for cylinder head assembly) | 90201-10344 · 90201-11034 |
| 11101E | Cam position sensor | 90919-05060 |
| 11101J | Camshaft timing oil control valve assembly | 15330-0T010 · 15330-0T020 · 15330-28020 · 15330-37010 · 15330-37020 |
| 11102A | Camshaft position sensor | 90080-19014 · 90919-05026 |
| 11103 | Camshaft housing sub-assembly | 11103-0T040 · 11103-0T041 · 11103-37020 · 11103-37021 |
| 11114A | direct selling | 90250-06001 |
| 11115 | GASKET, CYLINDER HEAD | 11115-28040 · 11115-37030 · 11115-37050 · 11115-37051 · 11115-37060 |
| 11117B | No. 2 headed tapered thread plug | 90341-20002 |
| 11117E | PLUG, STRAIGHT SCREW W/HEAD, NO.1 | 90341-27006 |
| 11117H | Gasket (for coolant hole) | 90430-20004 |
| 11117J | Gasket (for cylinder head thread plug) | 90430-27005 |
| 11122 | BUSH, INTAKE VALVE GUIDE | 11122-28010 · 11122-31090 · 11123-28010 · 11123-31090 |
| 11126 | BUSH, EXHAUST VALVE GUIDE | 11126-20020 · 11126-31040 · 11127-20020 · 11127-31040 |
| 11131 | intake valve seat | 11131-0H020 · 11131-0T010 · 11131-28021 · 11131-37020 · 11132-0H020 · 11132-0T010 · 11132-28021 · 11132-37020 |
| 11135 | Exhaust valve seat | 11135-0H020 · 11135-0T010 · 11135-28040 · 11135-37020 · 11136-0H020 · 11136-0T010 · 11136-28040 · 11136-37020 |
| 11151A | Ring pin (for securing camshaft bearing cap) | 90253-13005 |
| 11151H | Bolts (for mounting camshaft bearing cap to camshaft housing) | 90119-07009 · 90119-A0302 |
| 11155A | PIN, RING W/HEAD | 90253-11021 · 90253-12002 · 90253-A0007 |
| 11159A | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-10210 · 90105-08353 |
| 11159C | BOLT (FOR CYLINDER HEAD TO CAMSHAFT BEARING CAP) | 90080-11292 · 90119-06902 |
| 11159H | Camshaft bearing cover oil hole gasket | 11159-37010 |
| 11193 | spark plug bushing gasket | 11193-0T020 · 11193-37020 |
| 11201 | CYLINDER HEAD COVER SUB-ASSY | 11201-0H050 · 11201-0H100 · 11201-0T010 · 11201-28031 · 11201-28032 · 11201-28033 · 11201-37022 |
| 11201B | Gasket (for cylinder head cover) | 16258-37010 · 90210-06013 |
| 11201H | Bolts (for cylinder head cover) | 90080-11295 · 90105-A0217 · 90119-06903 · 91551-80670 |
| 11212 | No. 2 cylinder head cover | 11212-0T010 · 11212-0T011 · 11212-37070 · 11212-37071 |
| 11212A | Cylinder head cover cushion | 90480-16049 |
| 11213 | GASKET, CYLINDER HEAD COVER | 11213-0H010 · 11213-28021 · 11213-37020 |
| 12108 | OIL FILLER CAP SUB-ASSY | 12180-0H031 · 12180-0H032 · 12180-0P021 · 12180-28031 · 12180-31010 · 12180-38020 |
| 12108A | GASKET (FOR OIL FILLER CAP) | 90080-43025 · 90430-35001 · 90430-37004 |
| 12281A | Engine No. 1 hanger | 12281-0H010 · 12281-28010 · 12281-37021 |
| 12282D | ENGINE HANGER, NO.2 | 12282-0H010 · 12282-28010 · 12282-37011 |
| 12601B | No. 1 engine hood sub-assembly | 12601-0H060 · 12601-0H061 |
| 15678A | Oil control valve filter | 15678-37010 |
