Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 4 images and 2 PNC and OE references.

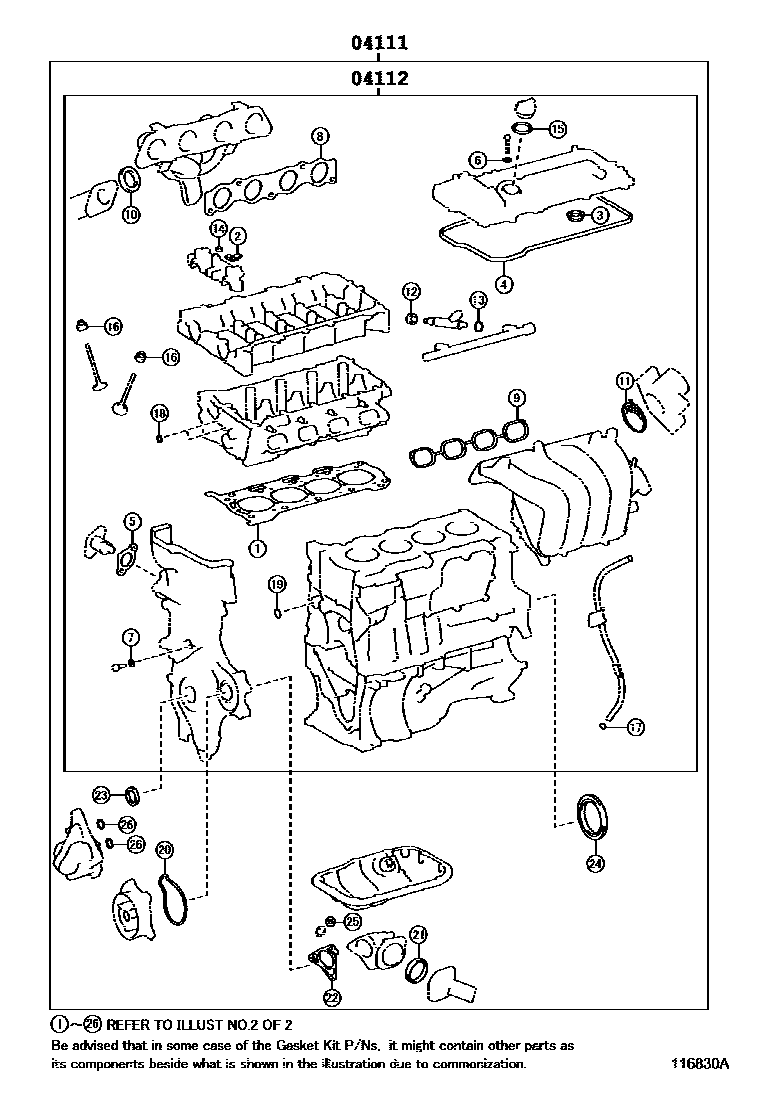

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 116830A
Engine Overhaul Gasket Kit — 116830A (200801 – 999999)

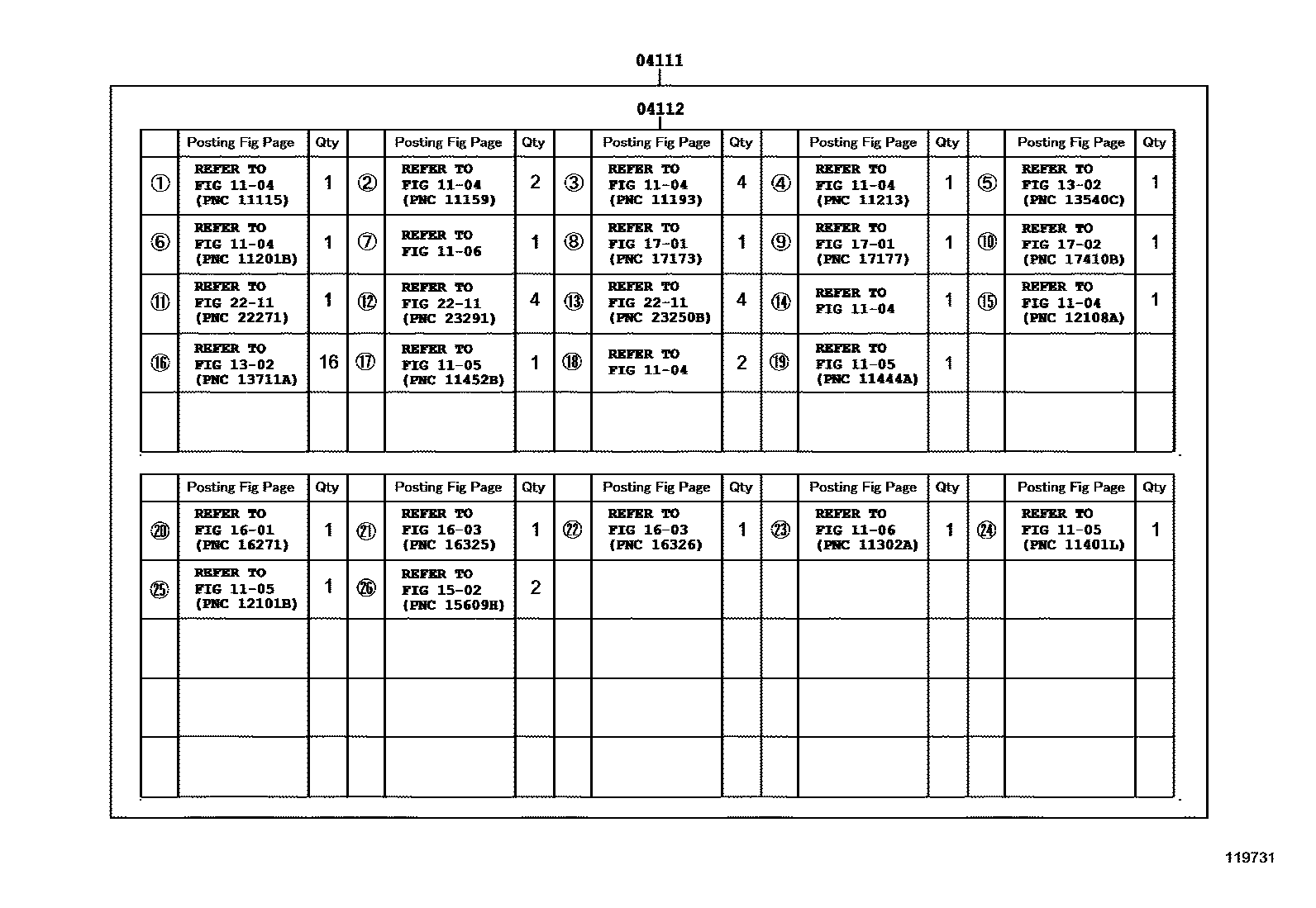

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 119731
Engine Overhaul Gasket Kit — 119731 (200801 – 999999)

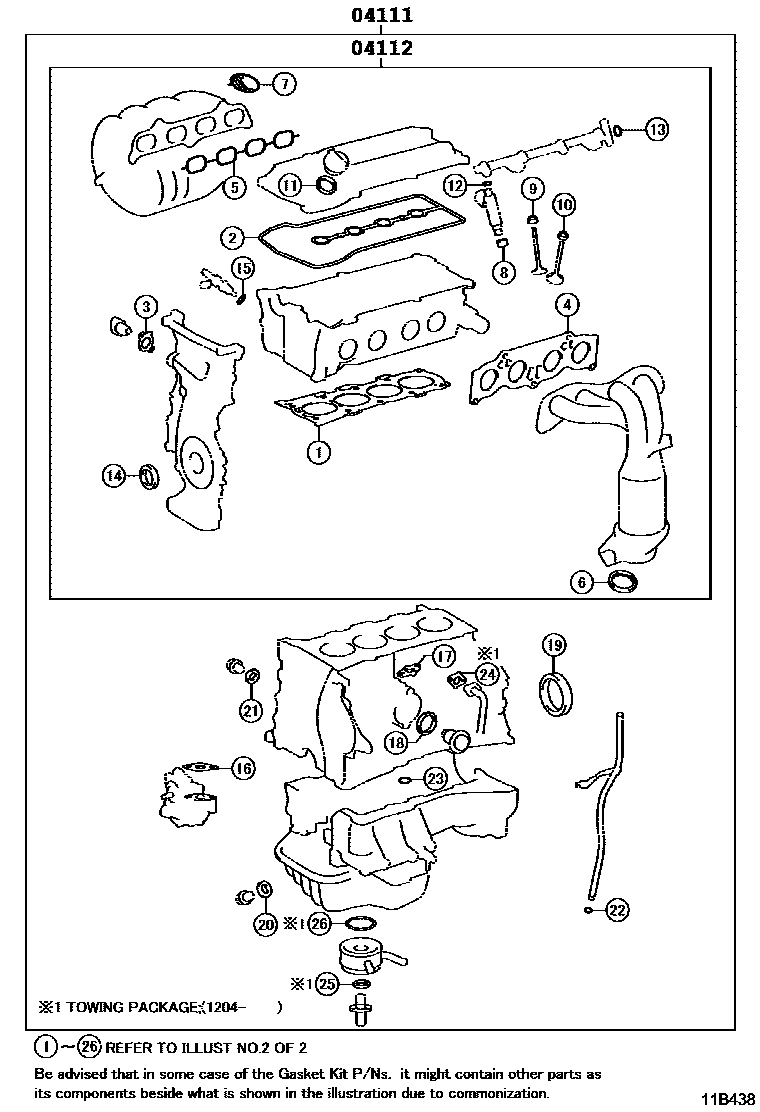

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B438
Engine Overhaul Gasket Kit — 11B438 (200801 – 999999)

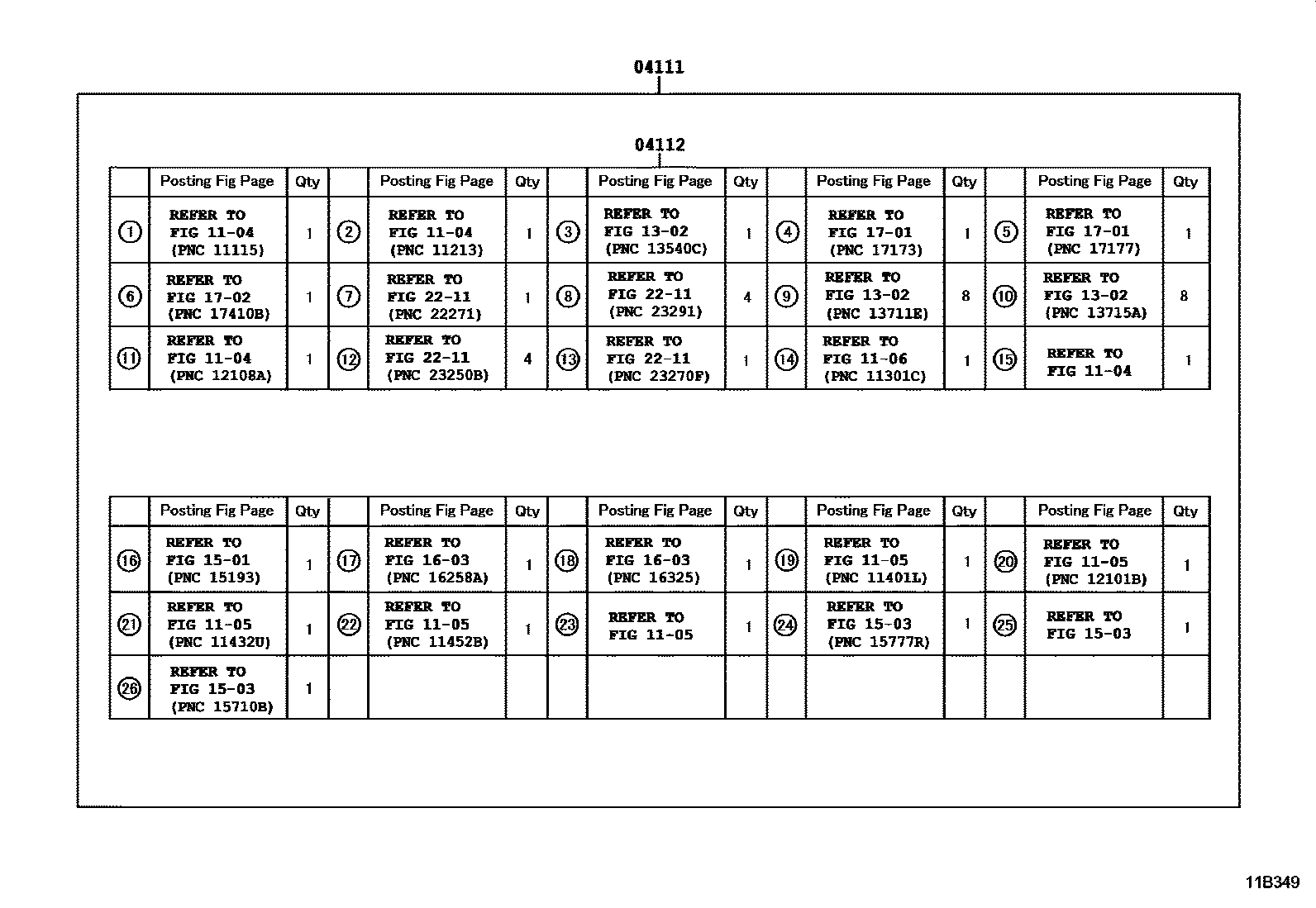

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11B439
Engine Overhaul Gasket Kit — 11B439 (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0H361 · 04111-0H362 · 04111-0H390 · 04111-0T030 · 04111-0T031 · 04111-0T032 · 04111-0T130 · 04111-0T133 · 04111-28982 · 04111-28983
04112Engine valve grinding pad assembly04112-0H340 · 04112-0H341 · 04112-0H342 · 04112-0T030 · 04112-0T031 · 04112-0T032 · 04112-0T130 · 04112-0T132 · 04112-28594 · 04112-28595
