Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

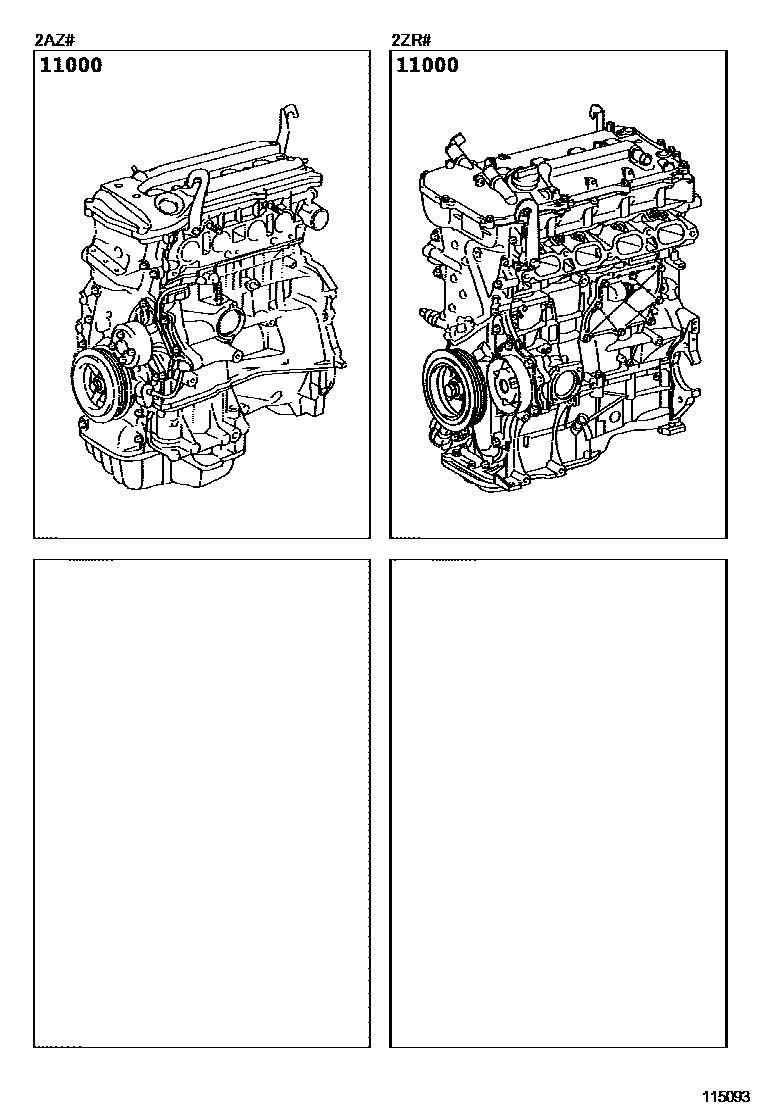

Toyota COROLLA Partial Engine Assembly EPC diagram — 115093
Partial Engine Assembly — 115093 (200801 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0H200 · 19000-0H250 · 19000-0T050 · 19000-0T140 · 19000-0T141 · 19000-28C50 · 19000-28C51
