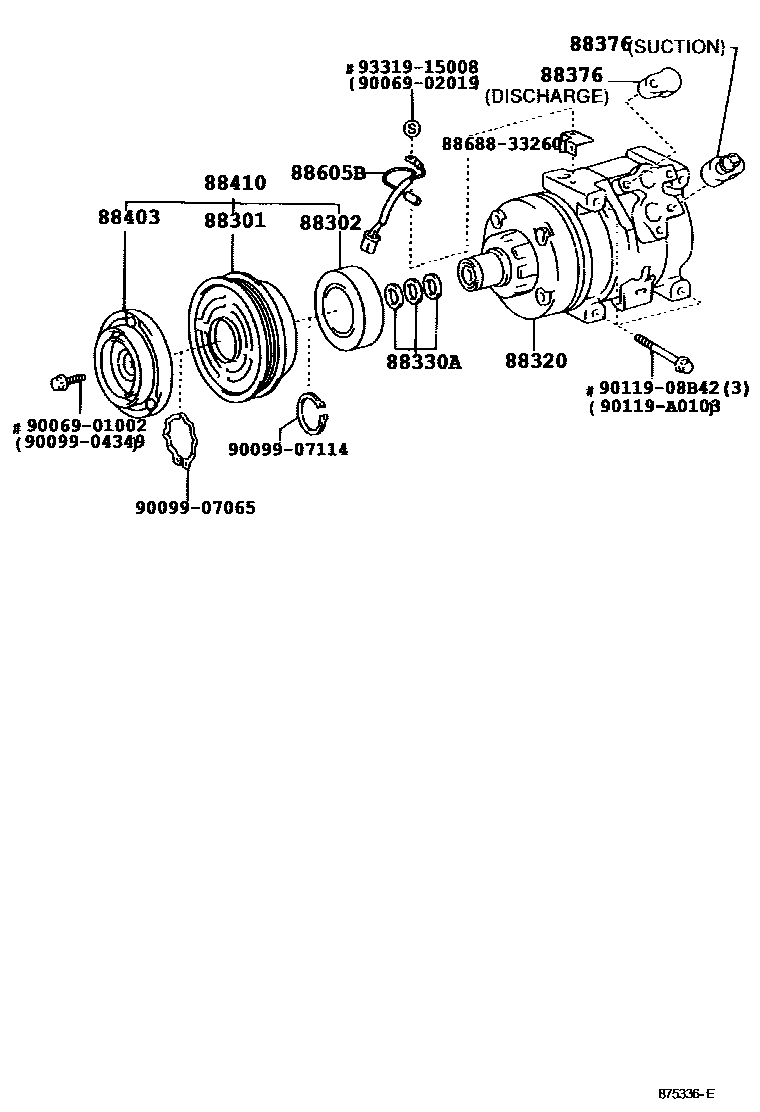

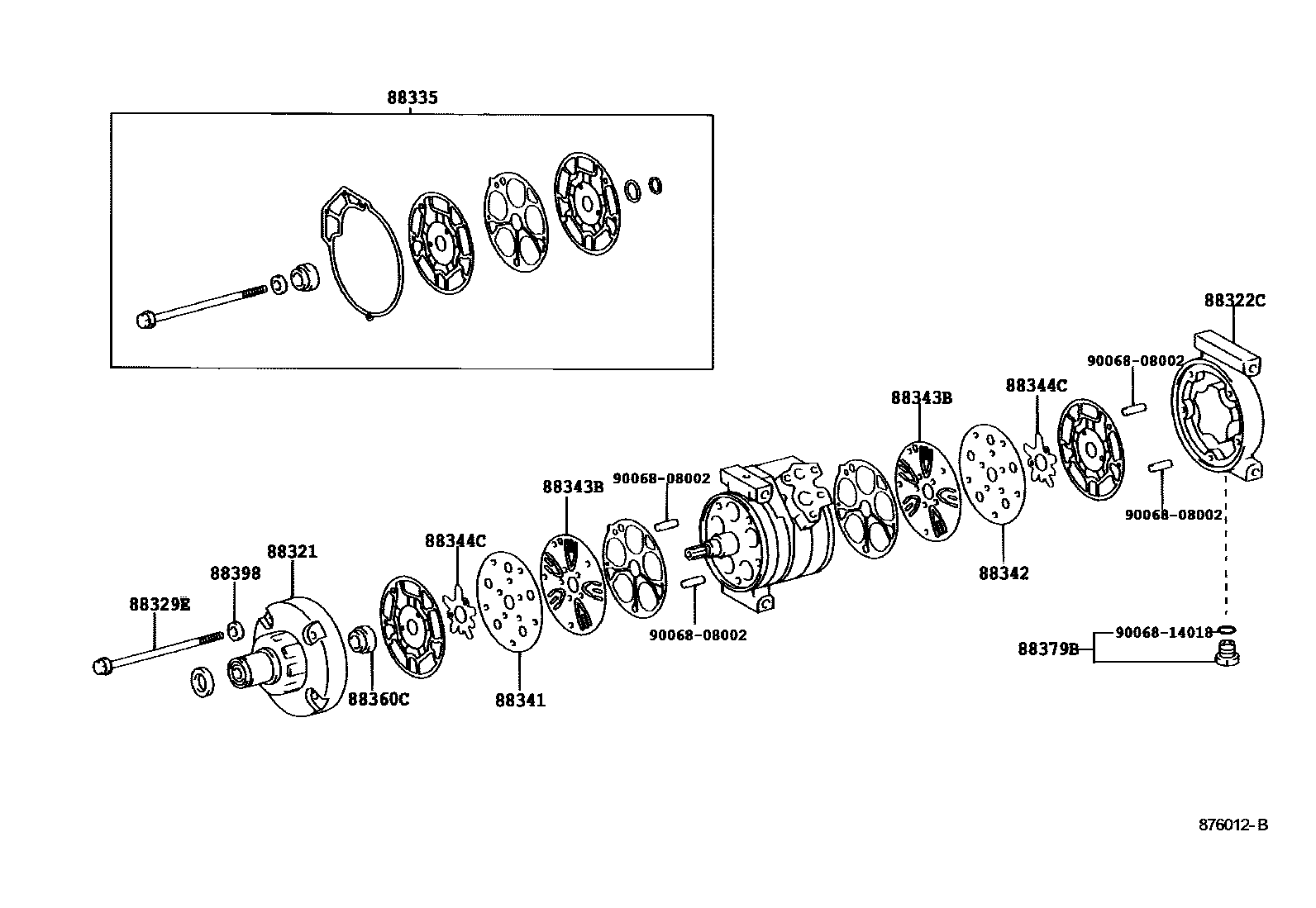

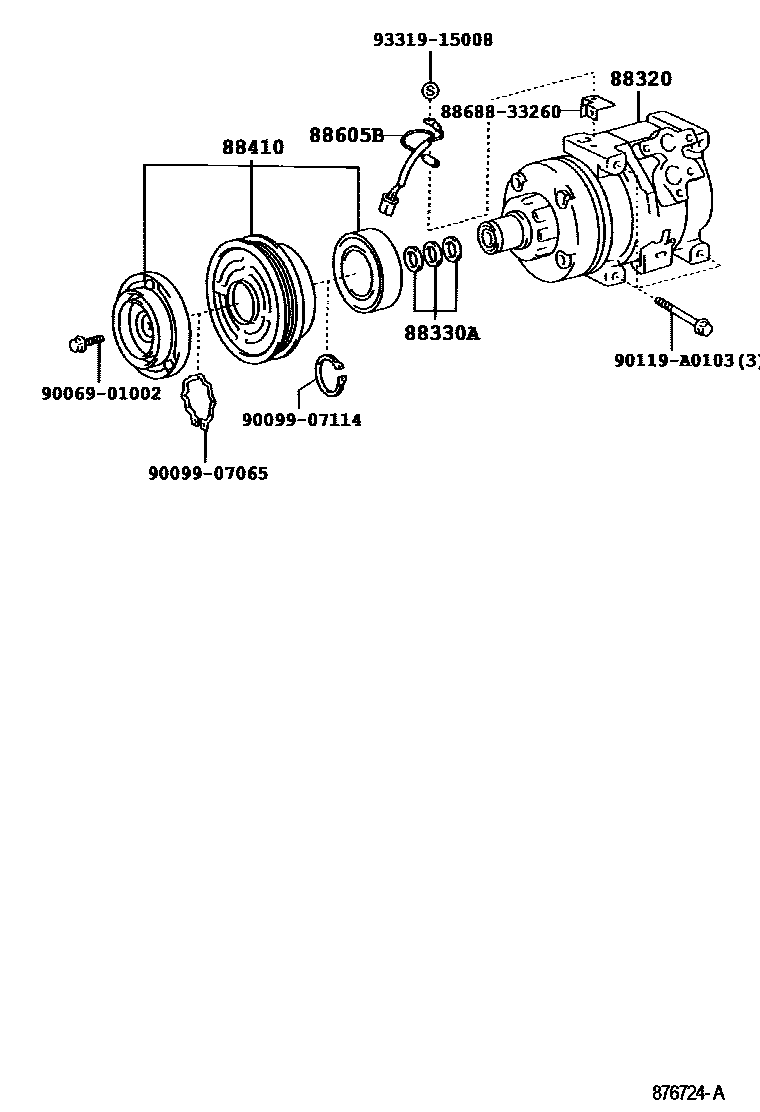

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-02130 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-02050 |
| 88320 | Cooler Compressor Assembly | 88320-02120 |
| 88321 | Cooler compressor cylinder head | 88321-32020 |
| 88322C | Rear cylinder head | 88322-02020 |
| 88329E | No. 1 compressor bolt | 88329-32010 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-32030 |
| 88341 | front valve | 88341-0C010 |
| 88342 | Rear compressor valve plate | 88342-0C010 |
| 88343B | suction valve reed | 88343-0C040 |
| 88344C | Discharge valve reed | 88344-0C030 |
| 88360C | Shaft seal assembly | 88360-02050 |
| 88376 | blind cover | 88376-14020 · 88376-32020 |
| 88379B | Pressure reducing valve | 88379-32010 |
| 88398 | Compressor seals | 88398-0C010 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-02050 |
| 88410 | Magnetic Clutch Assembly | 88410-02130 |
| 88605B | Air conditioning wiring harness sub-assembly | 88605-35420 |
