Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

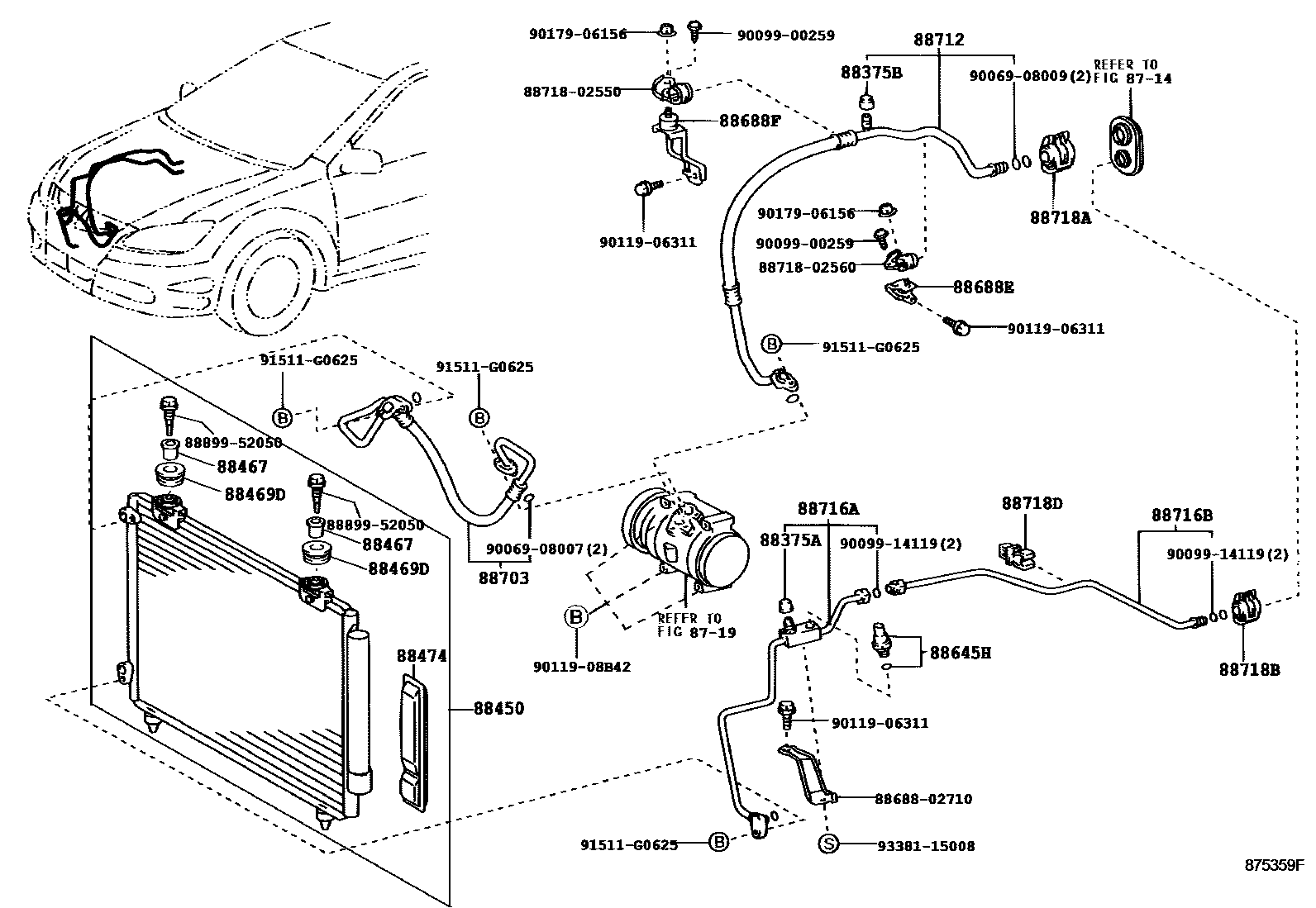

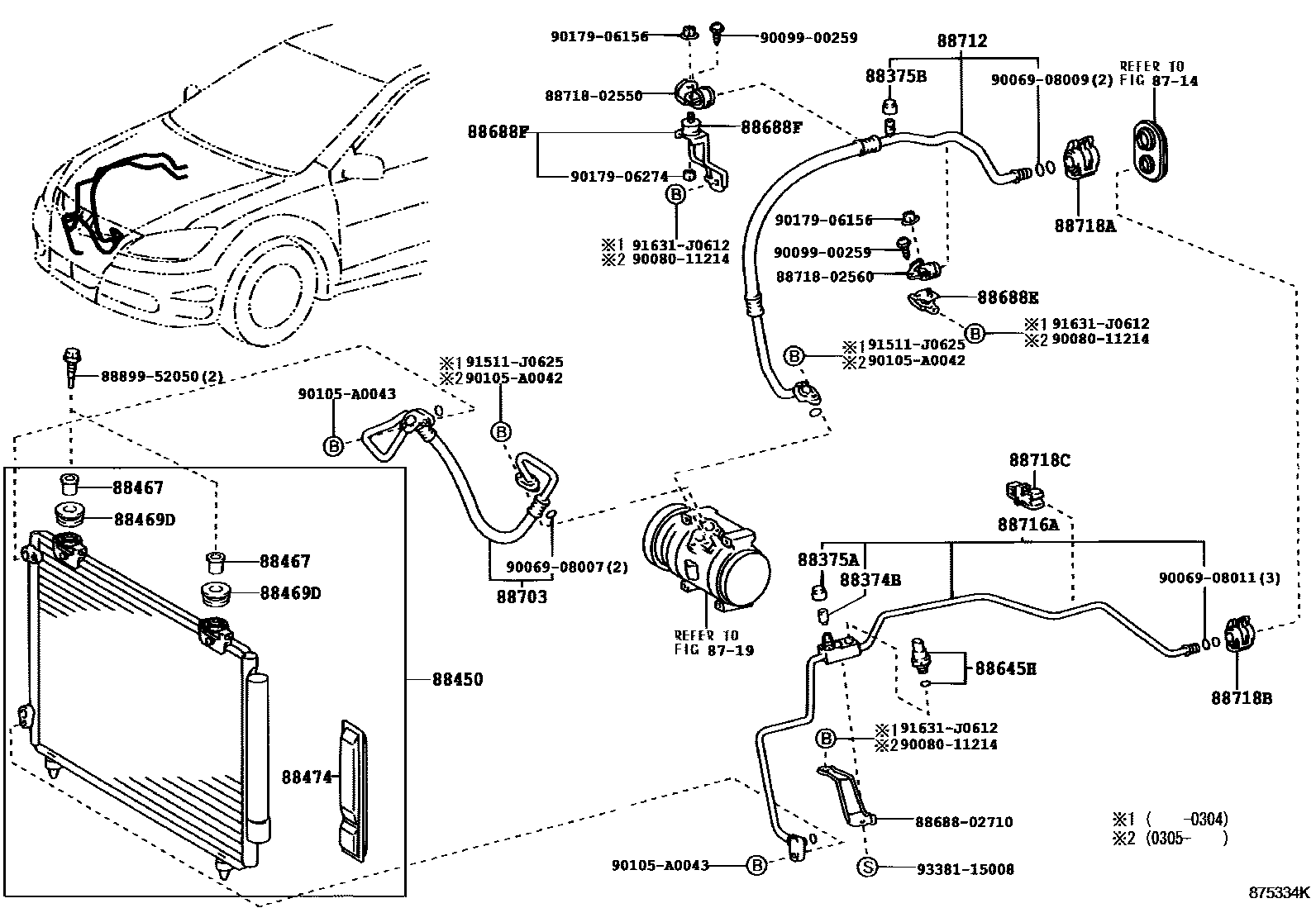

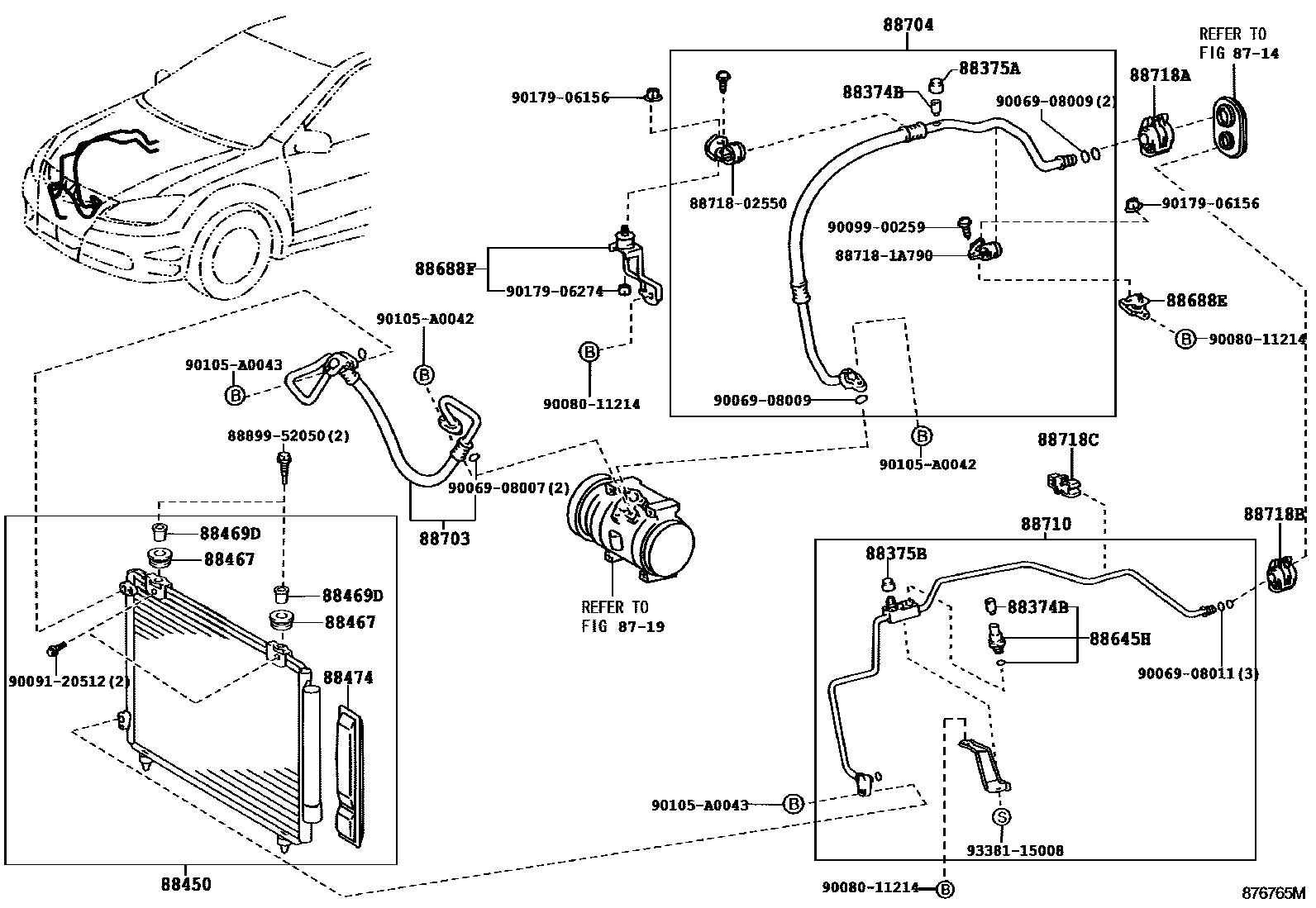

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 3 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 · 88374-33070 |
| 88375A | Repair valve cover (for cooler tube) | 88375-02060 · 88375-02070 · 88375-30280 · 88375-30290 |
| 88375B | No. 1 maintenance valve cover | 88375-02070 · 88375-30280 |
| 88450 | Condenser assembly with liquid reservoir | 88450-02170 · 88450-02260 · 88450-02261 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-02080 · 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-02010 · 88469-52010 |
| 88474 | cooler dryer | 88474-17010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-02620 · 88688-0Z040 |
| 88688F | Cooler No. 2 refrigerant hose bracket | 88688-02630 |
| 88703 | Discharge hose sub-assembly | 88703-02110 · 88703-02111 · 88703-02112 · 88703-02291 |
| 88704 | Oil suction hose sub-assembly | 88704-02540 |
| 88710 | Air conditioning pipe assembly | 88710-02690 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-02220 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-02350 · 88716-02390 · 88716-02550 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-02380 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-02160 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-02170 |
| 88718C | Clamp No. 3 (for cooler refrigerant pipe) | 88718-02600 |
| 88718D | No. 4 clamp (for cooler refrigerant pipe) | 88718-02600 |
