Toyota COROLLA 后视镜 — Figure 8701

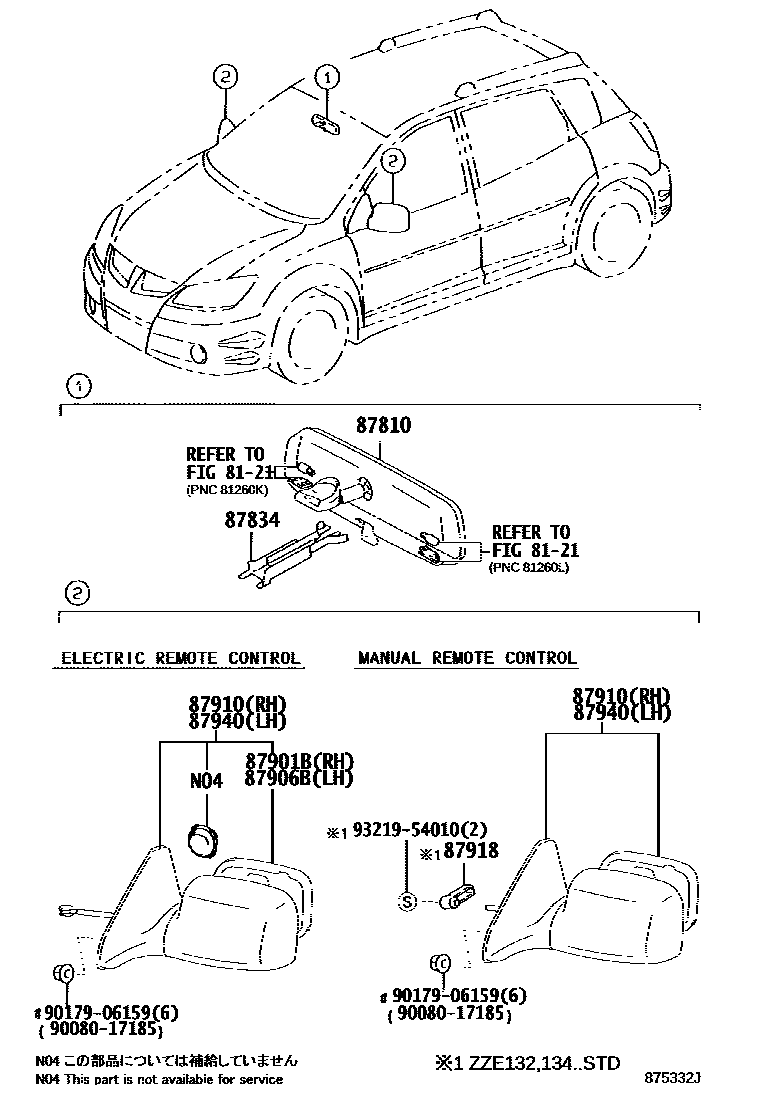

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-02020 · 87810-02021 · 87810-02040 · 87810-02070 · 87810-AA011 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-AC010 |
| 87901B | Right exterior rearview mirror sub-assembly | 87908-01080 |
| 87906B | Left exterior rearview mirror sub-assembly | 87909-01080 |
| 87910 | Right exterior rearview mirror assembly | 87910-02380 · 87910-02400 |
| 87918 | Exterior rearview mirror control handle | 87918-0W010 |
| 87940 | Left exterior rearview mirror assembly | 87940-02380 · 87940-02400 |
