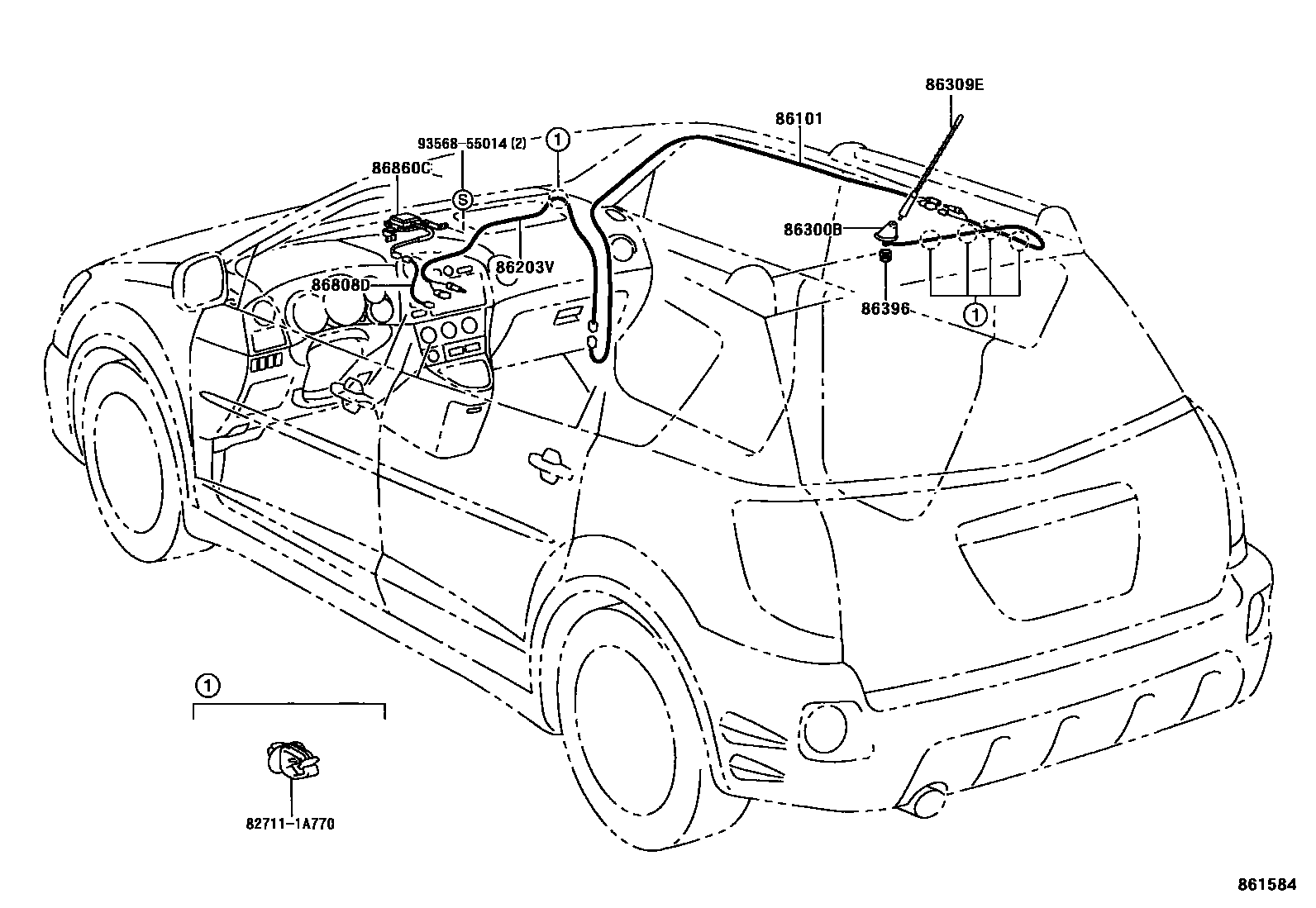

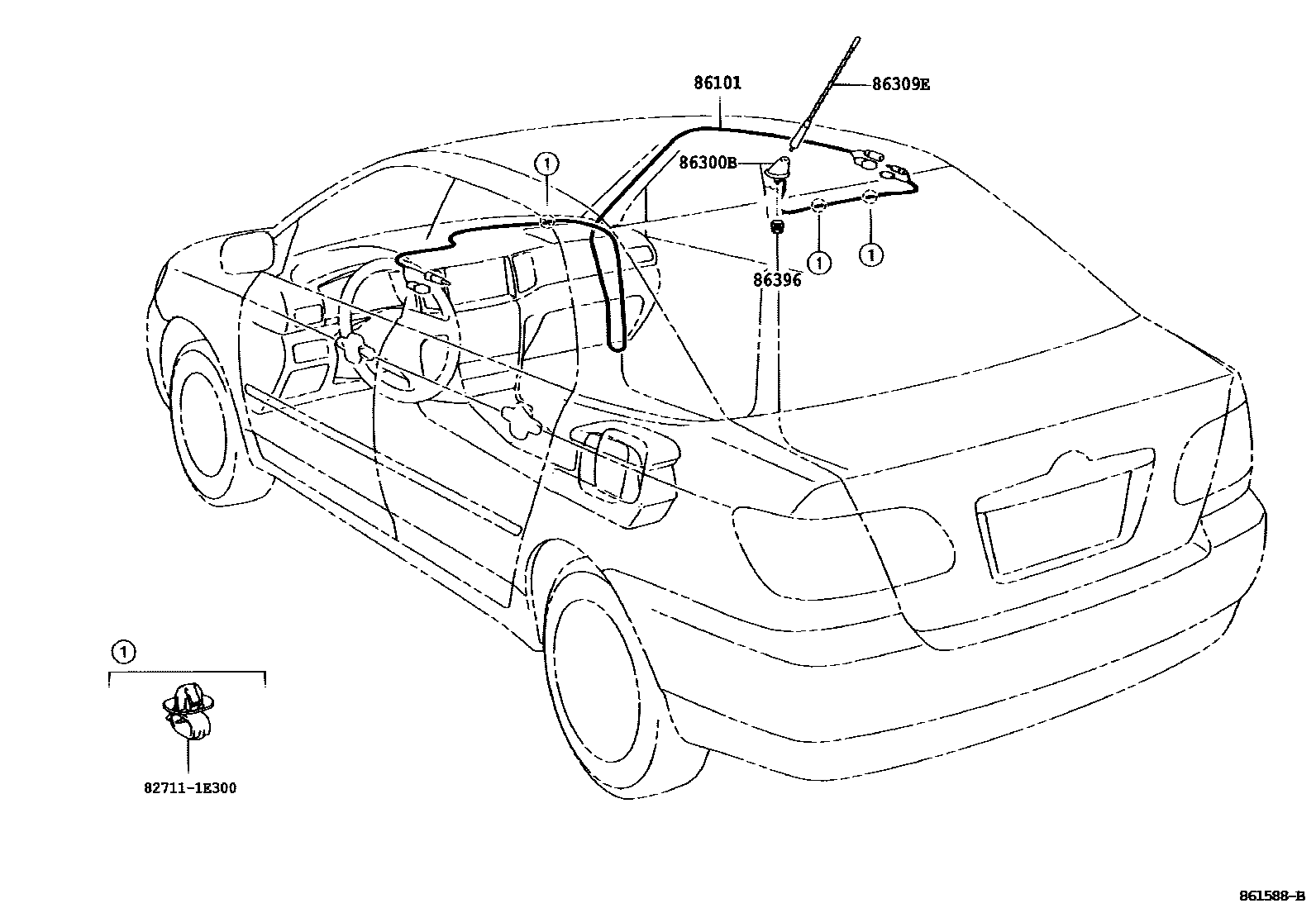

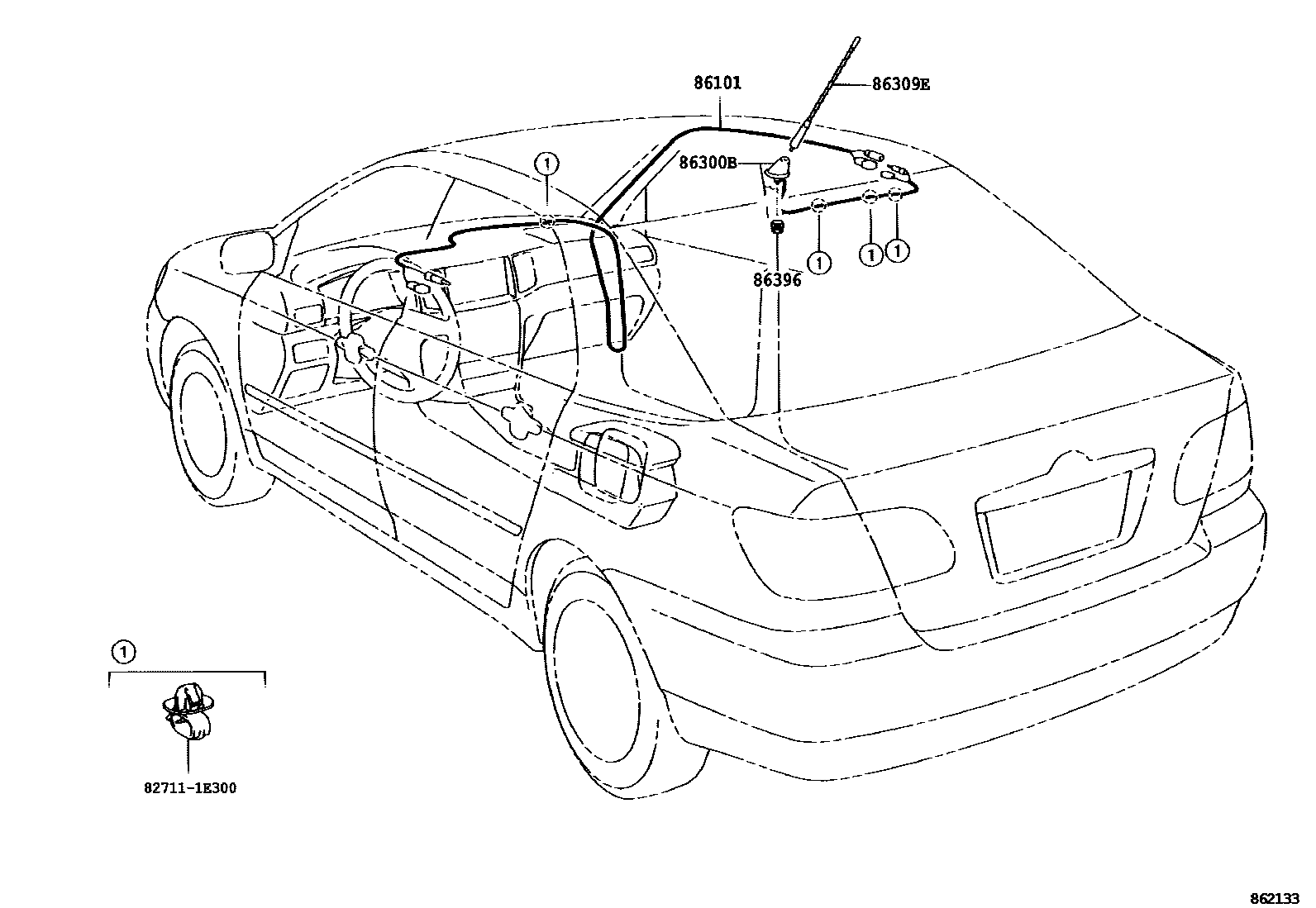

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-01030 · 86101-01050 · 86101-02080 · 86101-02160 |
| 86203V | Radio wiring harness sub-assembly | 86203-01010 · 86203-01020 |
| 86300B | Amplifier antenna assembly | 86300-01080 · 86300-02090 · 86300-02100 · 86300-02200 |
| 86309E | Roof antenna sub-assembly | 86309-02050 |
| 86396 | Antenna nut | 86396-02030 |
| 86808D | Navigation antenna wire sub-assembly | 86808-02010 |
| 86860C | Navigation antenna assembly | 86860-12020 |
