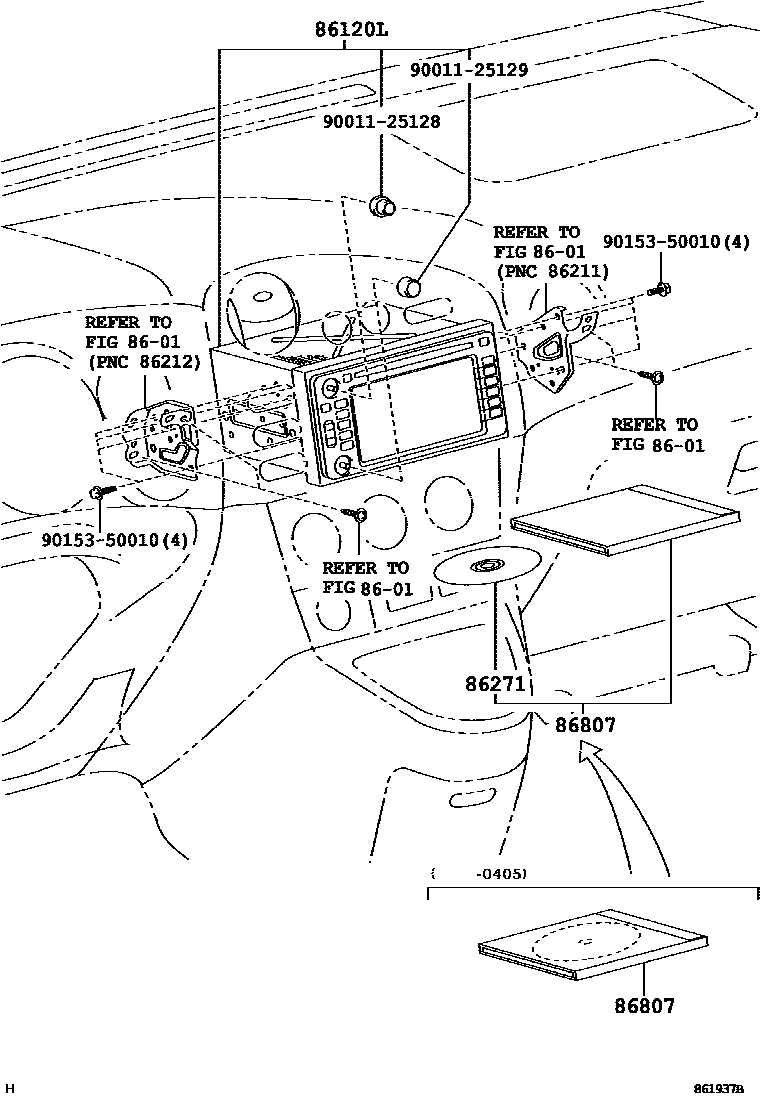

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-01200 |
| 86271 | CD | 86271-12060 · 86271-33032 · 86271-33033 |
| 86807 | CD-ROM disc repair kit | 86807-12010 · 86807-12011 · 86807-12012 · 86807-12013 · 86807-12050 |
