Toyota COROLLA 扬声器 — Figure 8602

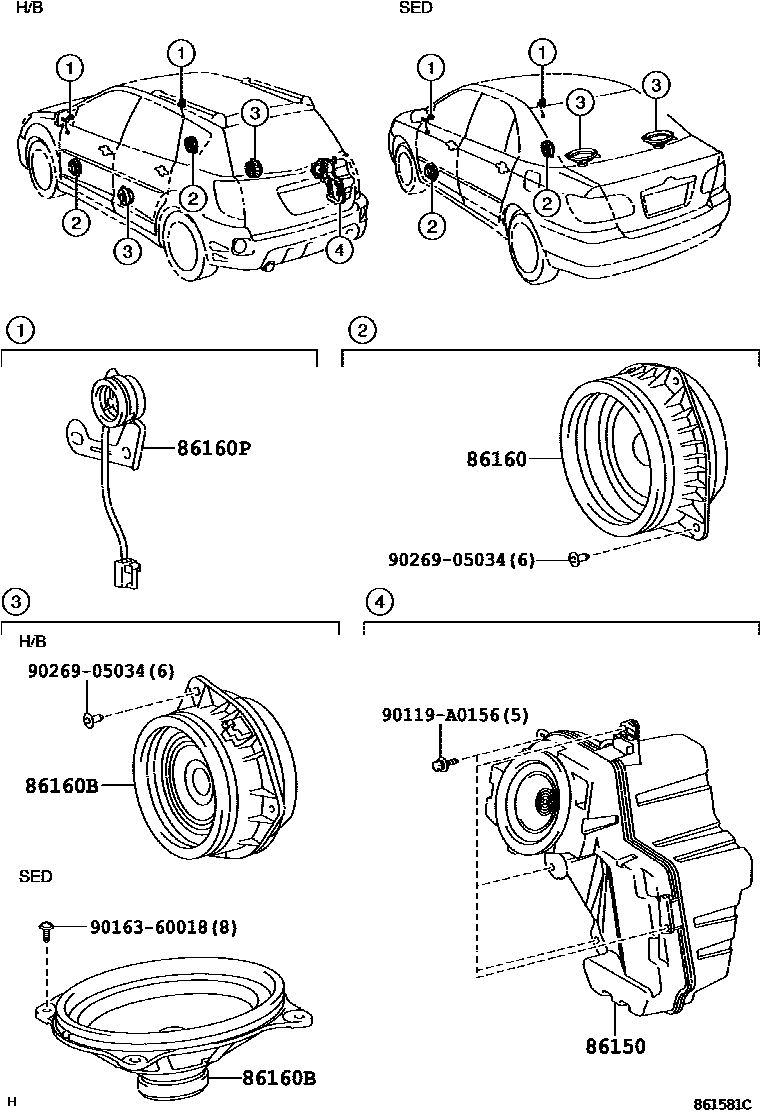

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-02050 |
| 86160 | No. 1 front speaker assembly | 86160-02450 · 86160-02610 |
| 86160B | Rear speaker assembly | 86160-01190 · 86160-02460 · 86160-02620 · 86160-AA410 |
| 86160P | No. 2 front speaker assembly | 86160-01200 · 86160-01210 · 86160-02190 · 86160-02250 · 86160-02470 · 86160-02480 · 86160-02630 · 86160-02640 |
