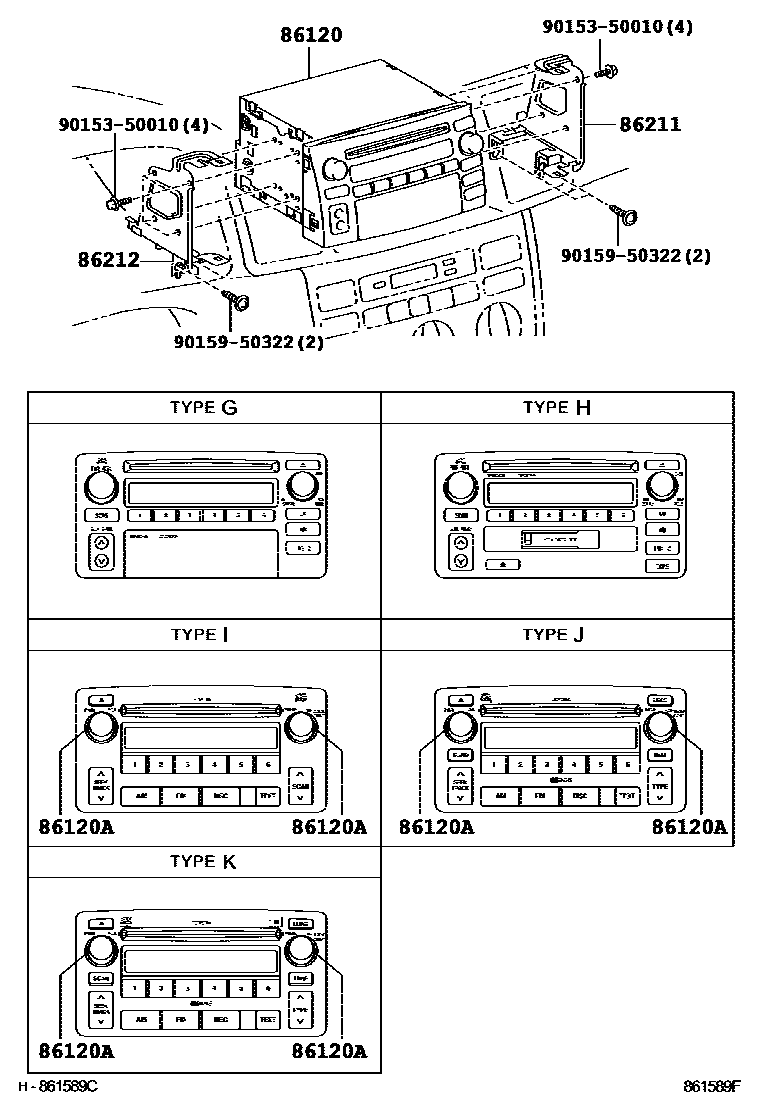

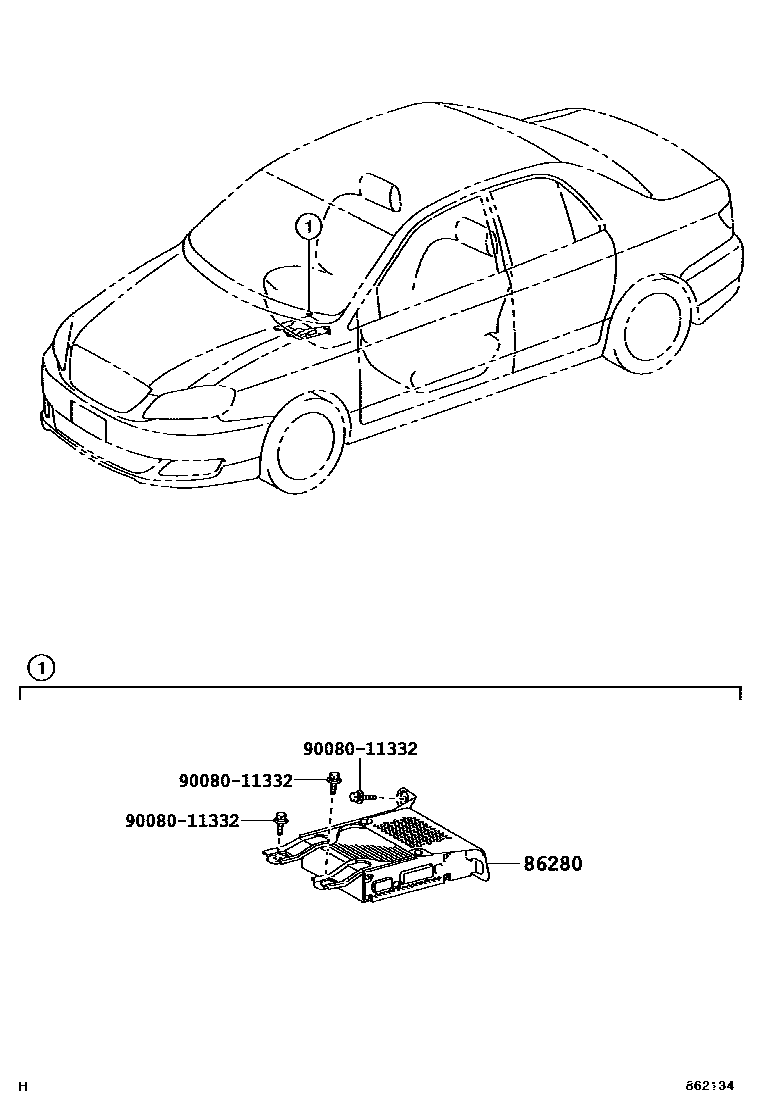

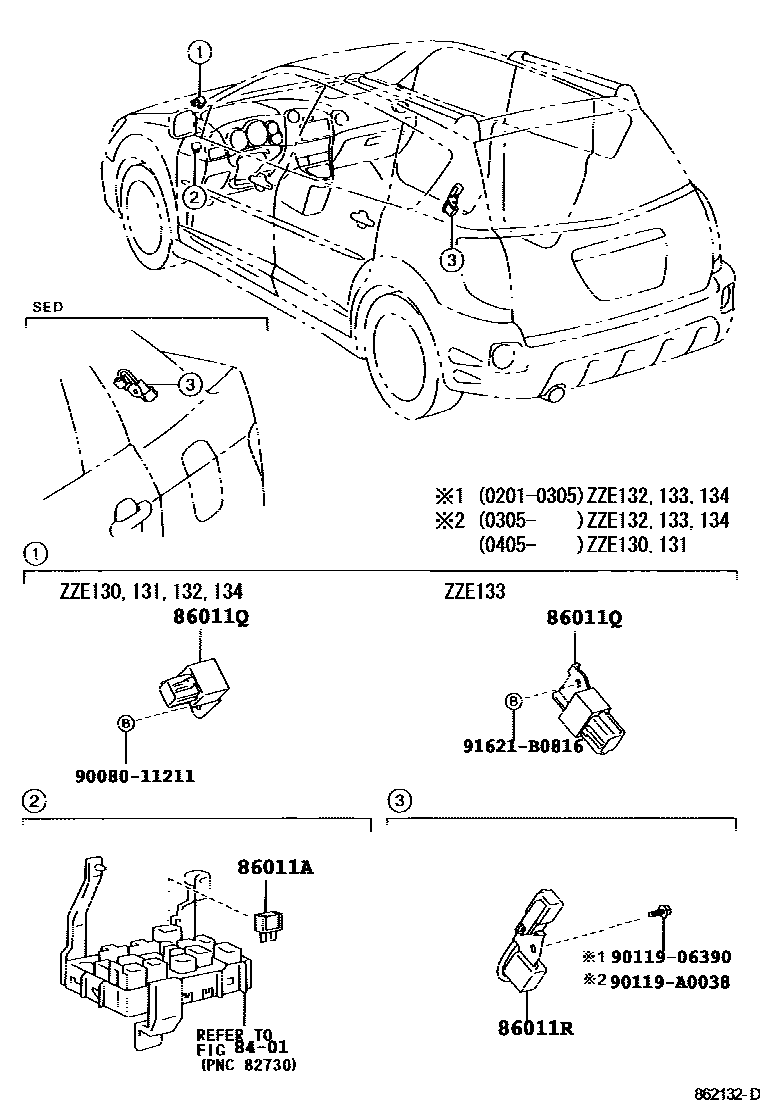

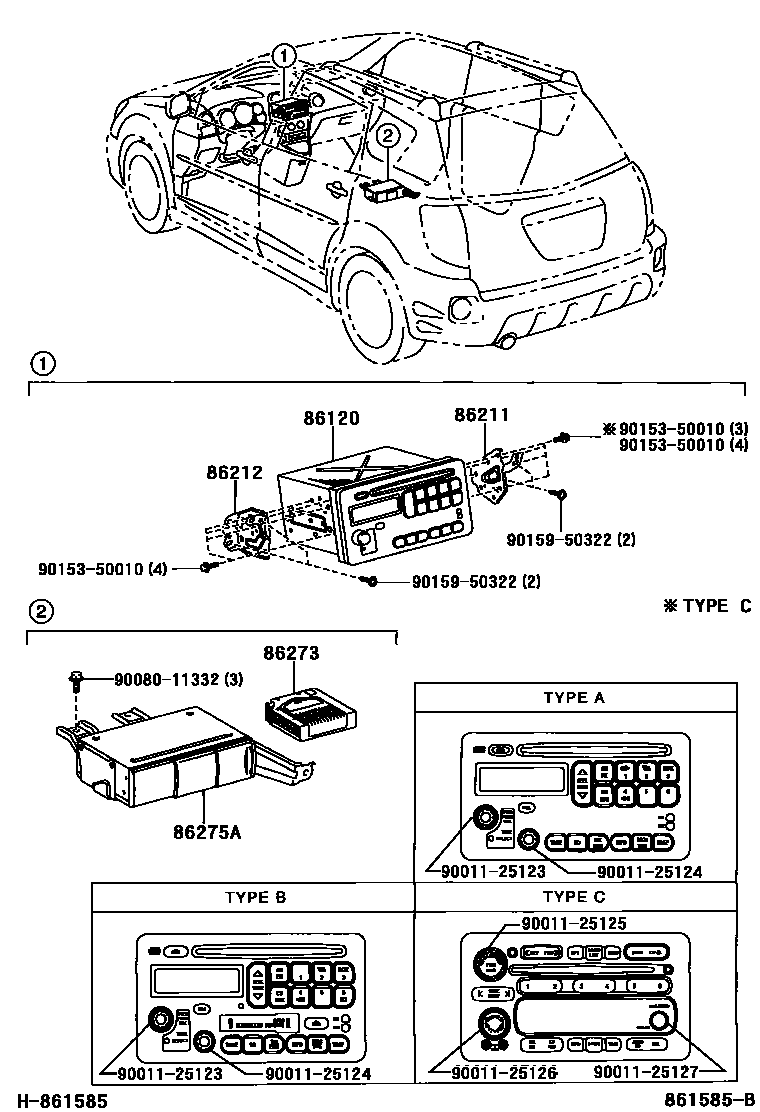

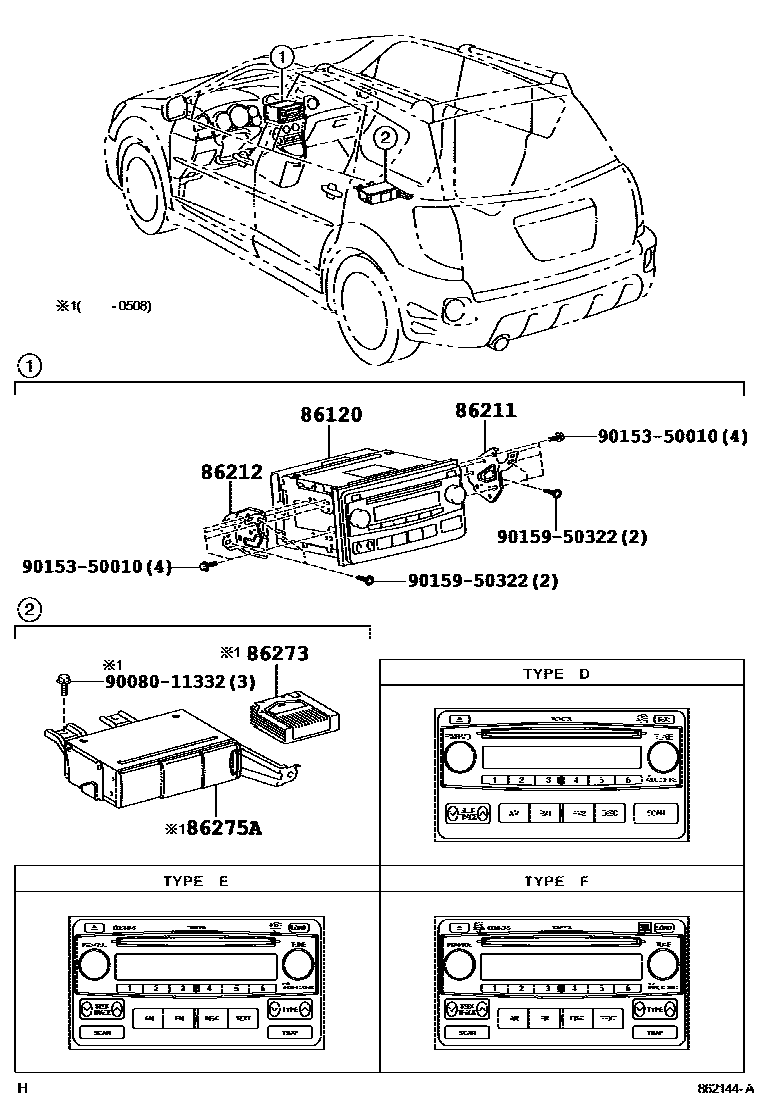

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04066 |
| 86011Q | radio settings phase modulator | 90980-04132 · 90980-04154 |
| 86011R | radio settings phase modulator | 90980-04164 |
| 86120 | Radio assembly | 86120-02270 · 86120-02280 · 86120-02330 · 86120-02340 · 86120-02350 · 86120-02400 · 86120-02410 · 86120-02420 · 86120-02430 · 86120-02440 · 86120-02450 |
| 86120A | Radio switch knob | 90011-25144 |
| 86211 | No. 1 radio bracket | 86211-01060 · 86211-02110 · 86211-02130 |
| 86212 | No. 2 radio bracket | 86212-01060 · 86212-02110 · 86212-02140 |
| 86273 | CD bin | 86273-01010 |
| 86275A | disc changer | 86270-01010 |
| 86280 | Stereo parts amplifier assembly | 86280-02010 · 86280-02020 |
