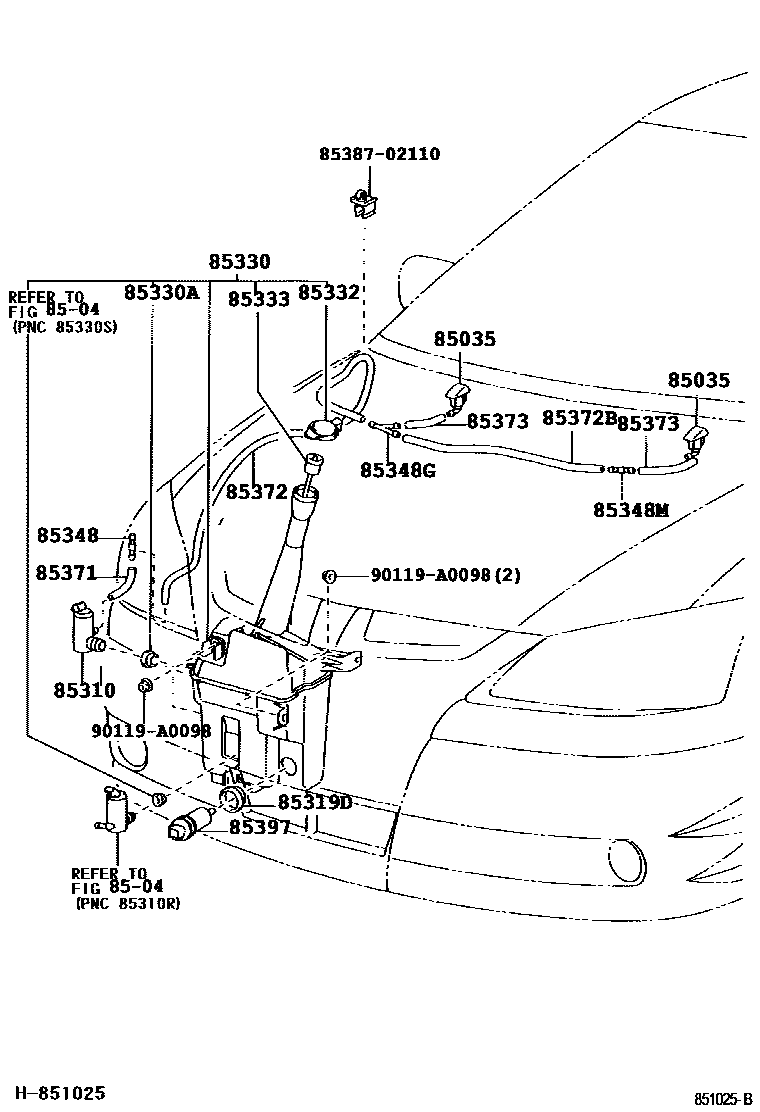

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-02100 · 85381-02110 · 85381-12280 · 85381-12290 |
| 85310 | Windshield washer motor and pump assembly | 85330-12340 · 85330-AA010 |
| 85319D | front washer seal | 85319-AA020 |
| 85330 | Windshield washer fluid tank assembly | 85315-01030 · 85315-01031 · 85315-01040 · 85315-01041 · 85315-02110 · 85315-02111 · 85315-02120 · 85315-02121 |
| 85330A | Windshield washer fluid tank bushing | 90068-32002 |
| 85332 | Windshield washer fluid tank cap | 85316-AA020 |
| 85333 | Windshield washer fluid tank filter | 85312-02010 · 85312-02020 |
| 85348 | Windshield washer hose connector No. 1 | 85317-02300 · 85375-10260 |
| 85348G | Windshield washer hose connector No. 2 | 85348-14390 · 85378-02110 |
| 85348M | No. 3 windshield washer hose connector | 85317-02300 · 85375-10260 |
| 85371 | Windshield washer hose (from motor to connector) | 90068-33026 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90068-33031 |
| 85372B | Windshield washer hose No. 2 (from connector to connector) | 90068-33030 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90068-33025 · 90068-33032 |
| 85397 | Liquid level warning switch assembly | 85397-AA020 · 85397-AA040 |
