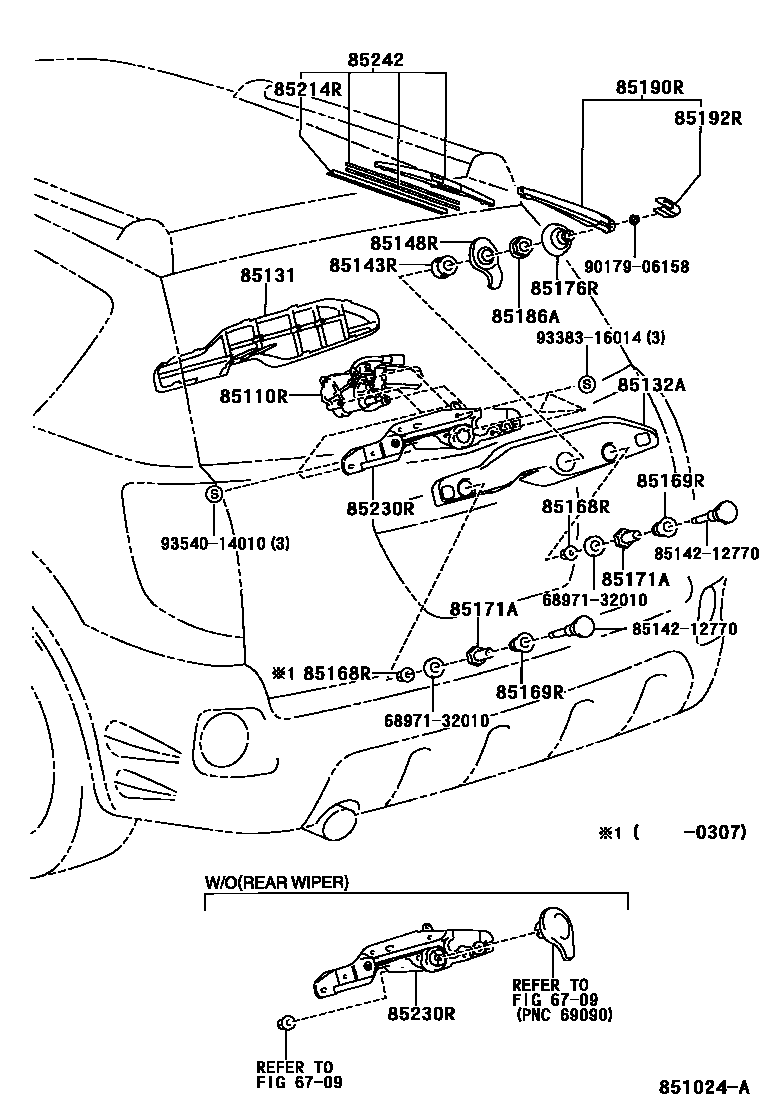

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-01020 · 85130-12840 |
| 85131 | Rear wiper motor cover | 85131-01010 |
| 85132A | Rear wiper shaft cover | 85132-01010 |
| 85143R | Rear wiper motor seal | 85143-32290 |
| 85148R | Rear wiper link pivot nut with gasket seal | 85133-32280 |
| 85168R | No. 1 rear wiper link pivot nut | 90179-06070 · 90179-06159 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-32280 |
| 85171A | Rear wiper linkage frame | 85171-32150 |
| 85176R | Rear wiper connecting rod cover | 85172-12600 |
| 85186A | Rear wiper link pivot nut | 85186-12171 |
| 85190R | Rear wiper arm assembly | 85241-42040 |
| 85192R | Rear wiper arm cover | 85292-28030 |
| 85214R | Rear wiper rubber strip | 85214-12310 |
| 85230R | Rear wiper bracket assembly | 85230-12170 · 85230-12180 |
| 85242 | Rear wiper blade | 85242-12090 |
