Toyota COROLLA 轮胎压力警告系统 — Figure 8435

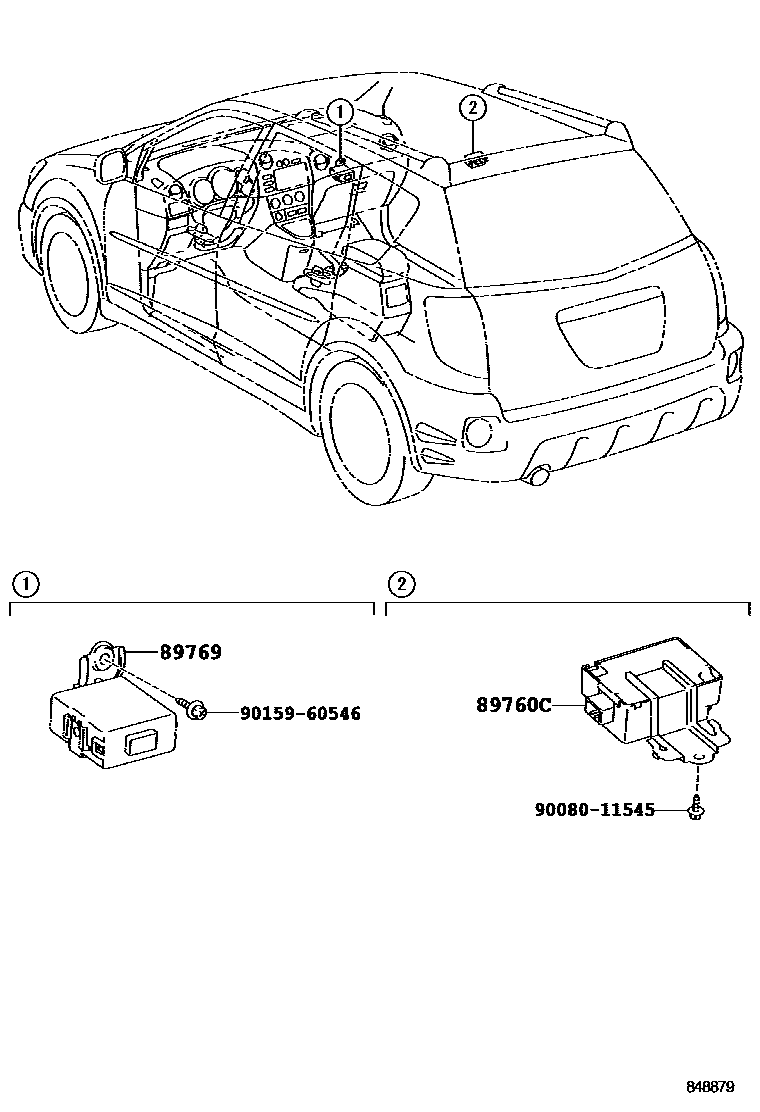

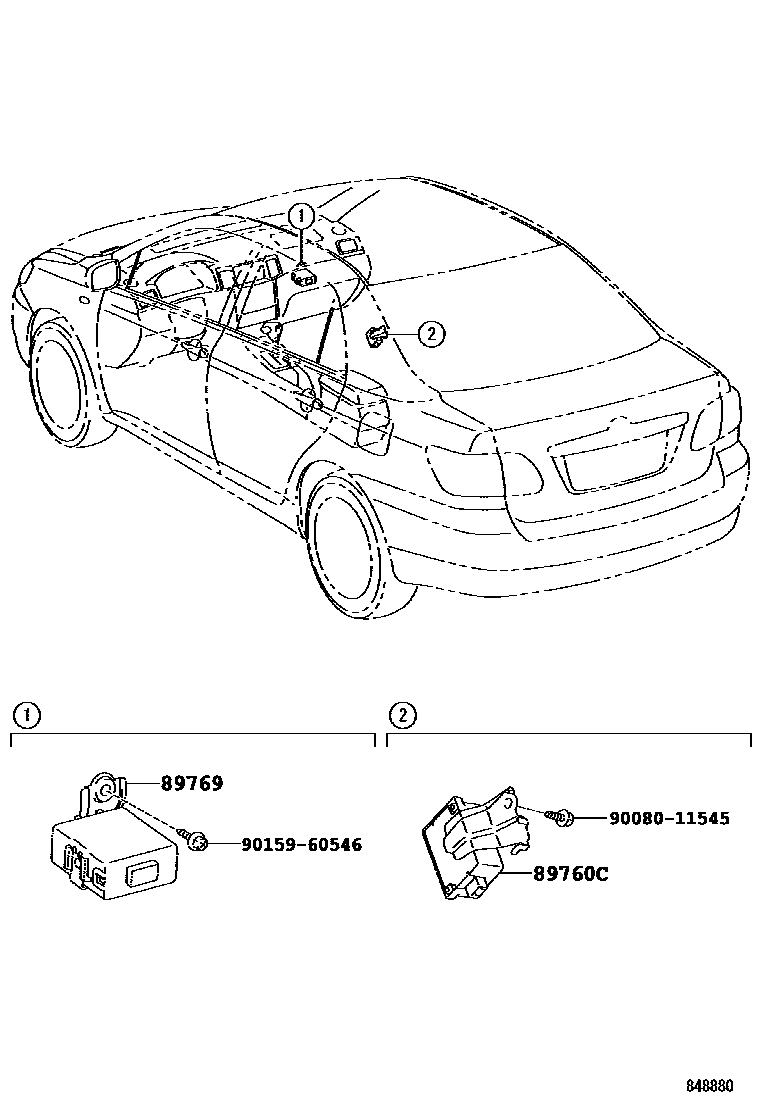

Toyota COROLLA EPC diagram 8435, 轮胎压力警告系统, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89760C | Tire pressure monitoring receiver assembly | 89760-02020 · 89760-02030 |
| 89769 | Tire pressure monitoring ECU | 89769-02030 |
