Toyota COROLLA 空气囊 — Figure 8421

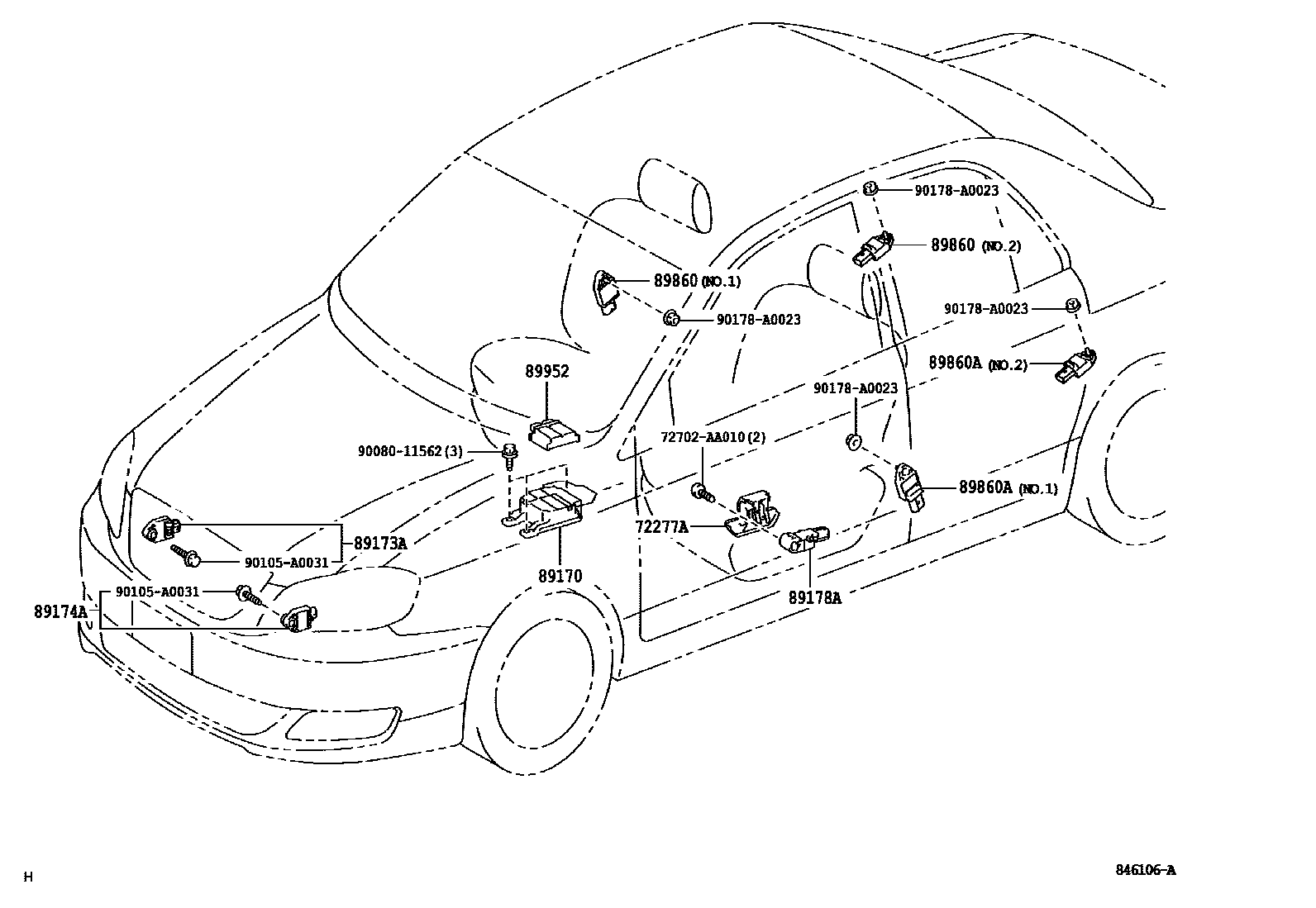

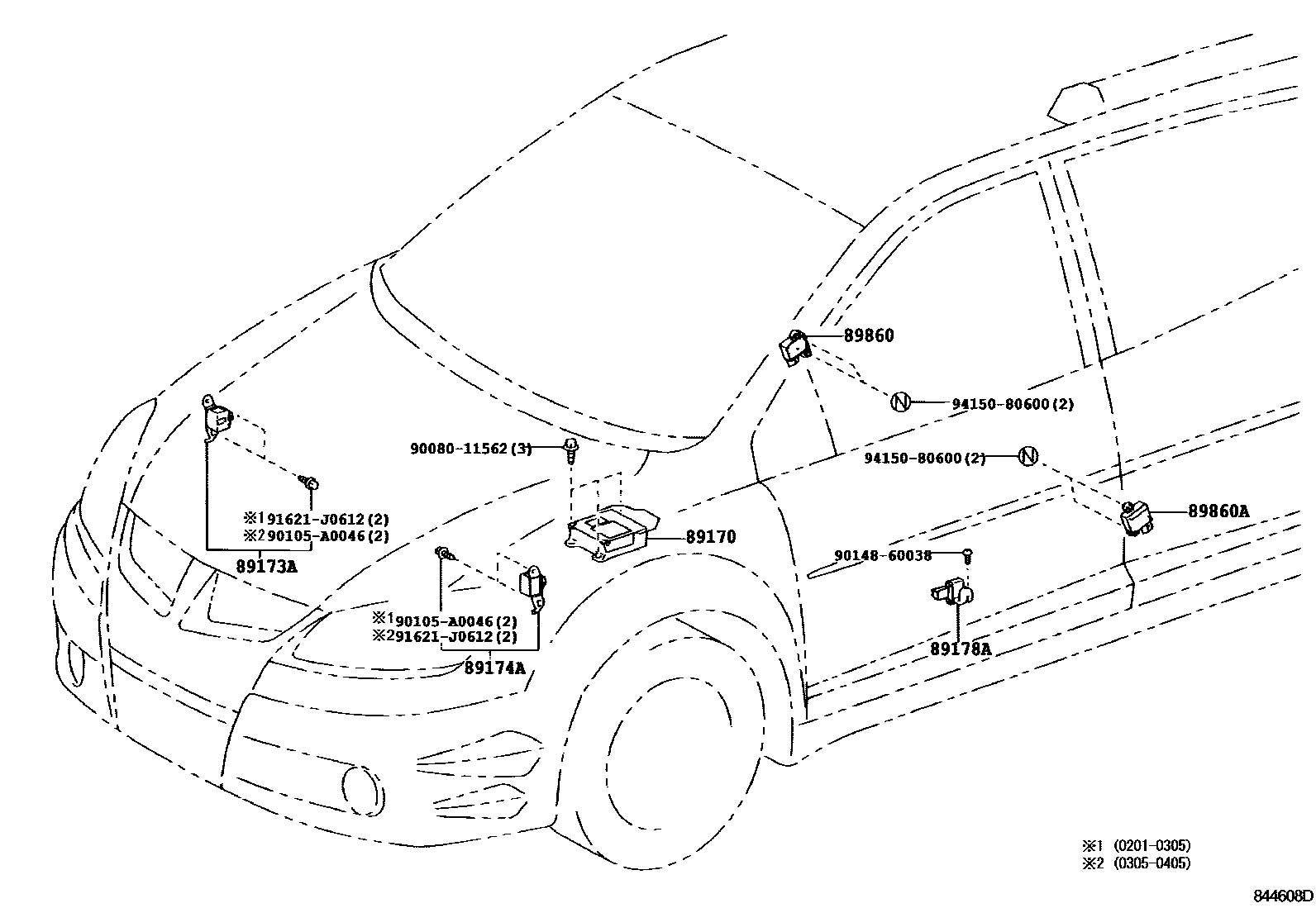

Toyota COROLLA EPC diagram 8421, 空气囊, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 72277A | Seat sliding position sensor protective cover | 72277-02010 · 72277-33010 |
| 89170 | air bag sensor assembly | 89170-01010 · 89170-01020 · 89170-01060 · 89170-01070 · 89170-02190 · 89170-02200 · 89170-02410 · 89170-02411 · 89170-02420 · 89170-02421 |
| 89173A | Right front air bag sensor | 89173-09120 · 89173-19295 · 89173-19305 |
| 89174A | Left front air bag sensor | 89173-09120 · 89174-19095 · 89174-19105 |
| 89178A | Seat position air bag sensor | 89178-06020 · 89178-06030 · 89178-33020 |
| 89860 | Right side airbag sensor assembly | 89831-02030 · 89831-02040 · 89860-02040 |
| 89860A | Left side air bag sensor assembly | 89831-02030 · 89831-02040 · 89860-02040 |
| 89952 | Occupant detection ECU | 89952-33010 · 89952-33011 · 89952-35011 |
