Toyota COROLLA ABS 和 VSC — Figure 8414

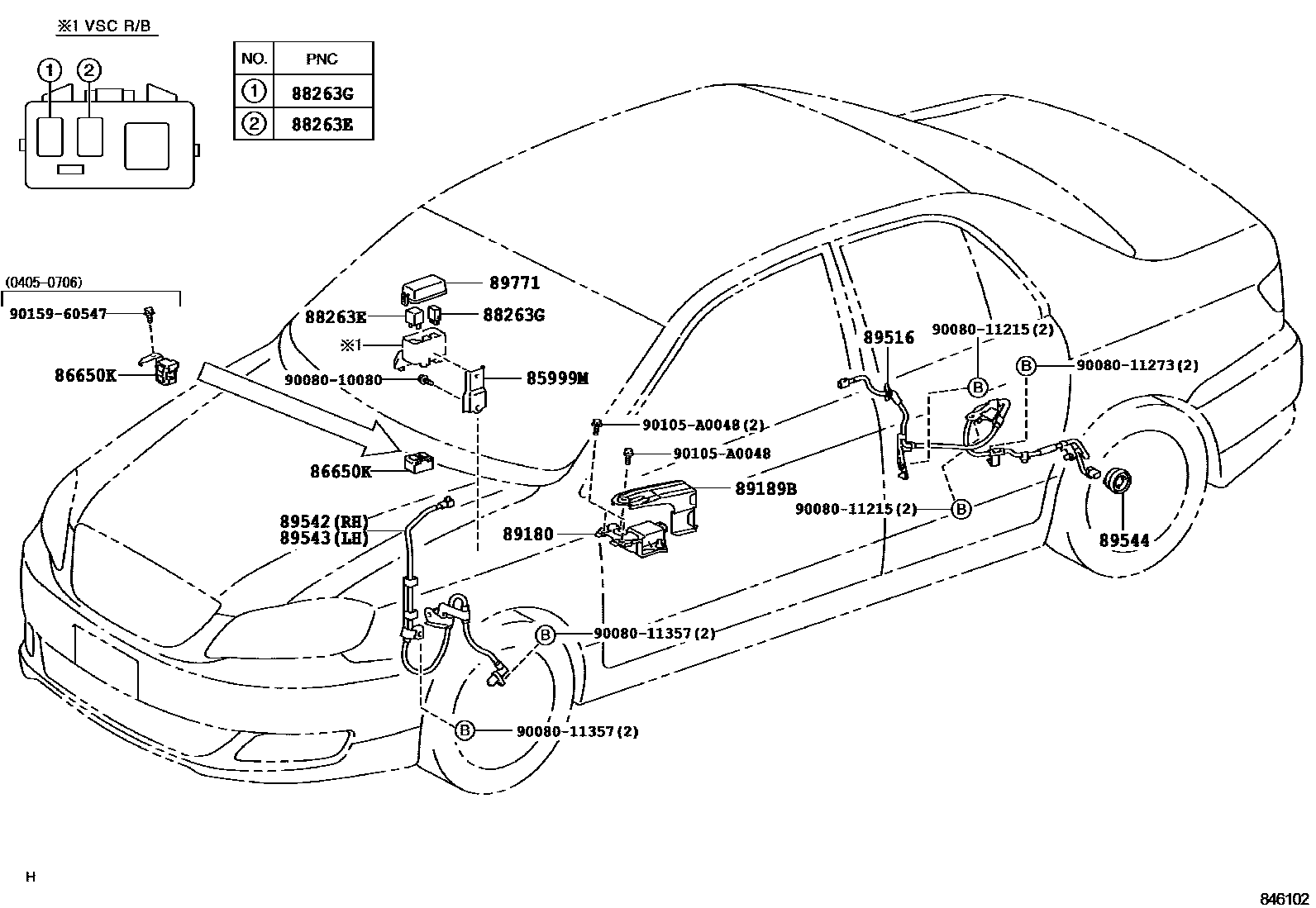

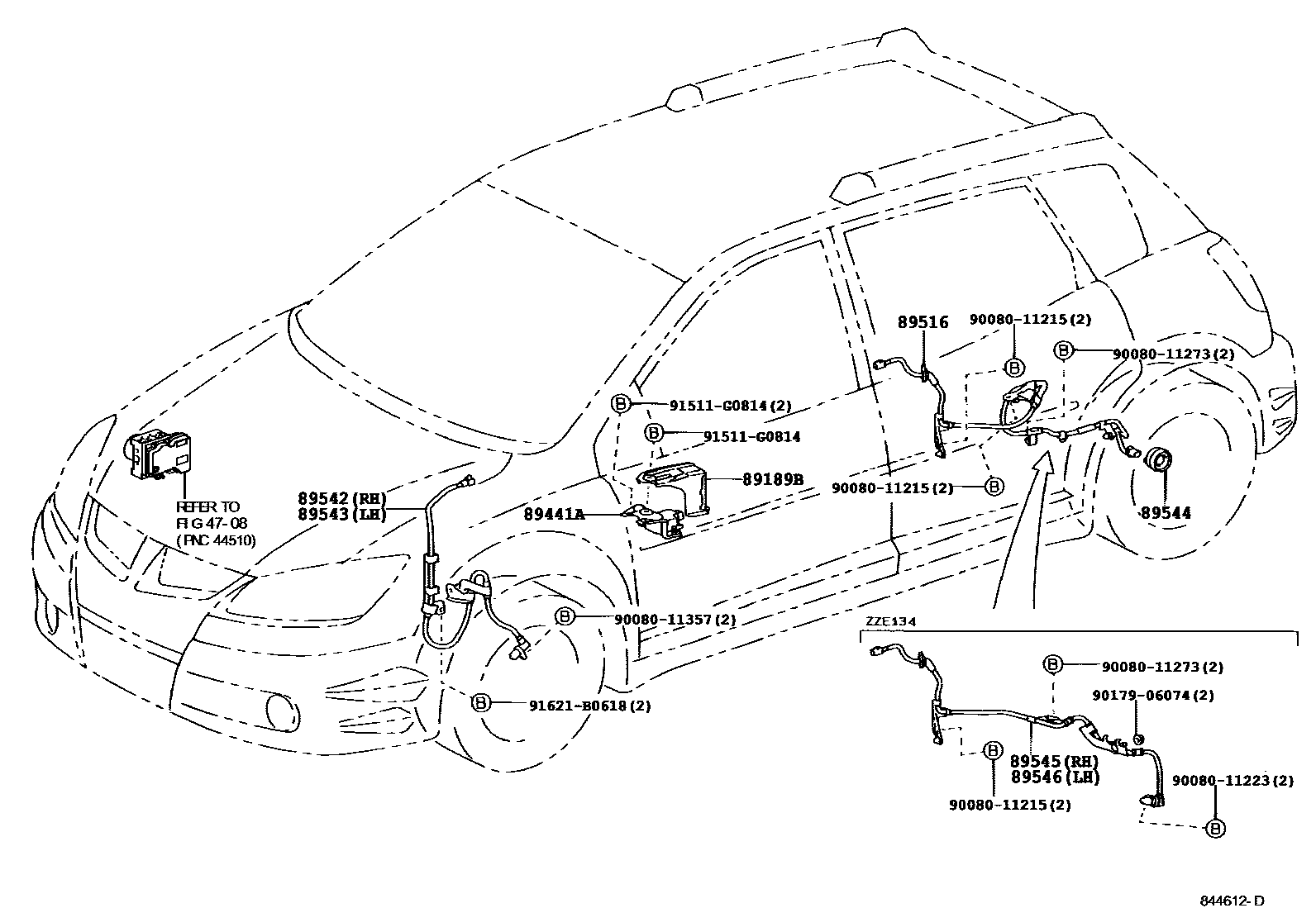

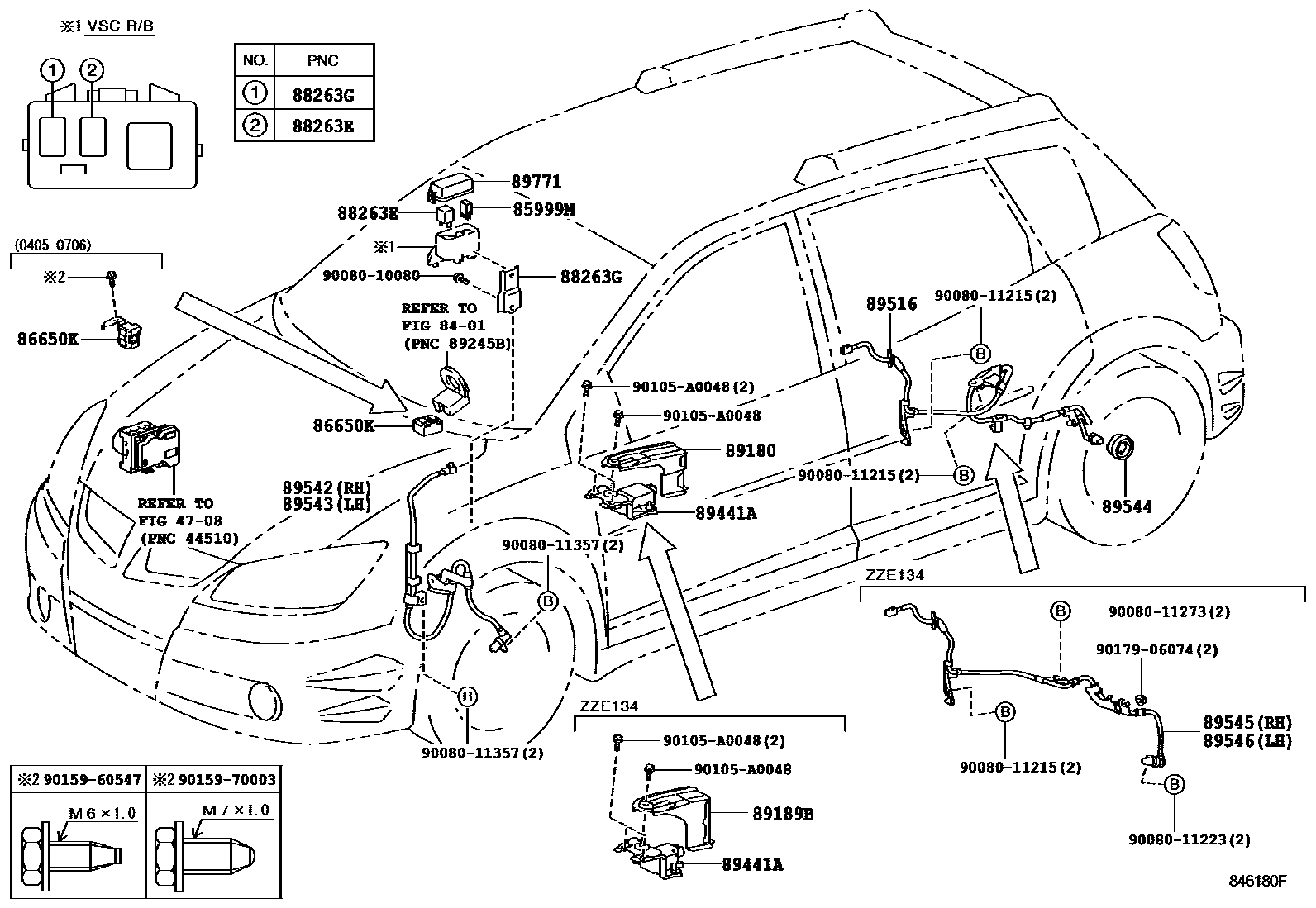

Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-12380 |
| 86650K | Anti-skid control buzzer assembly | 86650-12070 · 86652-48010 |
| 88263E | No. 2 anti-skid control relay | 88263-21010 |
| 88263G | Anti-skid control relay | 88263-08010 |
| 89180 | Yaw rate sensor assembly | 89180-12020 |
| 89189B | Yaw rate sensor bracket | 89189-12020 · 89189-12060 |
| 89441A | deceleration sensor | 89440-12080 · 89440-12090 |
| 89516 | Anti-skid control sensor wiring harness | 89516-12010 · 89516-12040 |
| 89542 | Right front wheel speed sensor | 89542-02050 |
| 89543 | Left front wheel speed sensor | 89543-02050 |
| 89544 | Anti-skid control sensor | 89544-02020 |
| 89545 | Right rear wheel speed sensor | 89545-01010 |
| 89546 | Left rear wheel speed sensor | 89546-01010 |
| 89771 | ABS relay box upper cover | 89771-21020 |
