Toyota COROLLA indicator light — Figure 8302

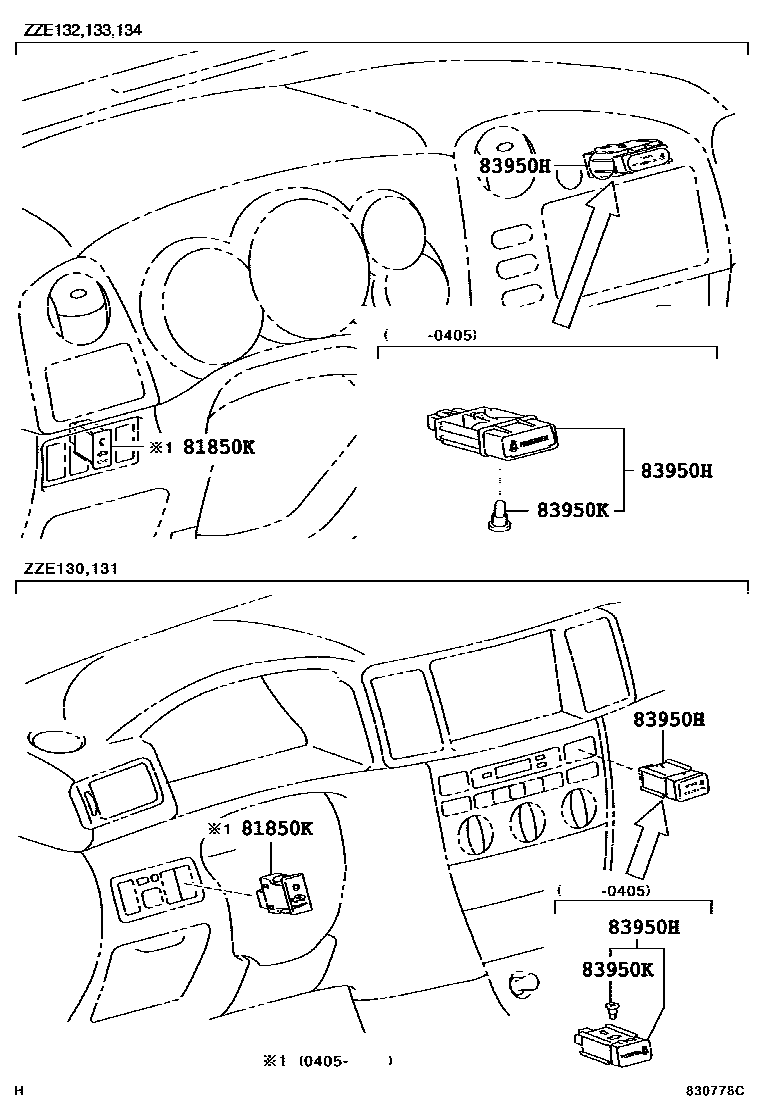

Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81850K | Safety indicator light assembly | 81850-12260 |
| 83950H | Passenger seat belt warning light assembly | 83950-01010 · 83950-01030 · 83950-02010 · 83950-02030 |
| 83950K | Passenger seat belt warning light bulb | 90011-01021 |
