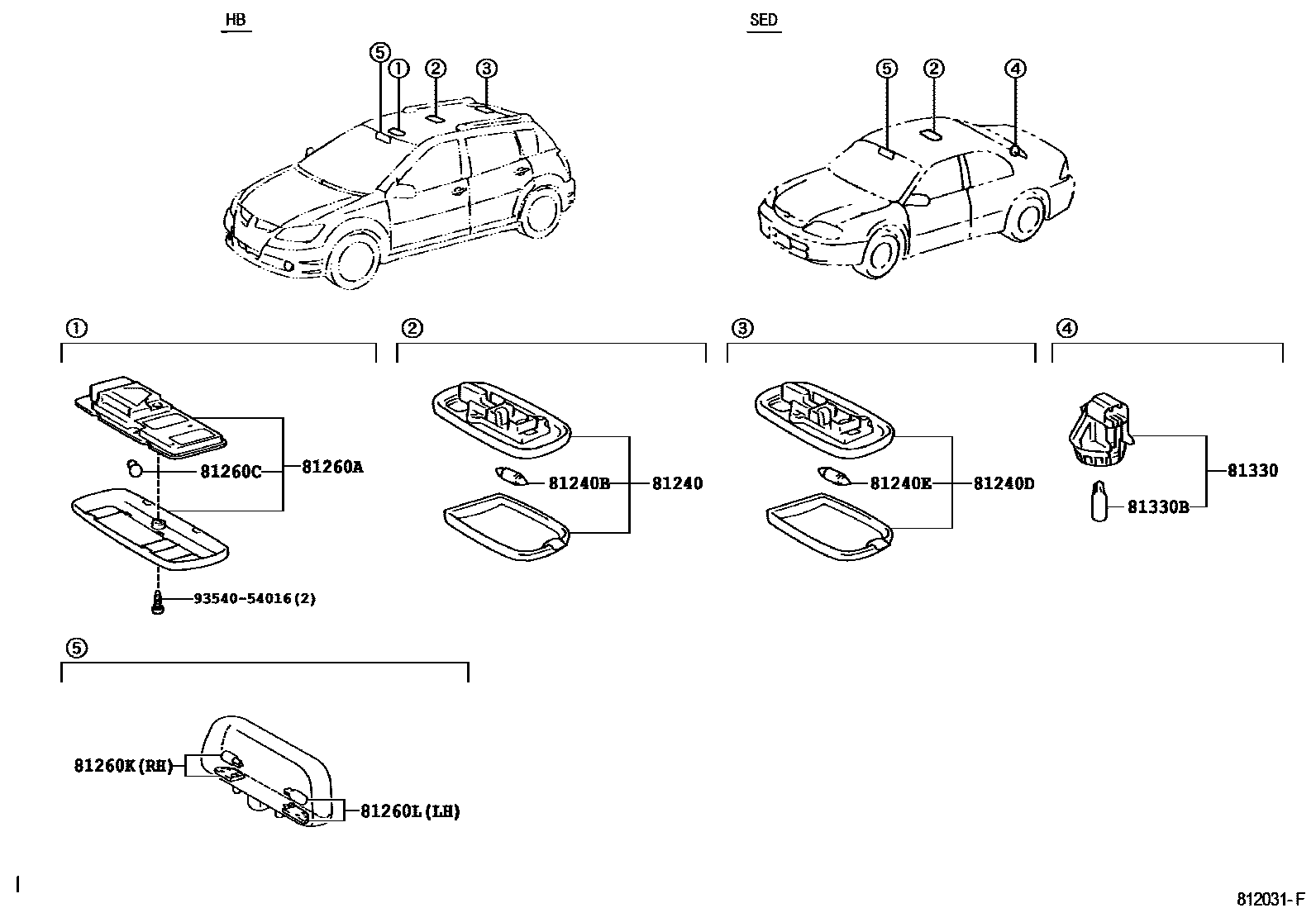

Toyota COROLLA 车内灯 — Figure 8121
Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240 | No. 1 interior light assembly | 81240-02060 |
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81240D | No. 2 interior light assembly | 81240-02060 |
| 81240E | Interior light bulb No. 2 | 90981-14011 |
| 81260C | Light bulb (for reading lamp) | 90981-12014 |
| 81260K | Right reading lamp shade and bulb | 81260-12130 |
| 81260L | Left reading lamp shade and bulb | 81260-12140 |
| 81330 | No. 1 trunk light assembly | 81330-02020 |
| 81330B | trunk light bulb | 90080-81059 |
