Toyota COROLLA 高位刹车灯 — Figure 8117

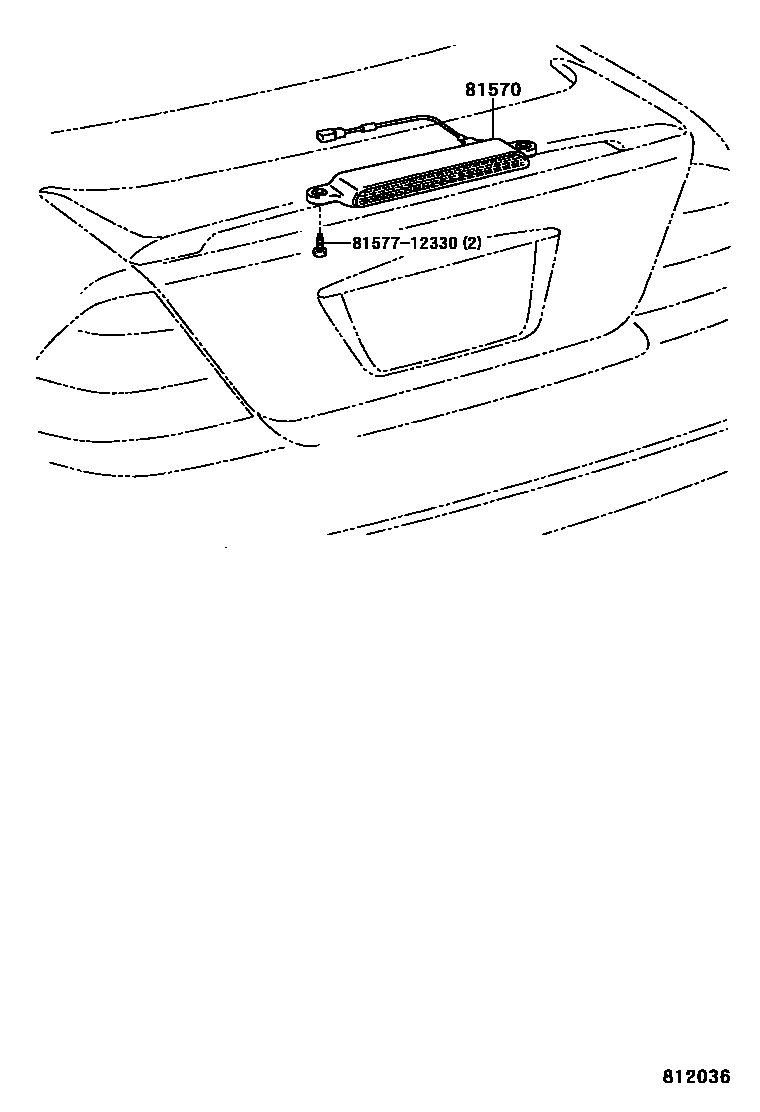

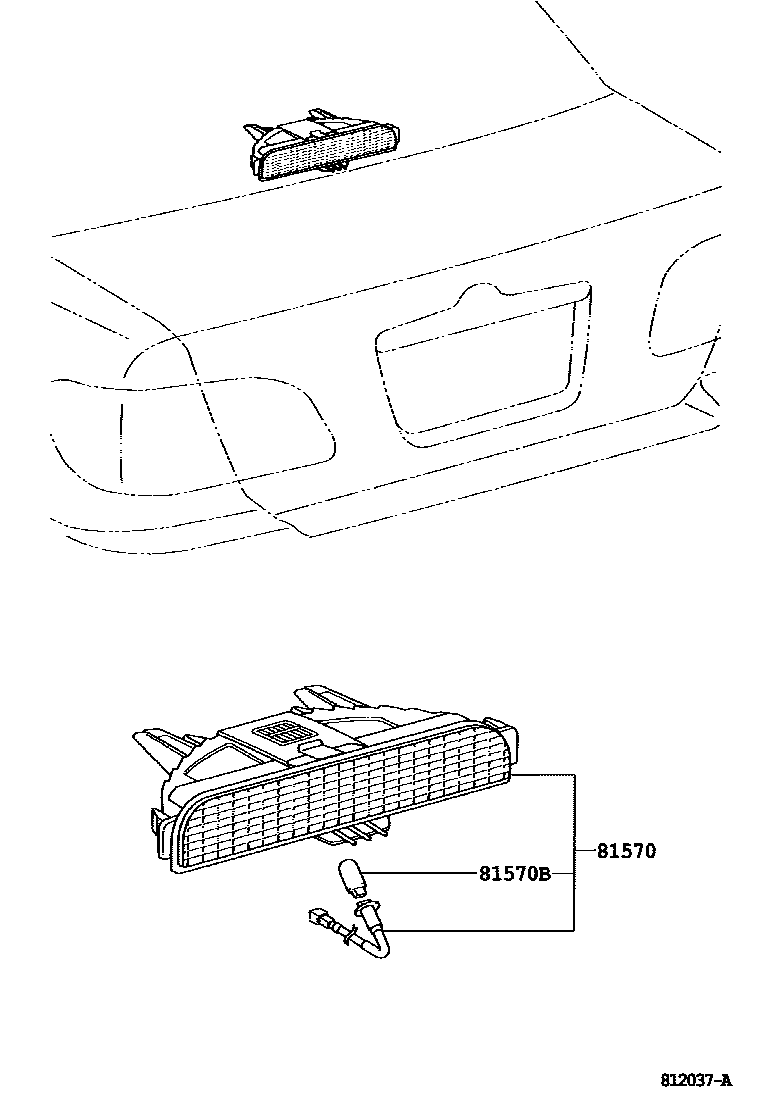

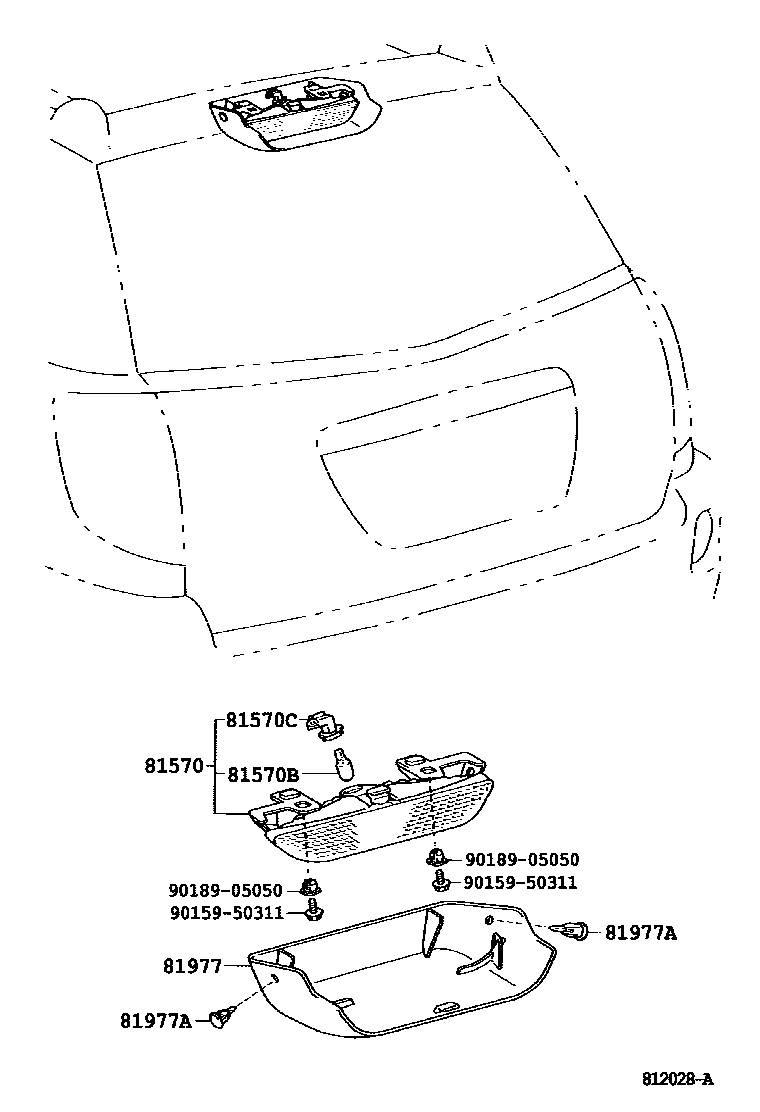

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-01070 · 81570-02130 · 81570-12360 · 81570-12361 |
| 81570B | Bulb (for center brake light) | 90080-81065 |
| 81570C | Central brake light lamp holder | 90075-60037 |
| 81977 | Central brake light cover | 81977-01060 |
